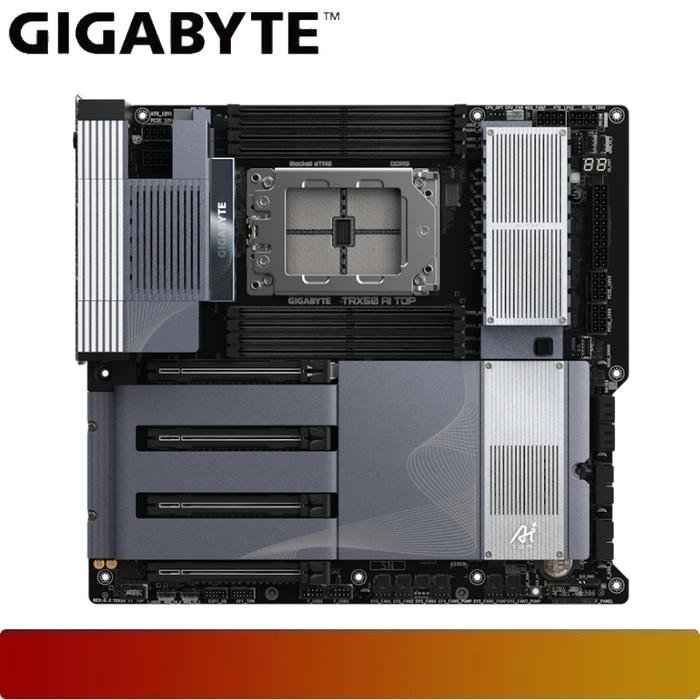

GIGABYTE TRX50 AI TOP

GIGABYTE TRX50 AI TOP

Rp 19.469.000

Brand: Gigabyte

SKU: 889523044667

Estimasi Berat: 6.0 kg

Category: Motherboard

Sub Category: for AMD Processor

AMD TRX50, 8x DDR5 UDIMM, Maximum Memory 2TB, Total 4 Slot NVMe, WiFi 7, Bluetooth 5.3, Support Desktop Processors Socket AMD sTR5, E-ATX Form Factor

1 left
Product description
Chipset AMD TRX50 Chipset
CPU Socket Socket sTR5 (Supports AMD Ryzen™ Threadripper™ PRO 7000 Series and Threadripper™ 7000 Series Processors)
Form Factor ATX (30.5cm x 26.9cm)
Memory (DDR5)
  1. 4 x DDR5 DIMM sockets, Quad Channel memory architecture
  2. Memory Speed Support: DDR5 up to 7800 (O.C.) MT/s
  3. Supports ECC R-DIMM (Registered DIMM)
  4. Max. capacity of system memory: 1TB (tergantung konfigurasi DIMM)
Onboard Graphics

*No integrated graphics ports; requires dedicated graphics card (dGPU).

Expansion Slots
  1. 3x PCI Express x16 slots (**PCIe 5.0**, running at x16)
Audio Realtek® Audio CODEC (ALC1220-VB), 7.1-Channel High Definition Audio, Supports S/PDIF Out
Storage
  1. 3x M.2 slots (1x **PCIe 5.0** x4 from CPU; 2x **PCIe 4.0** x4 from Chipset)
  2. 4x SATA 6Gb/s ports
Networking
  1. LAN: 1x **10GbE** LAN (Aquantia®) + 1x **2.5GbE** LAN (Intel®)
  2. Wireless/Bluetooth: Wi-Fi 7 (802.11be) & **BLUETOOTH 5.3**
USB Ports

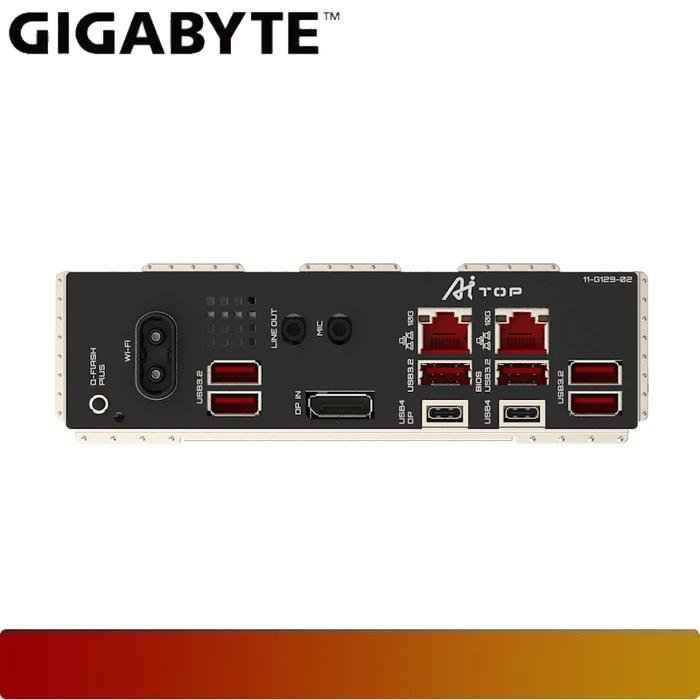

  1. Rear Panel: 2x **USB 3.2 Gen 2x2** Type-C® (20Gbps), 4x USB 3.2 Gen 2 Type-A (10Gbps), 4x USB 3.2 Gen 1 Type-A (5Gbps)
  2. Internal Headers: 1x **USB 3.2 Gen 2x2 Type-C® header** (20Gbps), 1x USB 3.2 Gen 1 header (supports 2 ports), 2x USB 2.0/1.1 headers (supports 4 ports)
DIY Features Q-Flash Plus Button, Multi-Key, EZ-Latch Plus (M.2), H/W Monitoring, Dual BIOS
Operating System Supports Windows 11 64-bit
Warranty

Limited 3 Years by NJT
