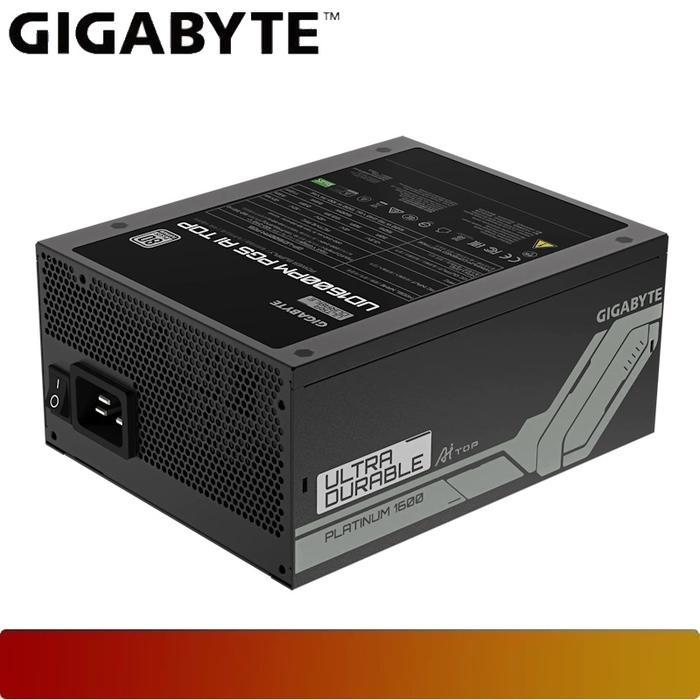

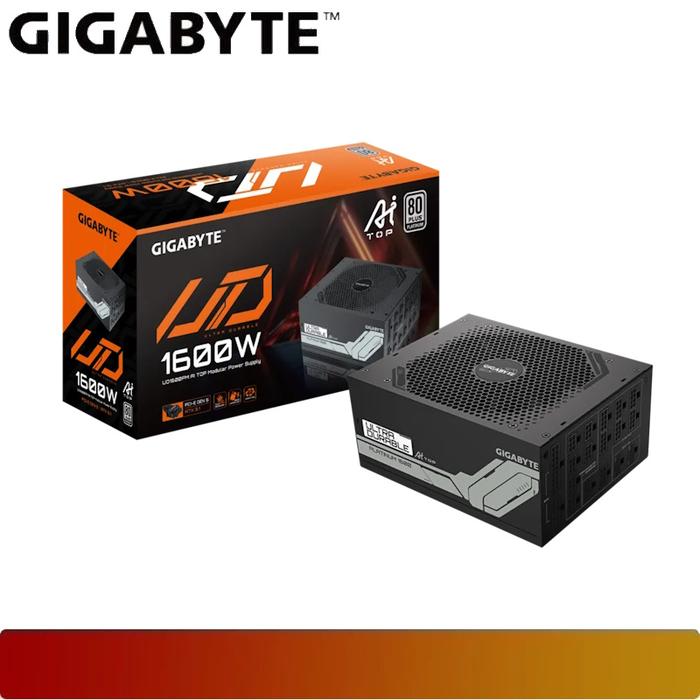

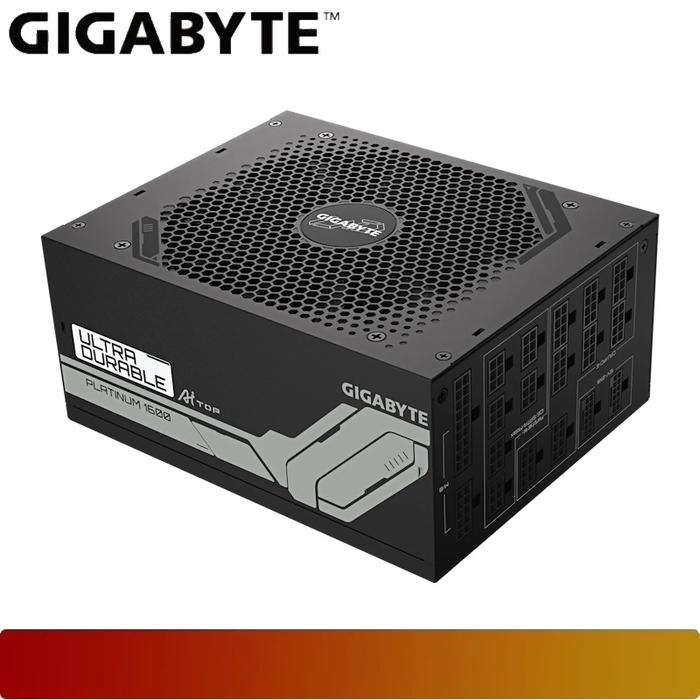

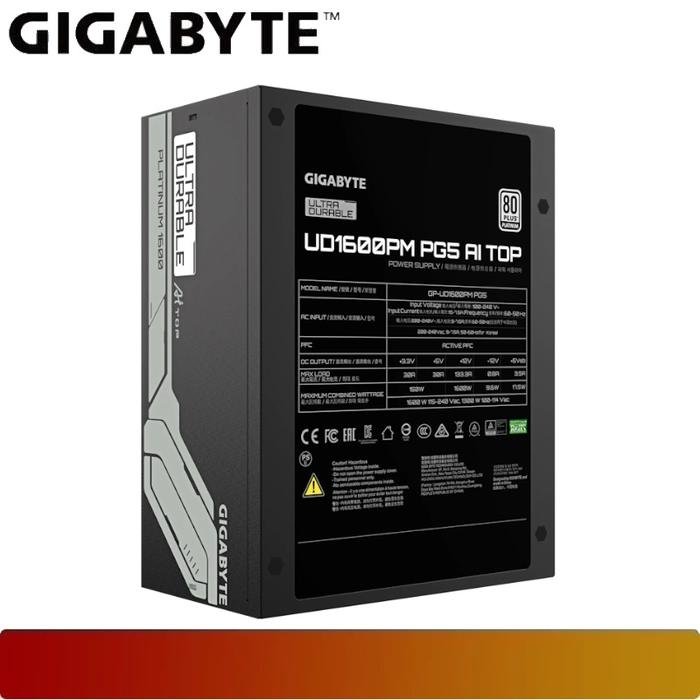

GIGABYTE UD1600PM PG5 AI TOP
Rp 7.499.000
Also available at:
Product description
| Model | GP-UD1600PM PG5 |
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-7.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1600W |
| Dimension | 150 x 190 x 86mm |

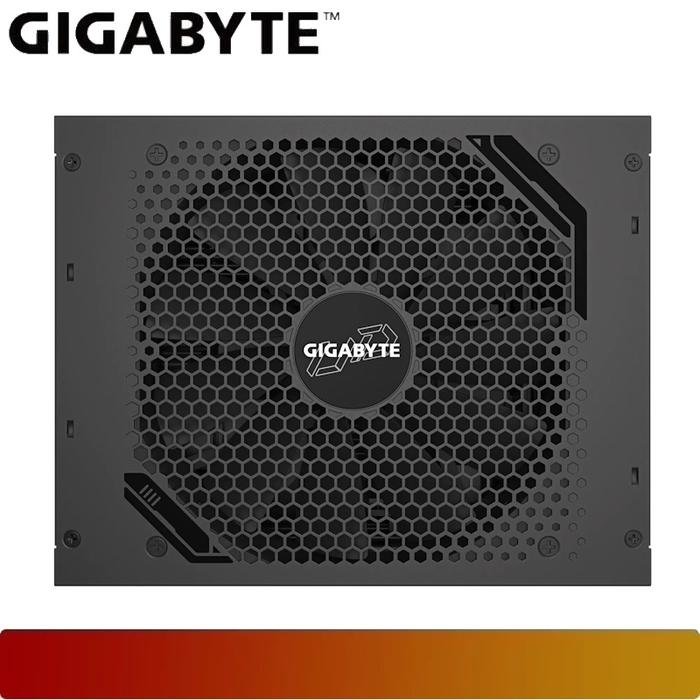

| Fan Type | 140mm Double Ball Bearing fan |
| 80 PLUS | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |

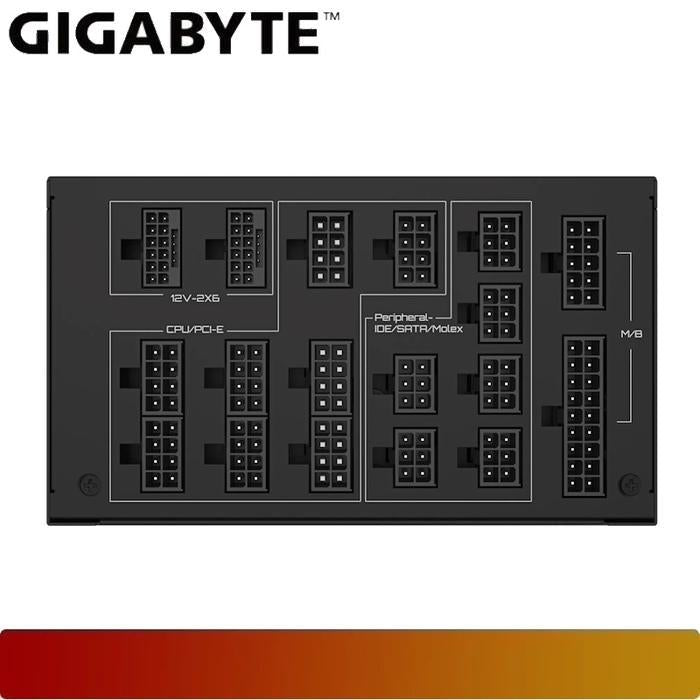

| Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCI-E 16 Pin x 2 : 700mm*2 PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2 PCI-E 6+2 Pin x 8 : 650mm+150mm*4 SATA x 16 : 650mm+150mm+150mm+150mm*4 4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
