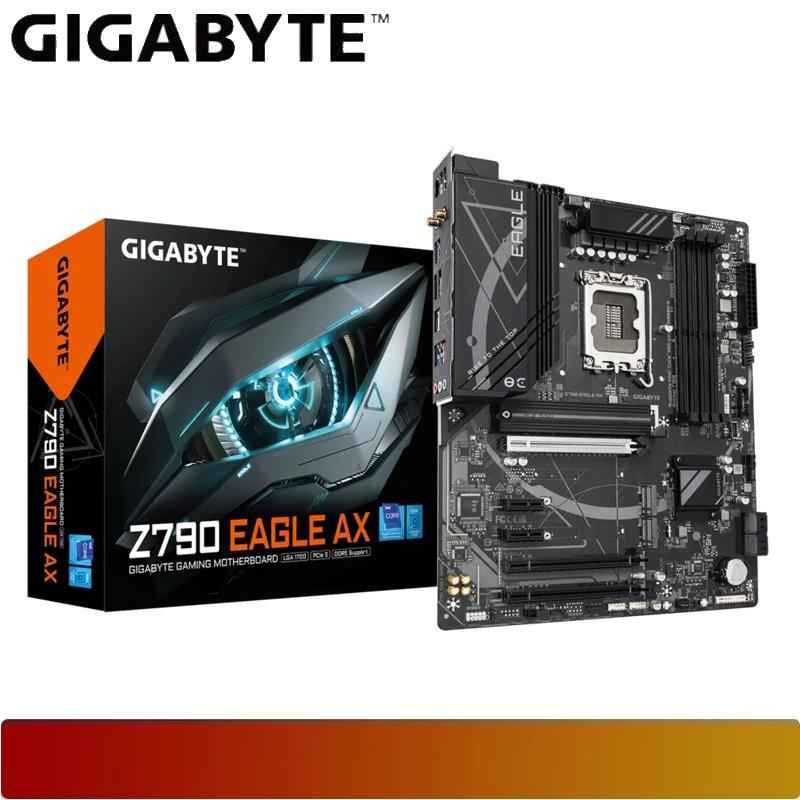

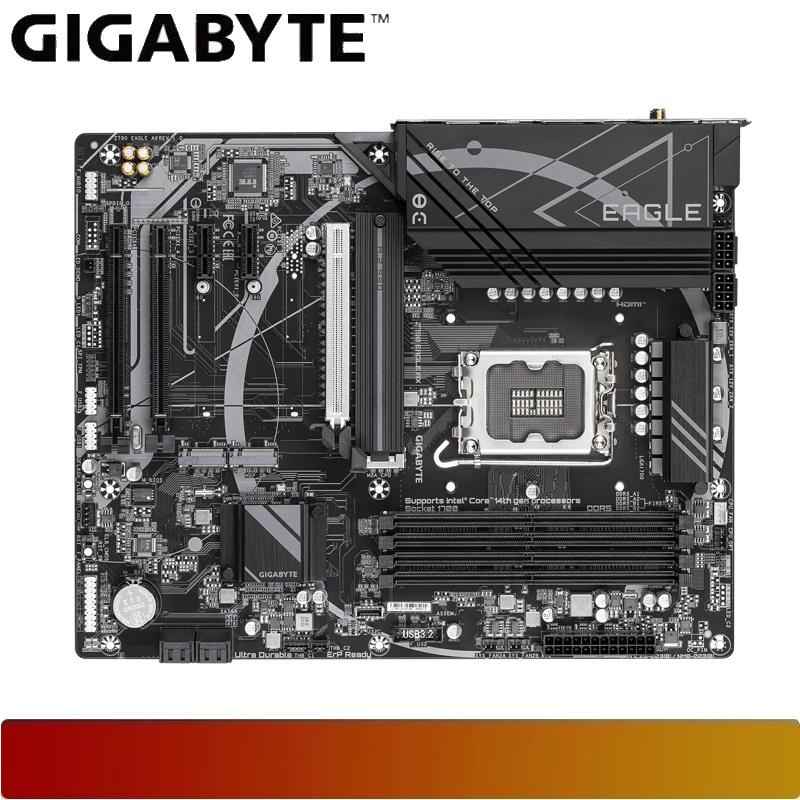

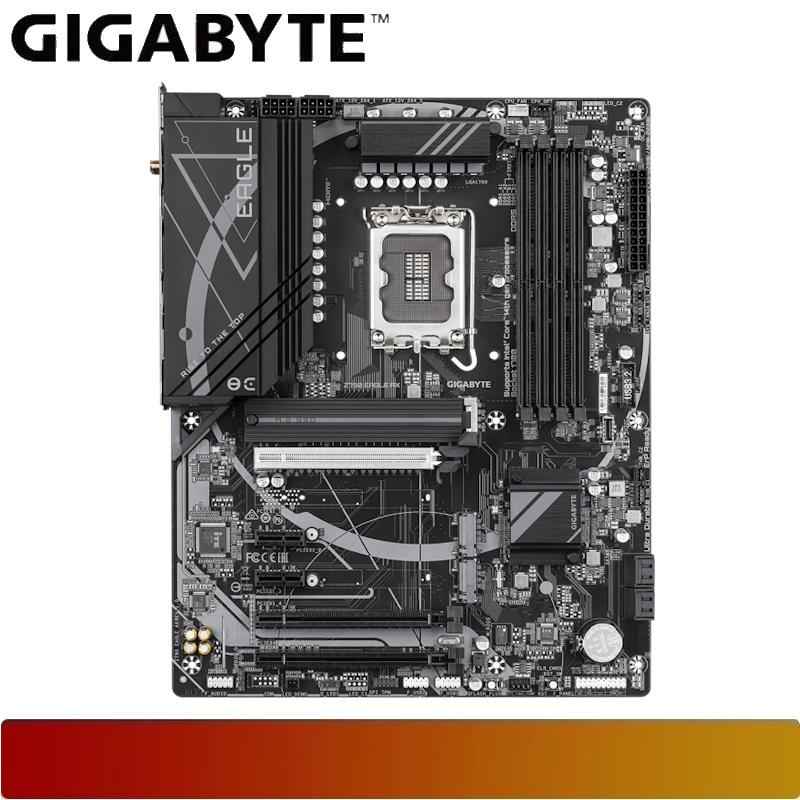

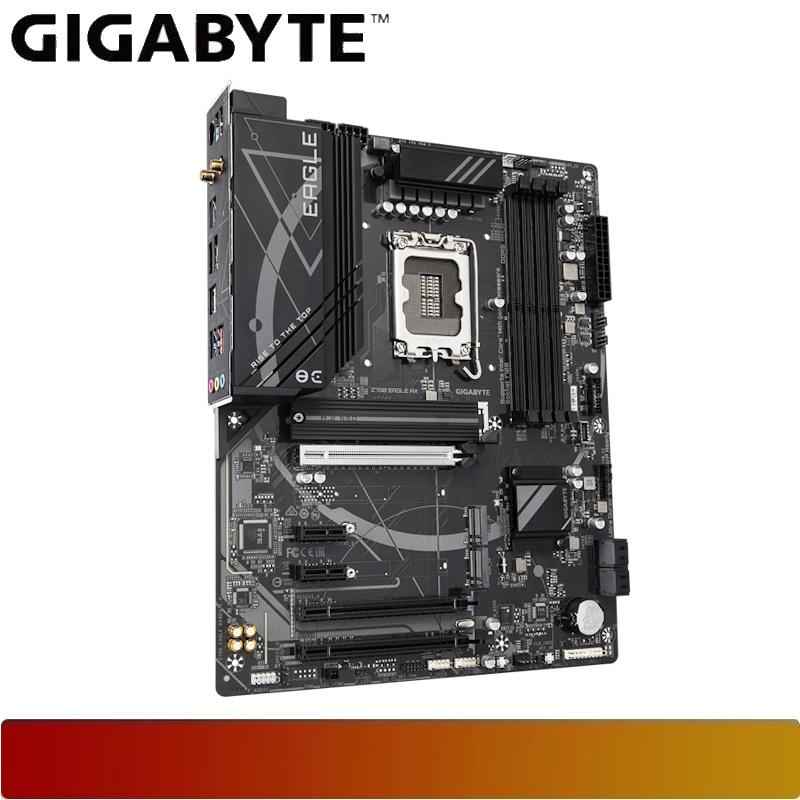

GIGABYTE Z790 EAGLE AX
  • GIGABYTE Z790 EAGLE AX
  • GIGABYTE Z790 EAGLE AX
  • GIGABYTE Z790 EAGLE AX
  • GIGABYTE Z790 EAGLE AX
  • GIGABYTE Z790 EAGLE AX
GIGABYTE Z790 EAGLE AX

GIGABYTE Z790 EAGLE AX

Rp 3.899.000

Brand: Gigabyte

SKU: 889523042120

Estimasi Berat: 3.1 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel Z790, 4x DDR5 UDIMM, Maximum Memory 256GB, Total 3 Slot NVMe, WiFi 6E, Bluetooth 5.3, Support Desktop Processors Socket Intel LGA 1700, ATX Form Factor
Out of stock

Also available at:

Product description
Chipset Intel® Z790 Express Chipset
CPU Socket LGA1700 (Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors)
Form Factor ATX (30.5cm x 24.4cm)
Memory (DDR5)
  1. 4 x DDR5 DIMM sockets, Maximum Memory Capacity 256 GB
  2. Memory Speed Support: DDR5 up to 7600+(O.C) MT/s (Varies by CPU generation)
  3. Supports Dual Channel memory architecture
  4. Supports ECC Un-buffered DIMM (non-ECC mode), non-ECC Un-buffered DIMM, and Extreme Memory Profile (XMP)
Onboard Graphics
  1. 1x HDMI port (Max 4096x2160@60 Hz, supports HDMI 2.1)
  2. 1x DisplayPort (Max 4096x2304@60 Hz, supports DisplayPort 1.2)

*Requires a processor with integrated graphics (iGPU).
Expansion Slots
  1. 1x PCI Express x16 slot (PCI_E1 Gen **PCIe 5.0**, running at x16 with Ultra Durable™ Armor)
  2. 2x PCI Express x16 slots (Gen PCIe 4.0/3.0, running at x4 and x1)
Audio Realtek® Audio CODEC, 7.1-Channel High Definition Audio, Supports S/PDIF Out
Storage
  1. 3x M.2 slots (All supporting **PCIe 4.0** x4/x2, one slot also supports SATA SSD)
  2. 4x SATA 6Gb/s ports
Networking
  1. LAN: Realtek® **2.5GbE** LAN chip
  2. Wireless/Bluetooth: Wi-Fi 6E 802.11ax & **BLUETOOTH 5.3**
RAID Support Supports RAID 0, RAID 1, RAID 5, and RAID 10 for both NVMe SSD and SATA storage devices.
USB Ports

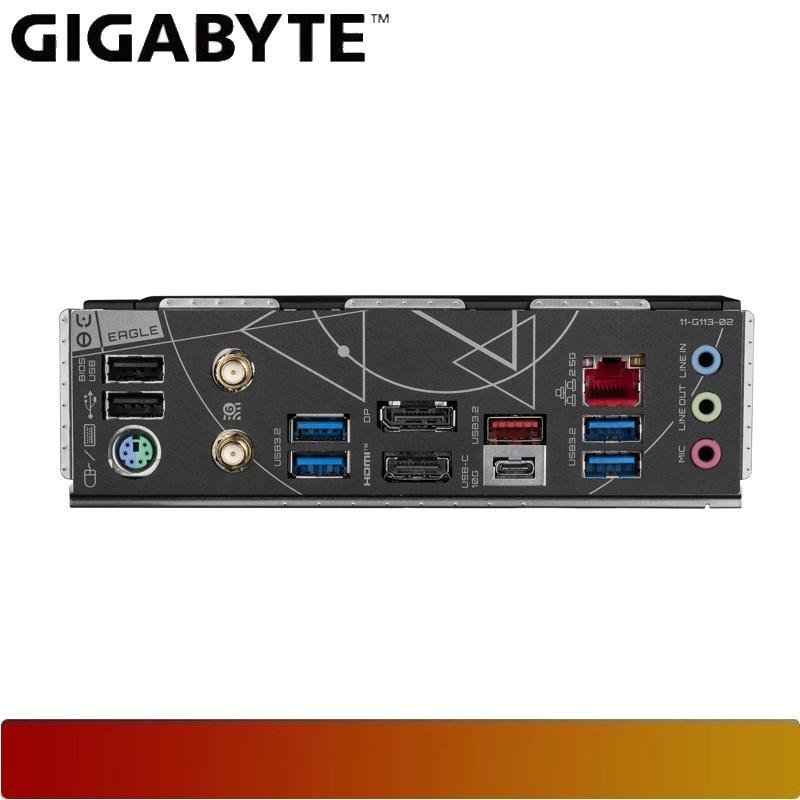

  1. Rear Panel: 1x **USB 3.2 Gen 2x2** Type-C®, 2x USB 3.2 Gen 2 Type-A (red), 3x USB 3.2 Gen 1 Type-A, 2x USB 2.0/1.1
  2. Internal Headers: 1x **USB 3.2 Gen 2 Type-C® header**, 2x USB 3.2 Gen 1 headers (supports 4 ports), 1x USB 2.0/1.1 header (supports 2 ports)
LED Feature Q-Flash Plus Button, Multi-Key, RGB FUSION Headers (2x Addressable, 2x RGB), H/W Monitoring
Operating System Supports Windows 11 64-bit
Warranty

Limited 3 Years by SMI or NJT
Product Info

Lihat lebih detail

Nano Komputer

.

Produk resmi dan original

.
