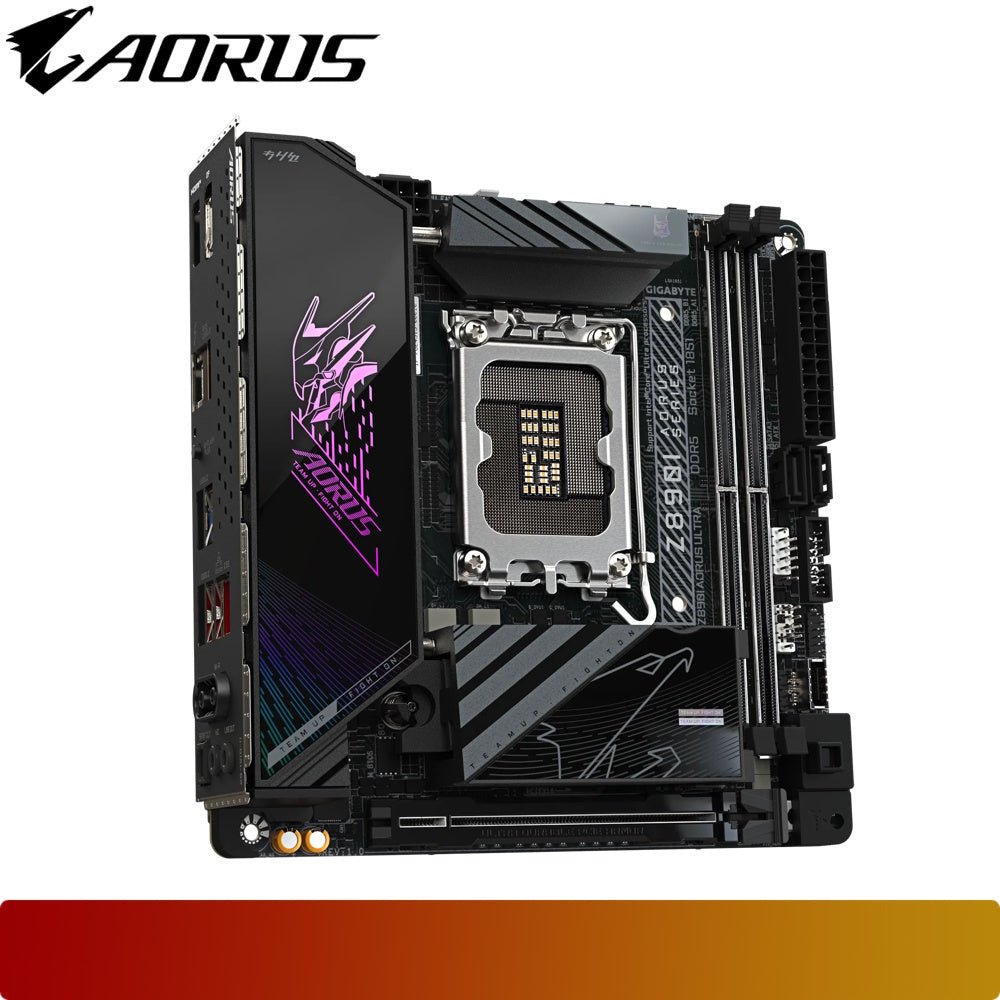

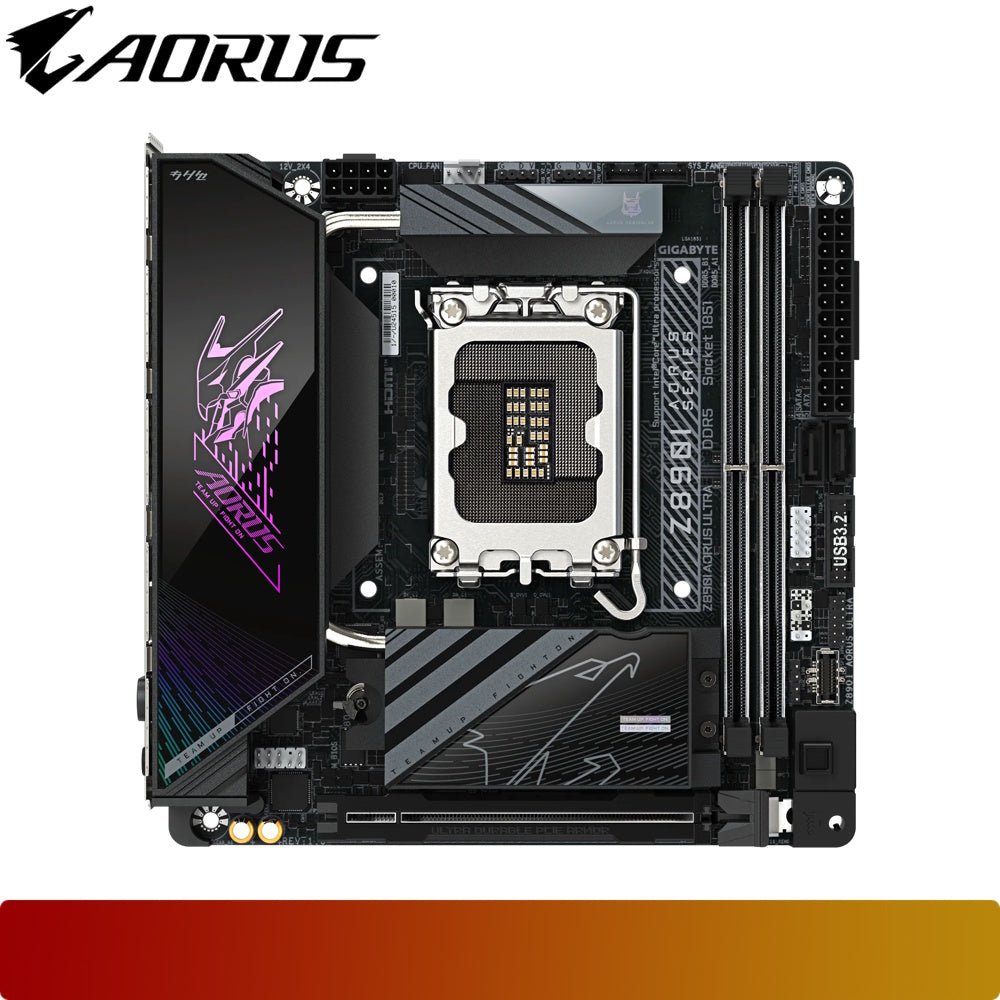

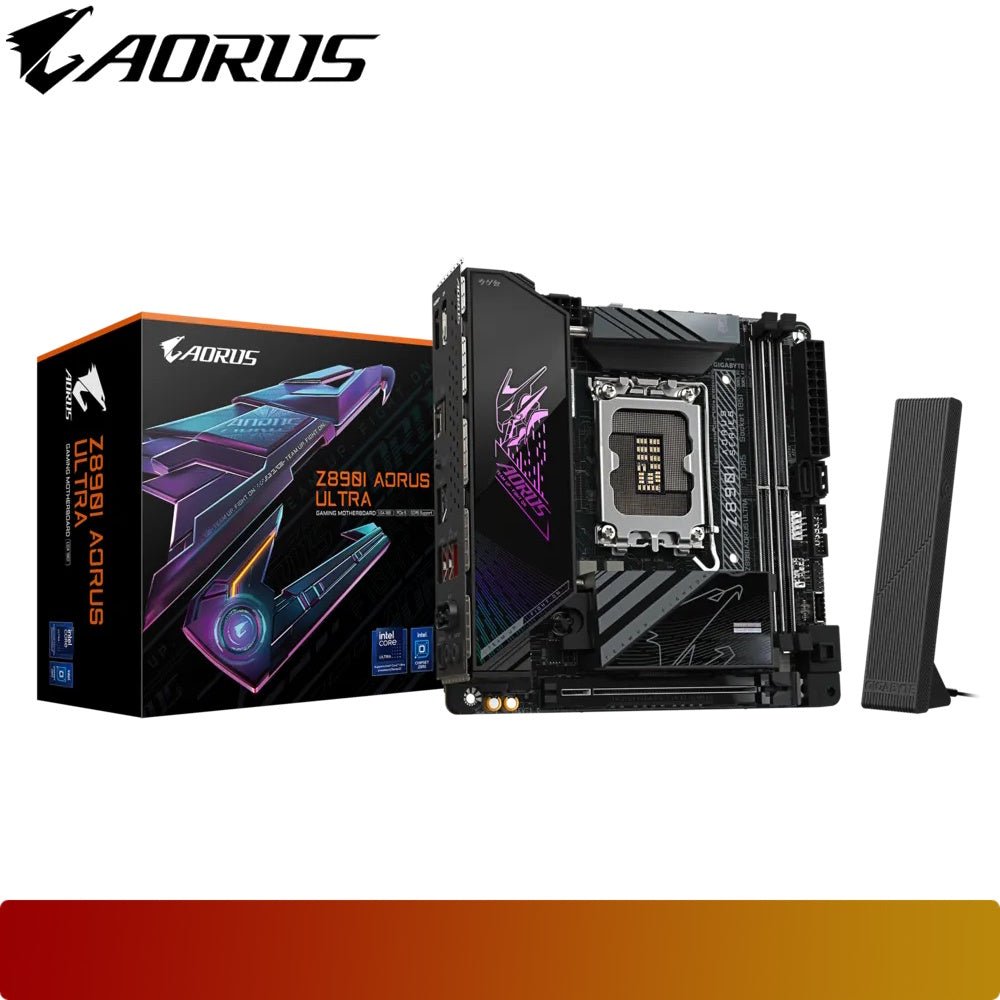

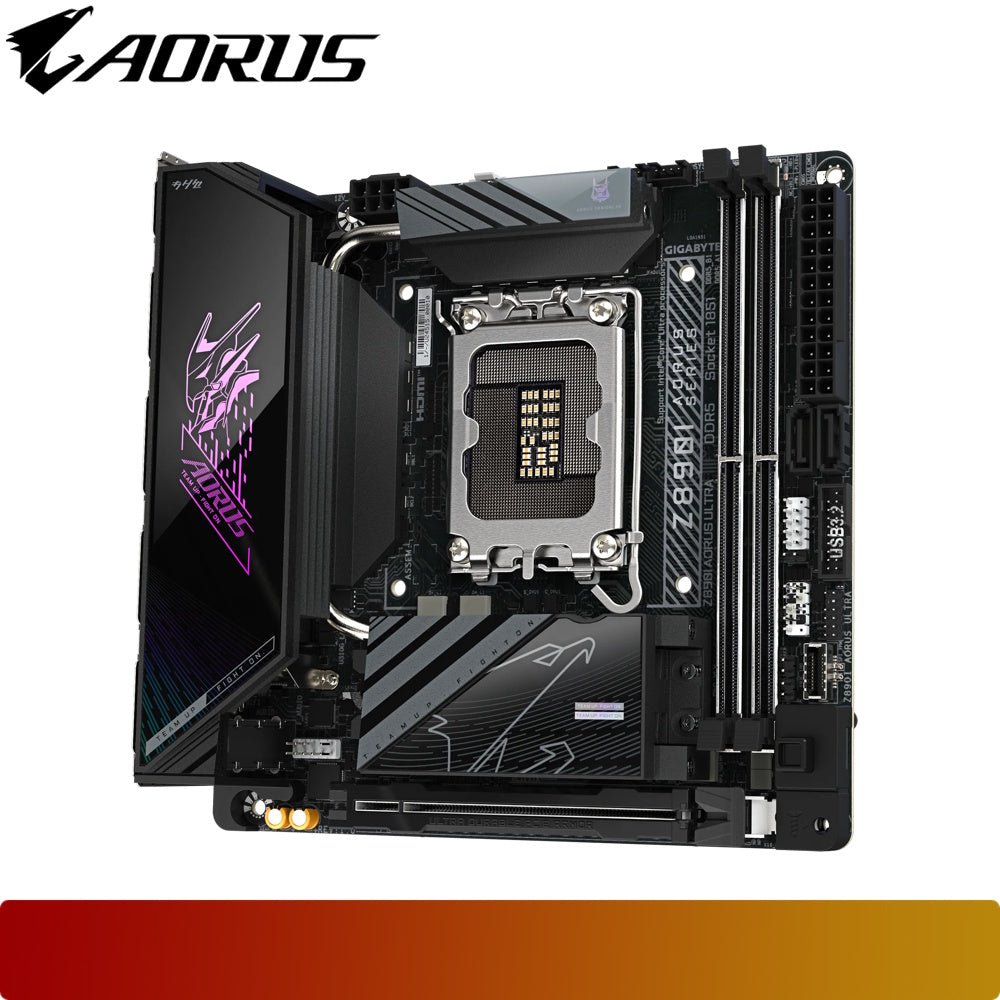

GIGABYTE Z890I AORUS ULTRA

1. 2 x DDR5 DIMM sockets, Maximum Memory Capacity 128 GB
2. Memory Speed Support: DDR5 up to 9200+(O.C) MT/s
3. Supports Dual channel memory architecture
4. Supports ECC Un-buffered DIMM (operate in non-ECC mode), non-ECC Un-buffered DIMM, Extreme Memory Profile (XMP), and CUDIMM

1. 1x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port)
2. 1x DisplayPort (max resolution 4096x2304@60Hz)
3. 1x HDMI port (max resolution 4096x2160@60Hz)

*Requires a processor with integrated graphics. Supports up to triple-display at the same time.

1. 1x PCI Express x16 slot (supporting **PCIe 5.0** and running at x16 from CPU)

1. 1x M.2 connector (M2A_CPU: **PCIe 5.0** x4/x2 from CPU)
2. 1x M.2 connector on the back (M2Q_SB: PCIe 4.0 x4/x2 from Chipset)
3. 2x SATA 6Gb/s connectors

1. LAN: Realtek® 2.5GbE LAN chip

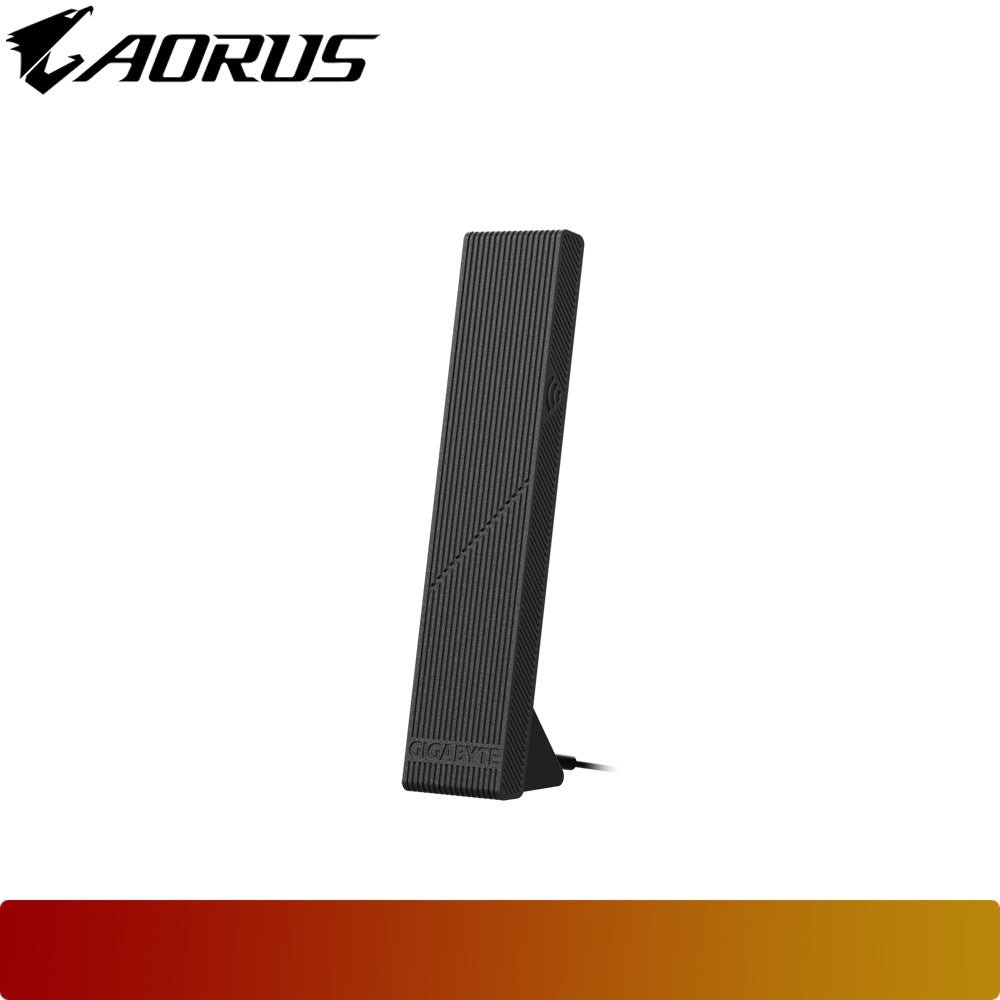

2. Wireless/Bluetooth: Intel® Wi-Fi 7 BE202 & BLUETOOTH 5.4

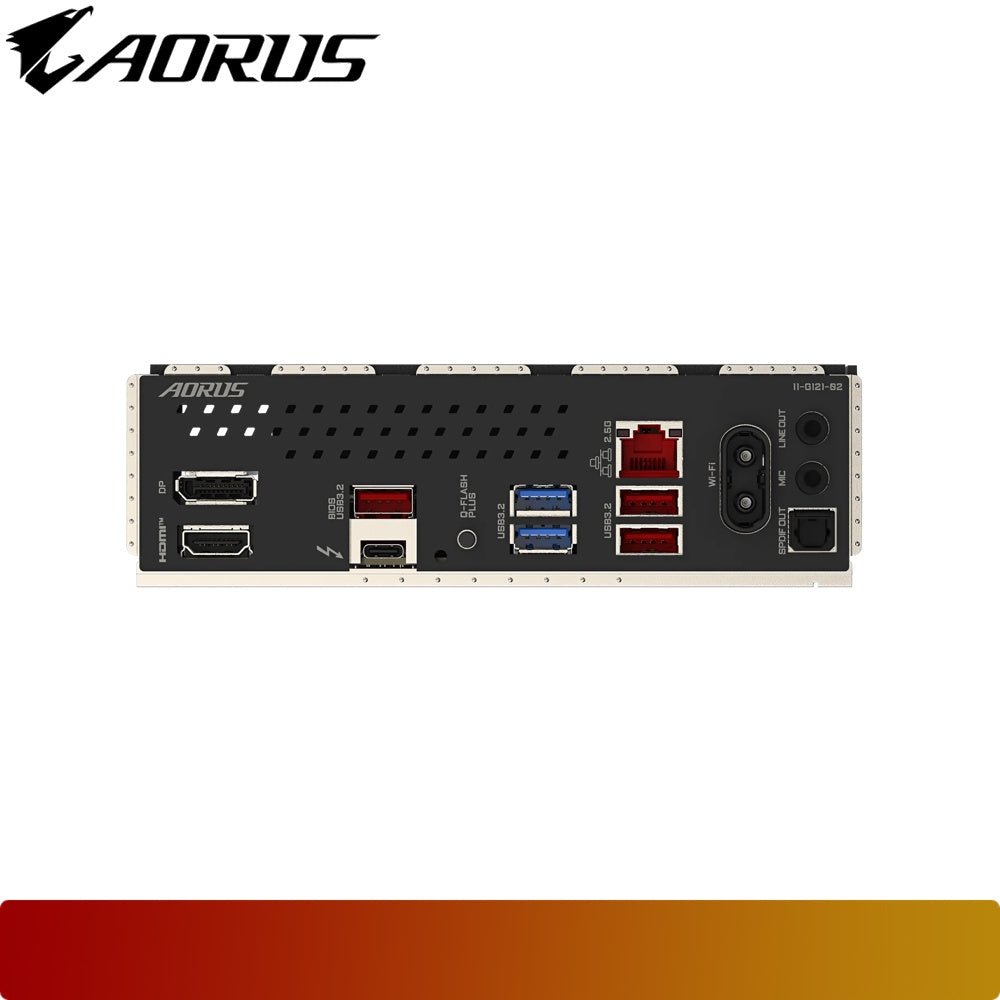

1. Rear Panel Ports: 1x **Intel® Thunderbolt™ 4** (USB Type-C®), 3x **USB 3.2 Gen 2** Type-A (red), 2x **USB 3.2 Gen 1**
2. Front/Internal Headers: 1x **USB Type-C® header (USB 3.2 Gen 2)**, 1x **USB 3.2 Gen 1 header** (supports 2 ports), 1x **USB 2.0/1.1 header** (supports 2 ports)
