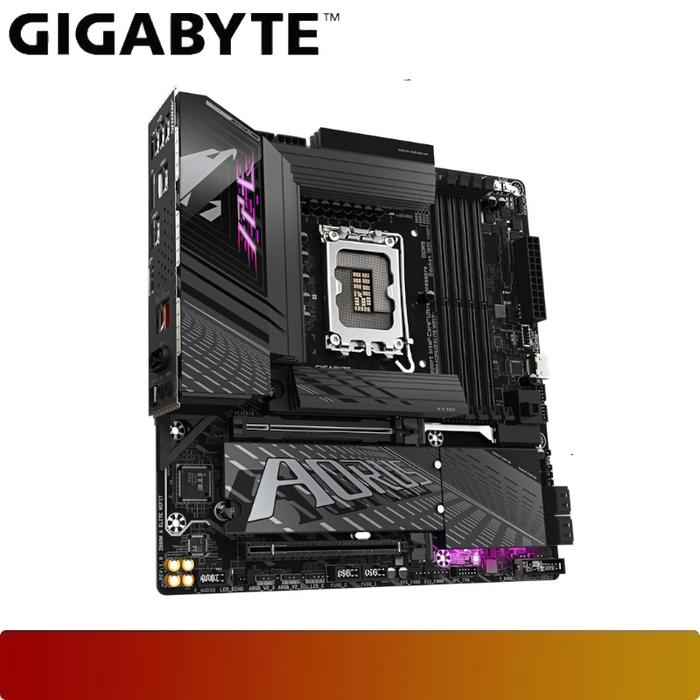

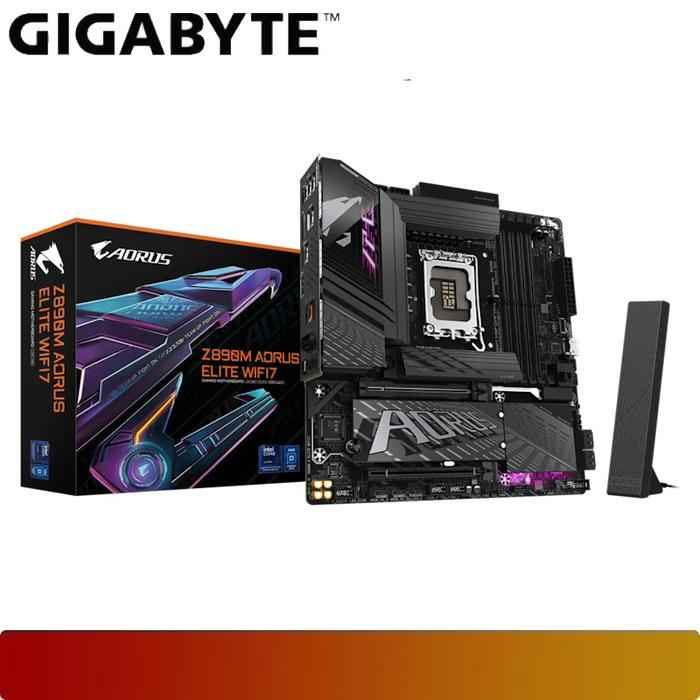

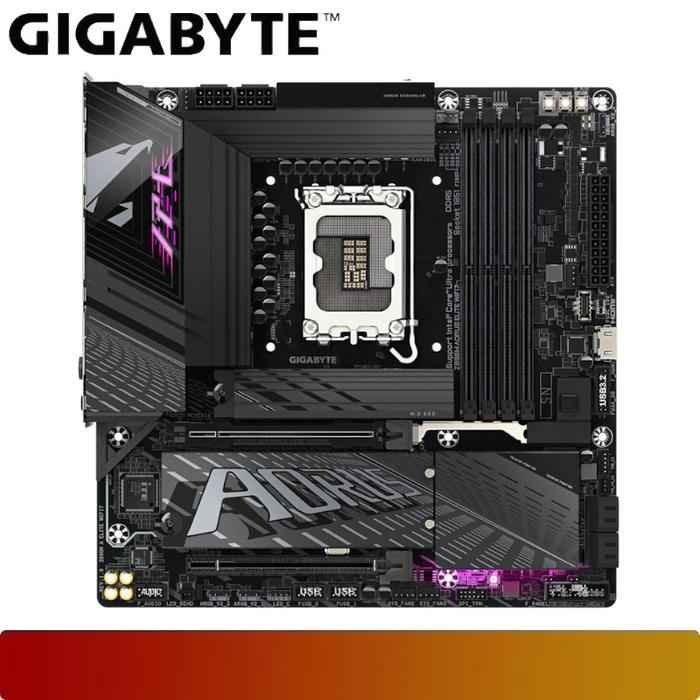

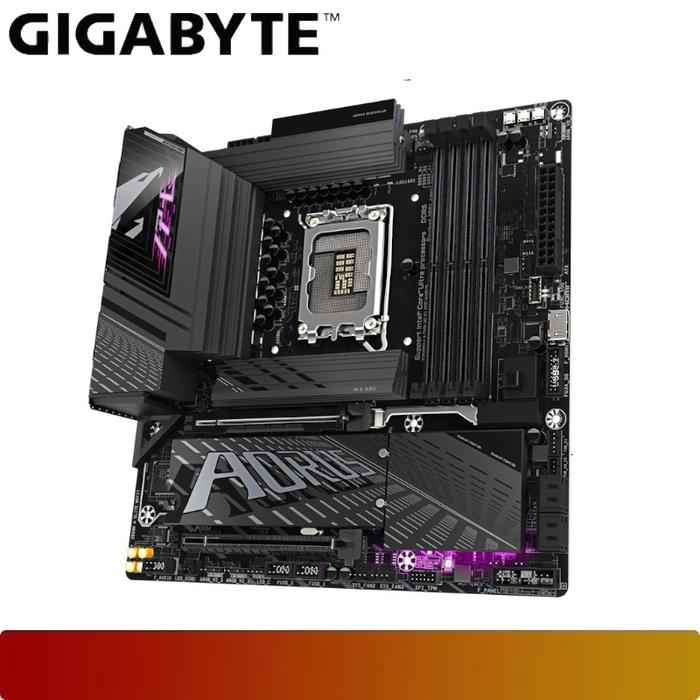

GIGABYTE Z890M AORUS ELITE WIFI7

1. 4 x DDR5 DIMM sockets, Maximum Memory Capacity 256 GB
2. Memory Speed Support: DDR5 up to 9200+(OC) MT/s
3. Supports Dual Channel memory architecture
4. Supports non-ECC Un-buffered DIMM, ECC Un-buffered DIMM (non-ECC mode), XMP, and CUDIMM

1. 1x DisplayPort (Max 4096x2304@60 Hz)
2. 1x HDMI port (Max 4096x2160@60 Hz)

*Requires a processor with integrated graphics (iGPU).

1. 1x PCI Express x16 slot (PCI_E1 Gen **PCIe 5.0**, running at x16 with PCIe UD Slot X)
2. 2x PCI Express x4 slots (Gen PCIe 4.0, running at x4)

1. 3x M.2 slots total: 1x M.2 (**PCIe 5.0** x4) + 2x M.2 (PCIe 4.0 x4)
2. 4x SATA 6Gb/s ports

1. LAN: Realtek® **2.5GbE** LAN chip
2. Wireless/Bluetooth: Wi-Fi 7 & **BLUETOOTH 5.4**

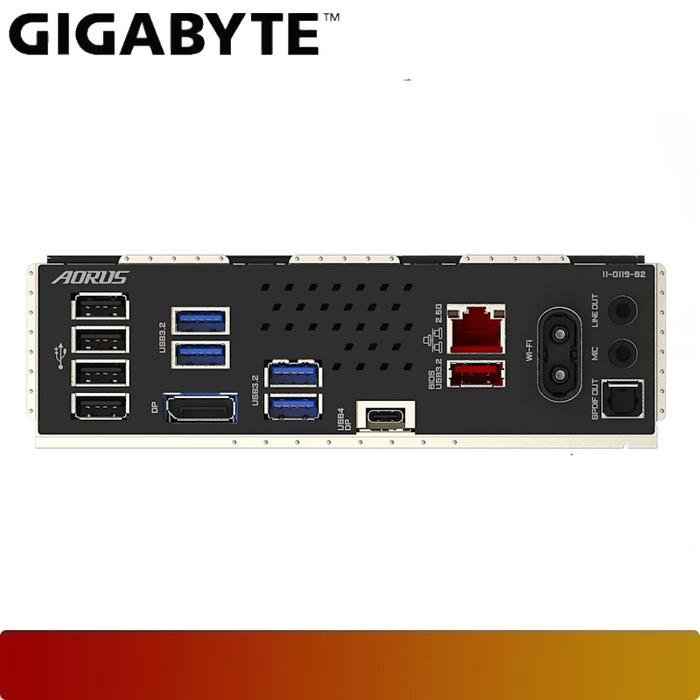

1. Rear Panel: 1x **USB 3.2 Gen 2x2** Type-C® (20Gbps), 3x USB 3.2 Gen 2 Type-A (red), 4x USB 3.2 Gen 1 Type-A
2. Internal Headers: 1x **USB Type-C® header (USB 3.2 Gen 2x2, 20Gbps)**, 1x USB 3.2 Gen 1 header (supports 2 ports), 2x USB 2.0/1.1 headers (supports 4 ports)
