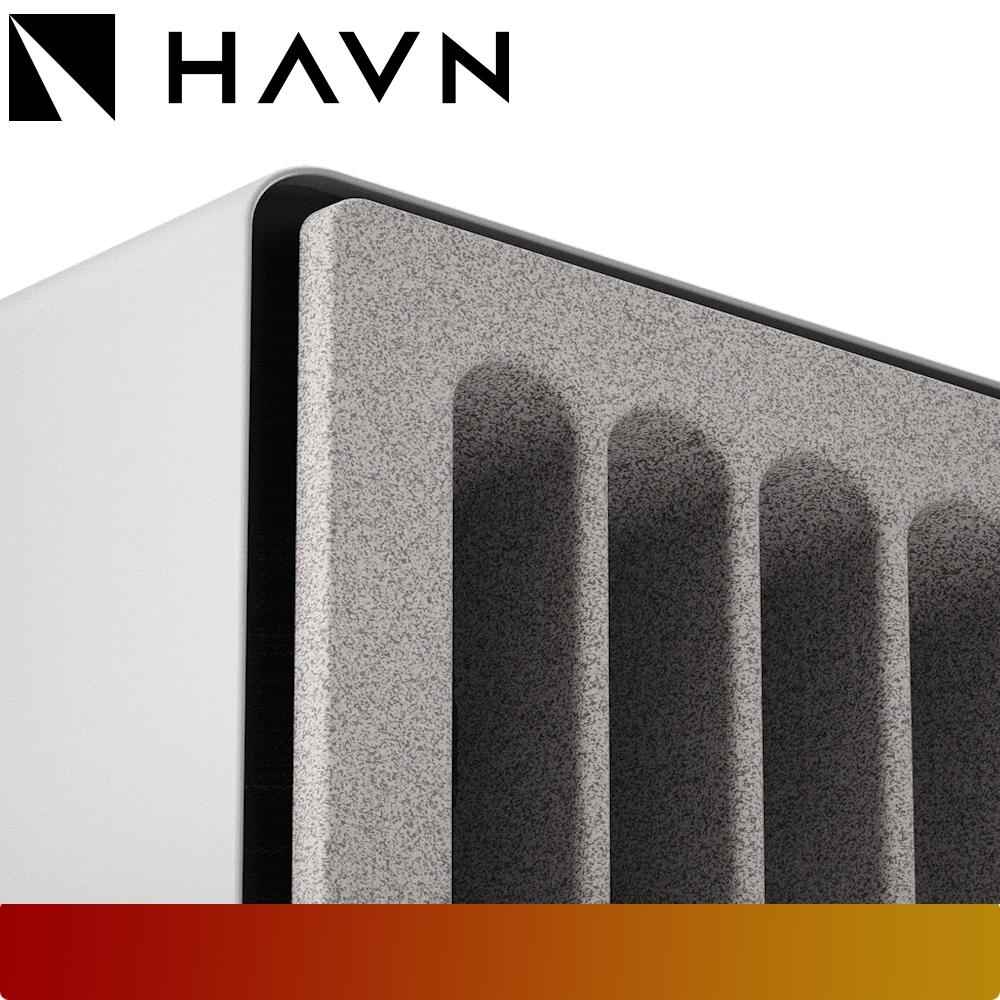

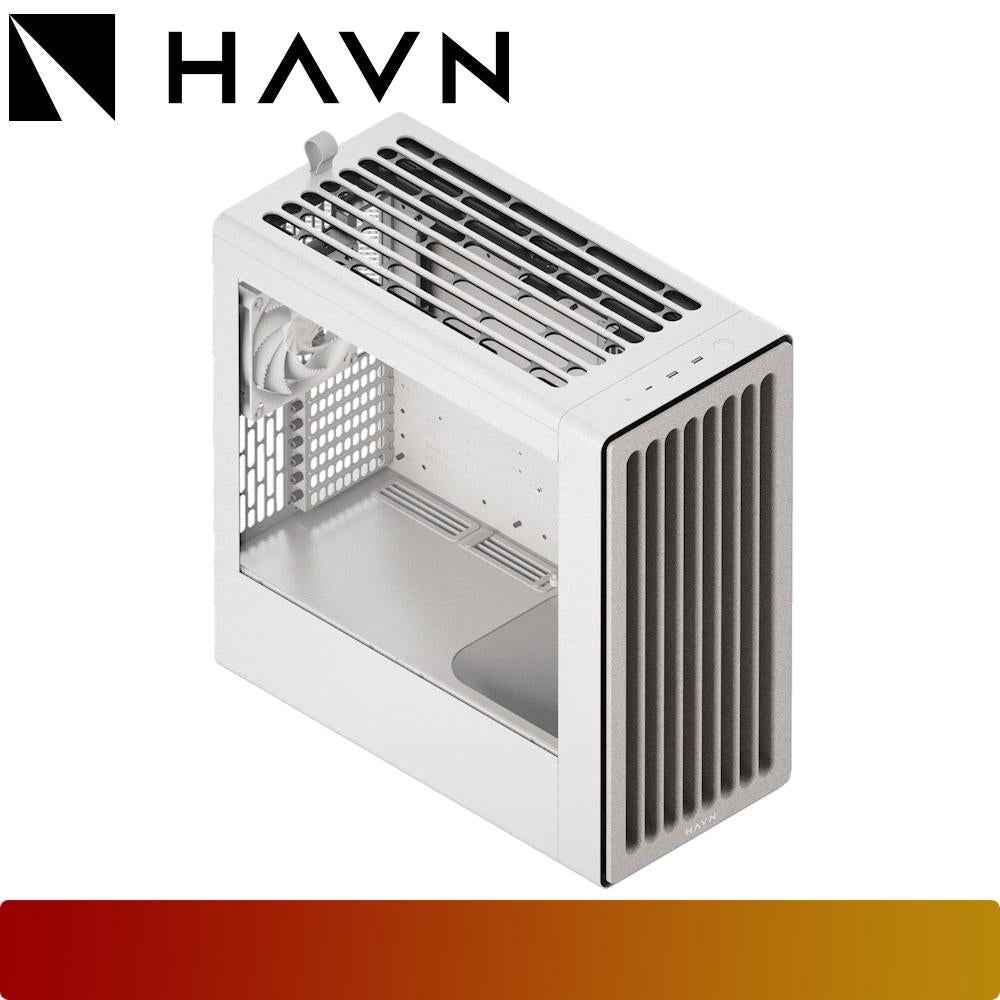

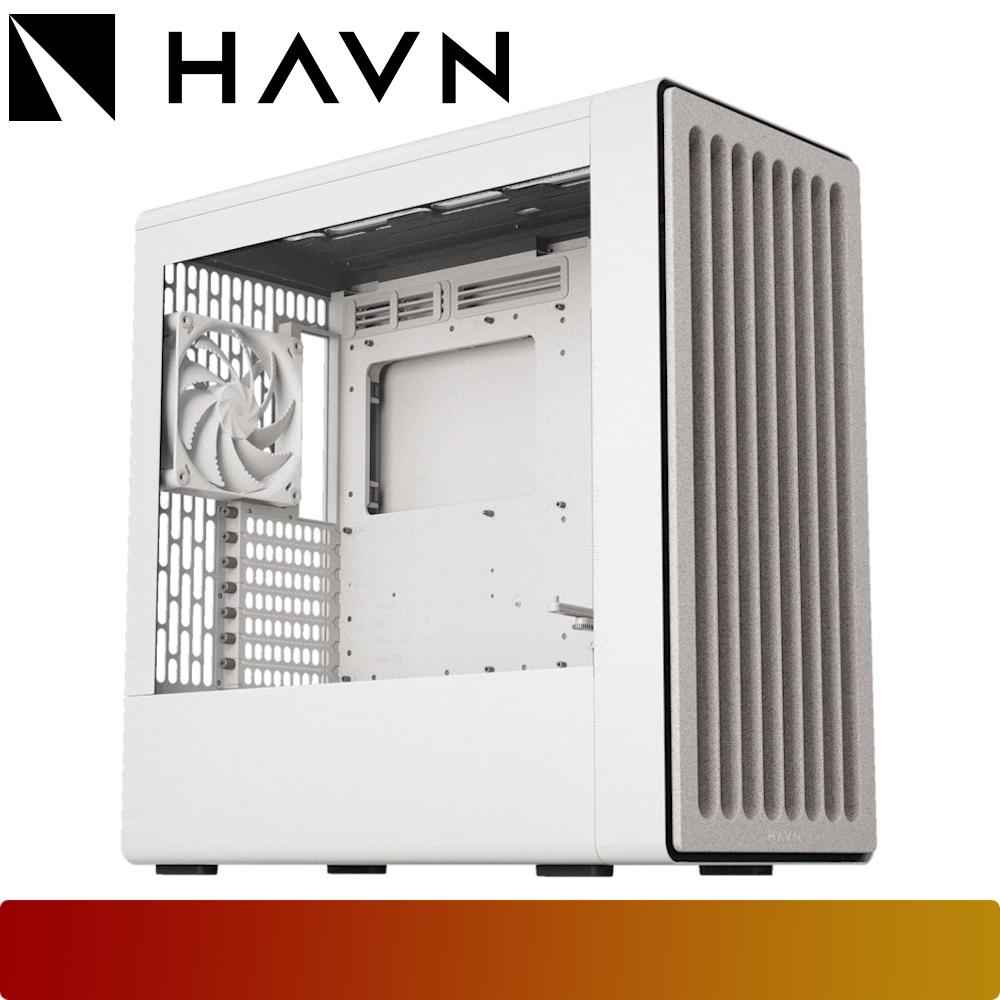

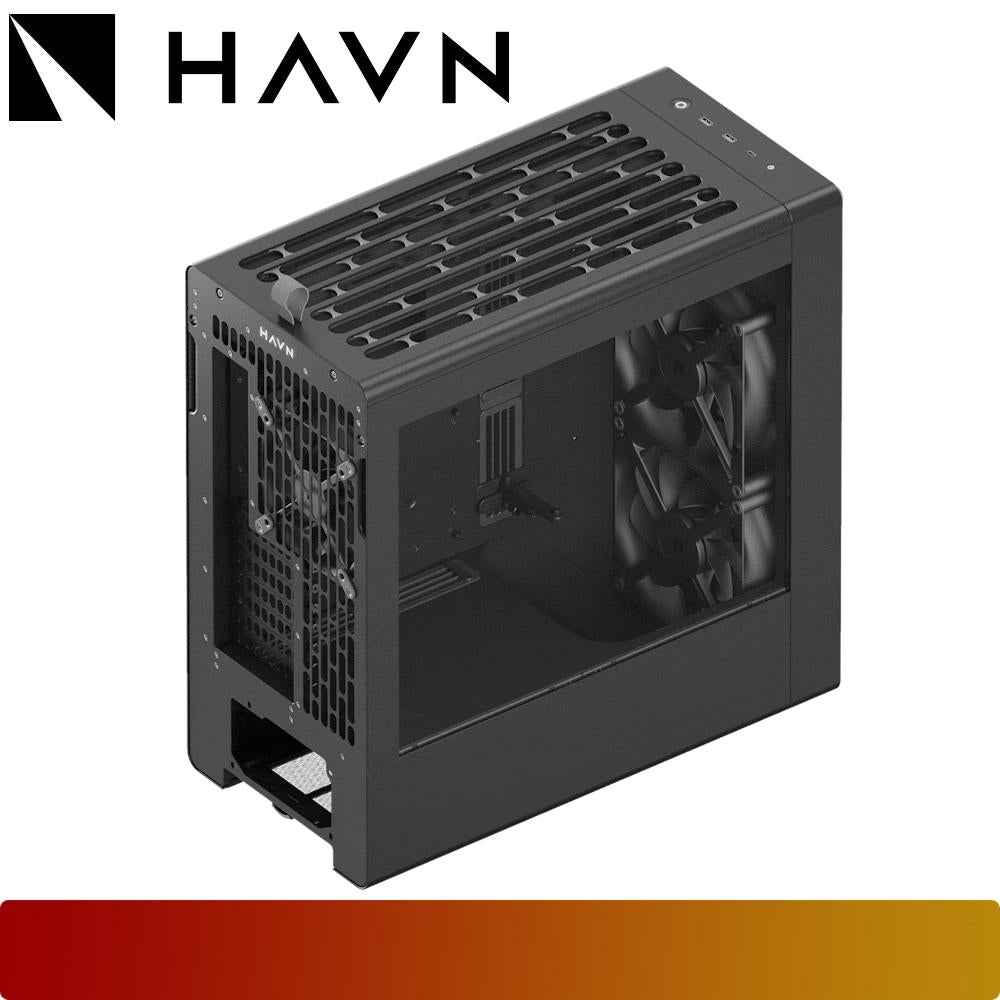

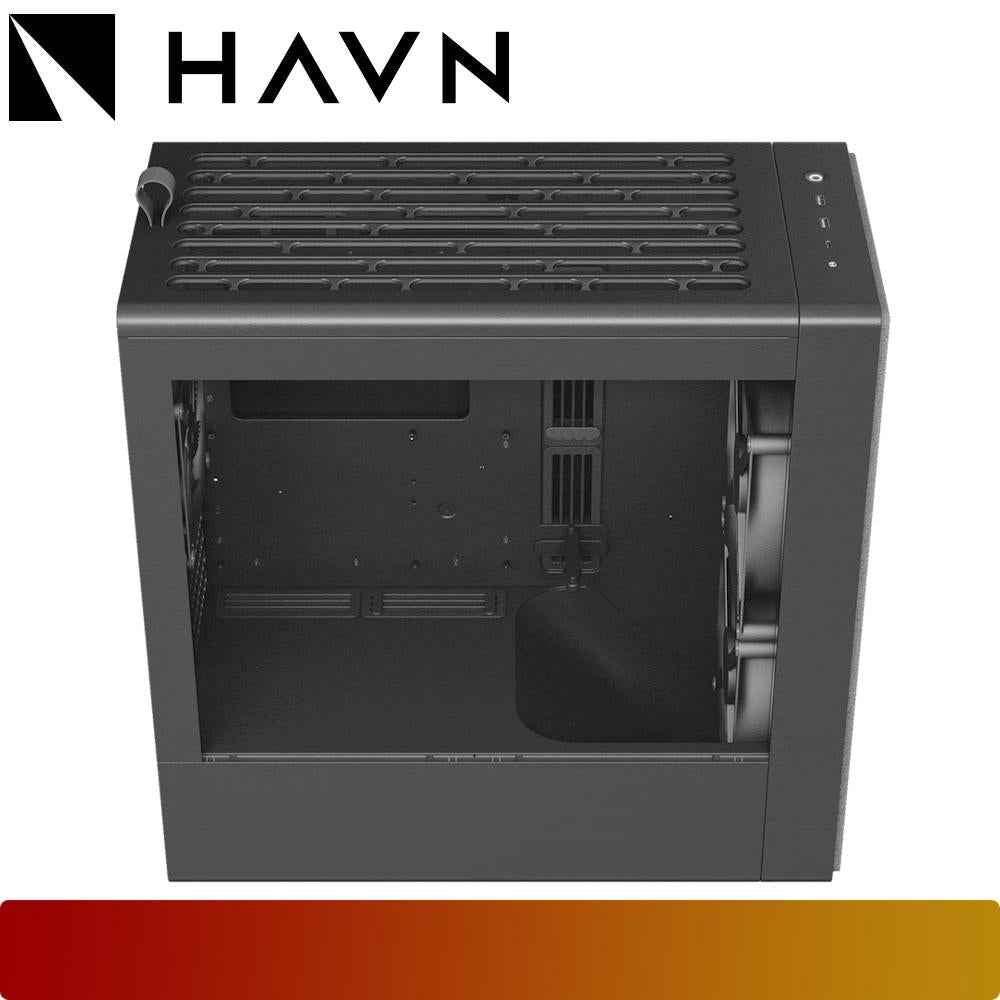

HAVN BF 360 Flow

Specifications :

Form Factor
- Mid Tower

Material
- SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

PC Case Dimensions (L x W x H)
- 515 x 254 x 522.6 mm

Warranty
- 1 year

Front I/O
- USB 3.2 Gen 2 Type-C x1
- USB 3.2 Gen 1 Type-A x2
- Audio Jack x1
- Power & Reset Button x1

Motherboard Support
- E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Expansion Slots
- 7

Fan Support
- Maximum Amount: 6
- Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm
- Front: 2 x 180 mm
- Rear: 1 x 140 / 1 x 120 mm

Fan PWM Repeater
- Fan Ports: 1 x PWM repeaters, 6 ports total
- Location: 1 x Cable Management Tray
- Fan Connectors: 6 ports per repeater x 4-pin PWM
(Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.)
- Fan Rated Voltage: 12V
- Fan Safety Current: Up to 2.6A across 6 ports
- Power Connector: 1 x SATA Power
- Power Safety Current: 1 x SATA connector power input, 12V 2.6A (max)

CPU Tower Cooler Clearance
- Height: Up to 195 mm.

Liquid Cooling Support
- Top: 240 / 280 / 360 mm

Graphics Card Clearance
- Length: Up to 410 mm
- Width: Up to 195 mm.

GPU Support
- 1 - 4.5 Slots

RAM Clearance
- If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm

Power Supply Support
- ATX
- Length: Up to 200mm (Clearance - 260mm)

Storage
- Right Mount: 2 Storage Bays: 2 x 3.5'' / 8 x 2.5''
- Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''
- Storage Bay Included: 2x (2 x 3.5'' / 4 x 2.5'')

Dust Filter
- Front: 1 (Built-in)
- Top: 1 (Built-in)
- Rear Bottom: 1 (Removable)

Pre-installed Fans
- 2x H18 Fan (Front) - Case Version
- 1x H14 Fan (Rear) - Case Version
(The Loopin System is available on the Retail Version only. Pre-installed case fans use single-female fan connectors.)
