HAVN HS 420 DOOM: The Dark Ages Limited Edition

Specifications :

Form Factor
- Mid Tower

Material
- SGCC sheet metal, tempered glass, ABS, nylon, silicone, zinc alloy, NdFeB magnets, aluminum, glass fiber-reinforced epoxy board, and plastic

PC Case Dimensions (L x W x H)
- 541 x 259.5 x 547 mm

Warranty
- 1 year

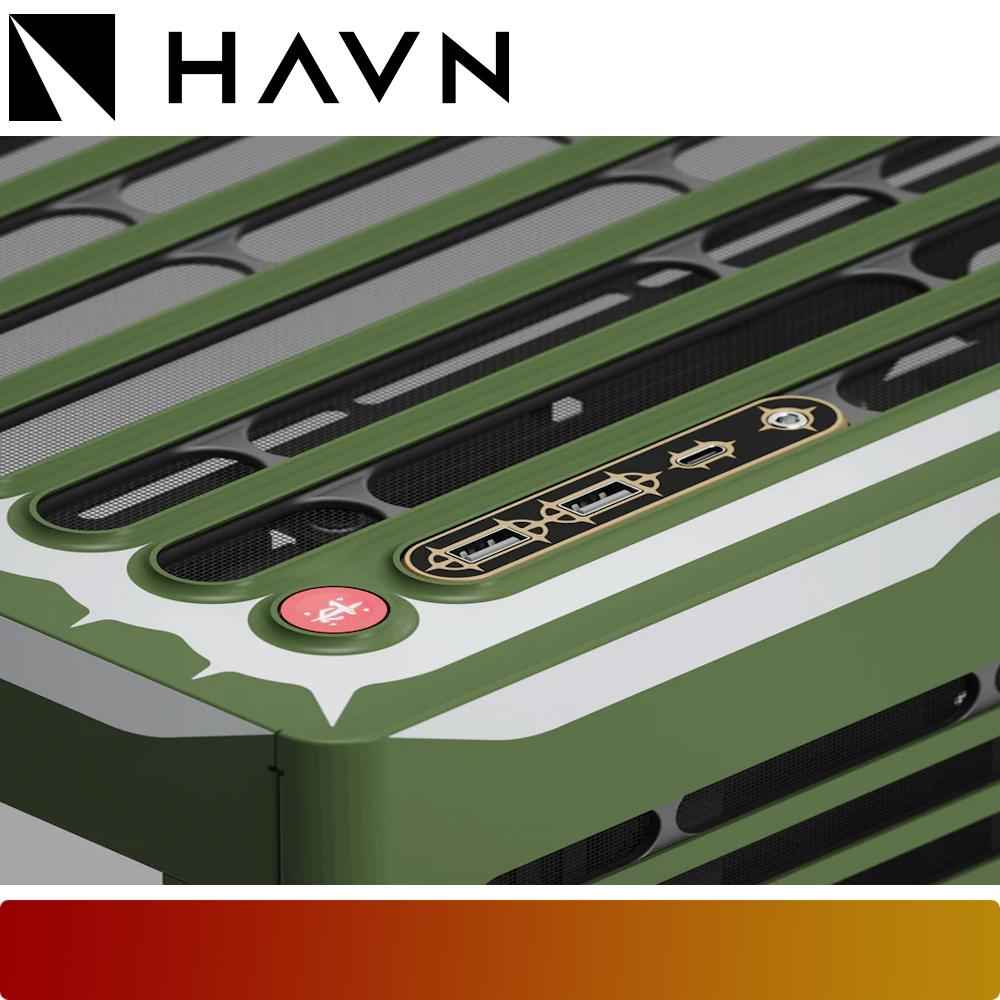

Front I/O
- USB 3.2 Gen 2 Type-C x1
- USB 3.2 Gen 1 Type-A x2
- Audio Jack x1
- Power & Reset Button x1

Motherboard Support
- E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Expansion Slots
- 6

Fan Support
- Maximum Amount: 11
- Top: 3 x 120 / 3 x 140 mm
- Right: 3 x 120 / 3 x 140 mm
- Bottom: 3 x 120 / 3 x 140 mm
- Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)

Fan PWM Repeater
- Fan Ports: 2 x PWM repeaters, 12 ports total
- Location: 1 x Cable Management Tray
- 1 x PSU Shroud
- Fan Connectors: 6 ports per repeater x 4-pin PWM
(Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.)
- Fan Rated Voltage: 12V
- Fan Safety Current: Up to 2.6A across 6 ports
- Power Connector: 1 x SATA Power
- Power Safety Current: 1 x SATA connector power input, 12V 2.6A (max)

CPU Tower Cooler Clearance
- Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended.

Liquid Cooling Support
- Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)
- Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)
- Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)

Graphics Card Clearance
- Length: Up to 480 mm
- Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.

GPU Support
- 2 - 5 Slots

RAM Clearance
- If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm

Power Supply Support
- ATX
- Length: Up to 220mm (Clearance - 290mm)

Storage
- Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''
- Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''
- Storage Bay Included: 4x

Internal Display Support
- VESA Mounting: 75 x 75 mm / 100 x 100 mm
- Display Size: 14 in. (Max)
- Location: Front Right Pillar

Dust Filter
- Bottom: 1 (Removable)
- Top: 1 (Built-in)
- Right: 1 (Built-in)
- Rear Bottom: 1 (Removable)

Accessories
- Controllable RGB Light Strip - Top: 1 (Built-in)
- Magnetic Skull - Side: 1 (Removable)
- Aluminium Plate - Bottom: 1 (Built-in)
