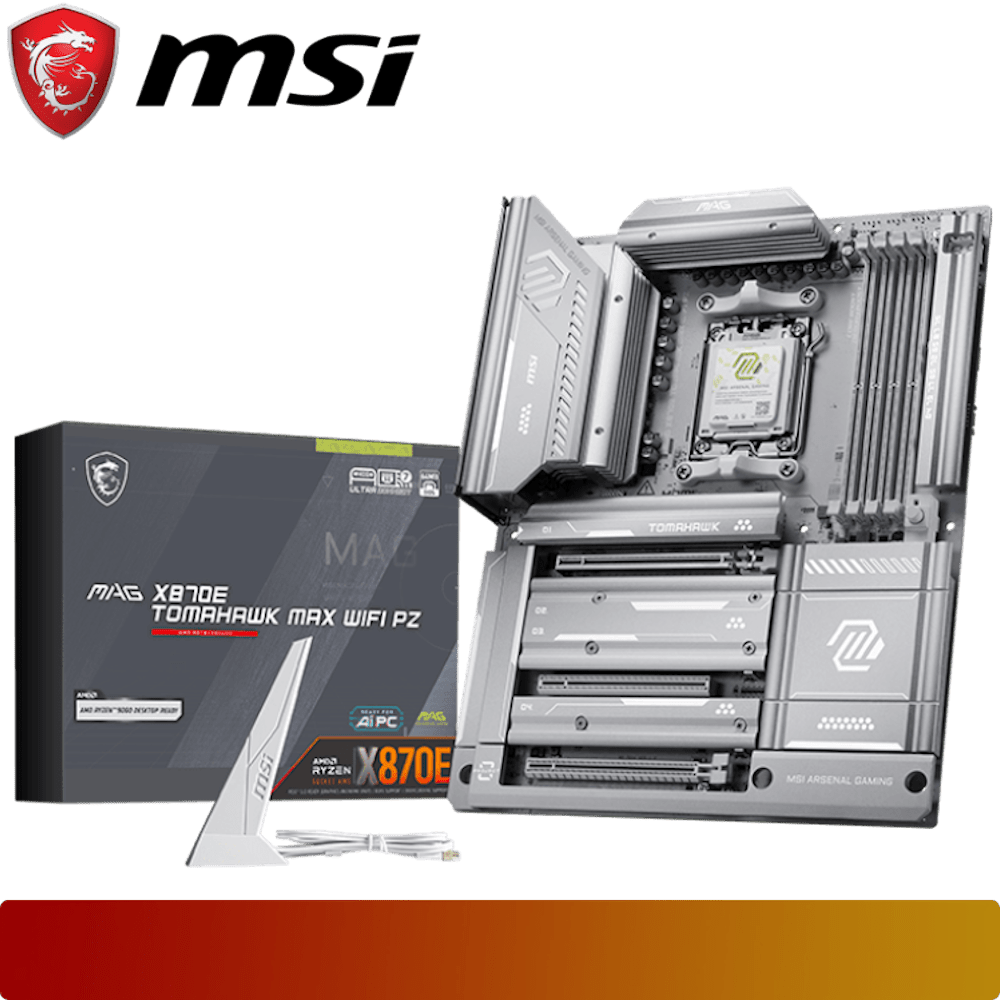

MSI MAG X870E TOMAHAWK MAX WIFI PZ
Rp 6.709.000
Also available at:
Product description
| Model | MAG X870E TOMAHAWK MAX WIFI PZ |
|---|---|
| Chipset | AMD X870E |
| CPU Support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5) |
| Memory (RAM) | 4x DDR5 UDIMM slots, 256GB Maximum Capacity. OC speed up to 8400+ MT/s. Supports AMD EXPO™, Dual-Channel, Non-ECC, Un-buffered memory. |
| Expansion Slots | 3x PCI-E x16 slots: - PCI_E1: Gen PCIe 5.0 x16 (From CPU) - PCI_E2: Gen PCIe 3.0 x1 (From Chipset) - PCI_E3: Gen PCIe 4.0 x4 (From Chipset) |
| M.2 Storage | 4x M.2 Slots: - M.2_1 (CPU): Supports PCIe 5.0 x4 - M.2_2 (CPU): Supports PCIe 5.0 x4 (Bandwidth shared with 40Gbps USB-C ports) - M.2_3 (Chipset): Supports PCIe 4.0 x4 - M.2_4 (Chipset): Supports PCIe 4.0 x4 |
| SATA Storage | 4x SATA 6Gb/s ports |
| RAID | Supports RAID 0, 1, and 10 for SATA devices; Supports RAID 0, 1, 5, and 10 for M.2 NVMe devices. |
| LAN (Wired Network) | 1x Realtek® 8126 **5G LAN** |
| Wireless & Bluetooth | **Wi-Fi 7** (Supports 6GHz band) & **Bluetooth® 5.4** |

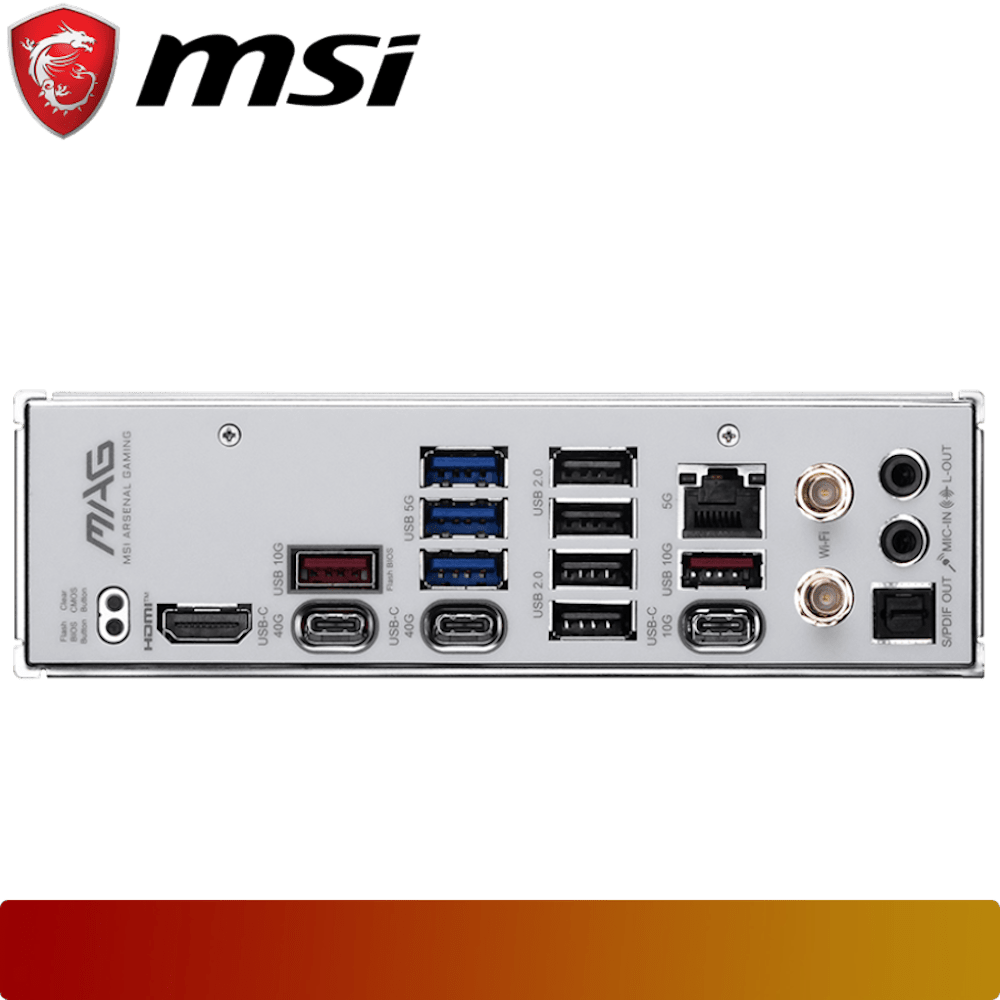

| Rear USB Ports | - 2x USB 40Gbps Type-C (USB4®/DisplayPort) - 1x USB 10Gbps Type-C - 2x USB 10Gbps Type-A - 3x USB 5Gbps Type-A - 4x USB 2.0 |
| Onboard Display Ports | 1x HDMI™ 2.1 (Max. 8K 60Hz), 2x Type-C DisplayPort 1.4 (Max. 4K 120Hz) (Requires CPU with integrated graphics) |
| Audio | Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio, Supports S/PDIF Out. |
| Special Features | EZ Debug LED, EZ Digit Debug LED, Clear CMOS Button, Flash BIOS Button. |
| Form Factor | ATX (304.8mm x 243.84mm) |
