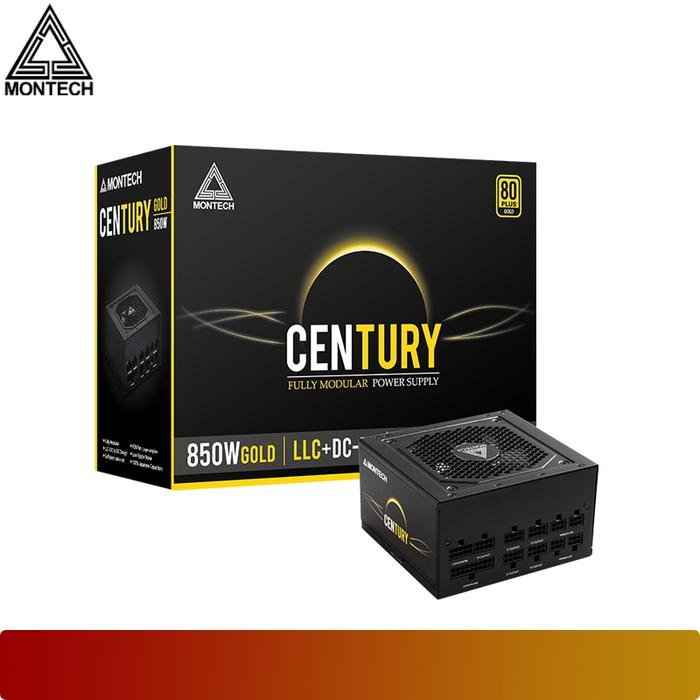

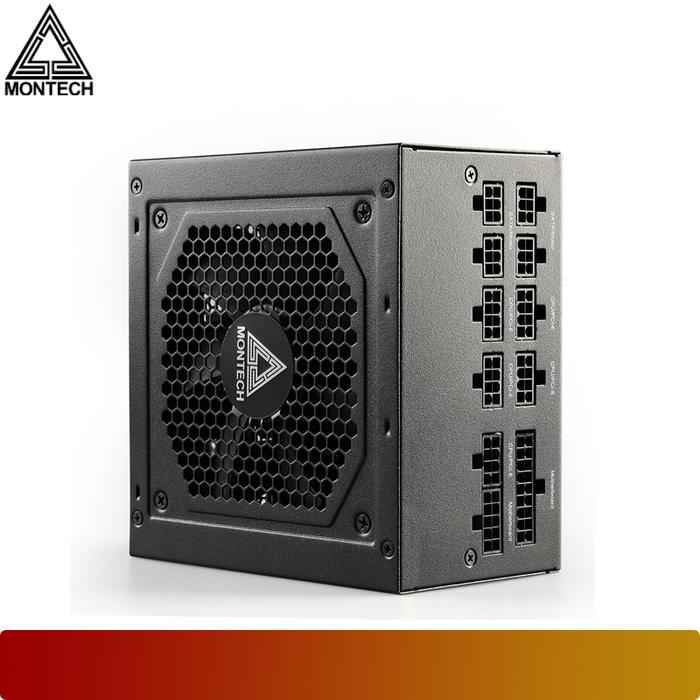

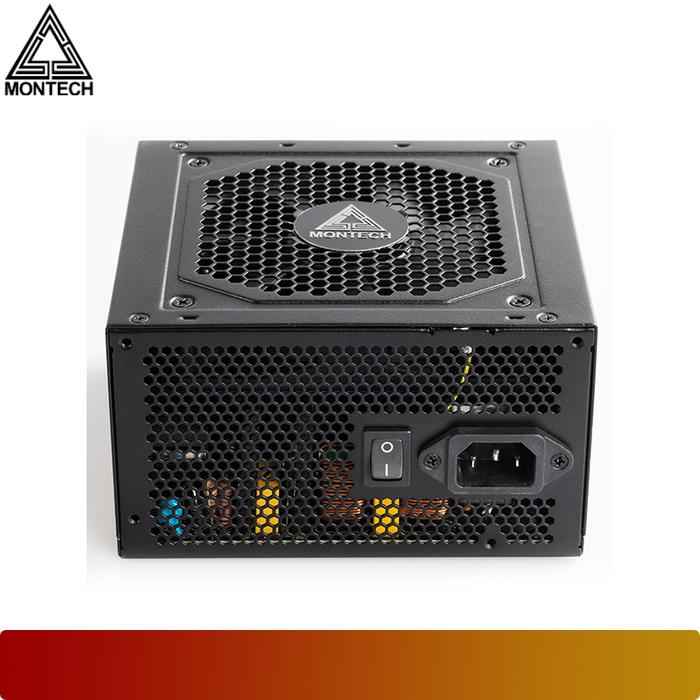

MONTECH CENTURY 850W GOLD

Product Name
- CENTURY 850

ATX Version
- ATX12V

PFC
- Active PFC (>0.9 typical)

Input Voltage
- 100-240Vac

Input Current
- 12A

Input Frequency
- 47-63Hz

Dimensions (L*B*H)
- 140*150*86mm

Fan Size
- 120mm ( FDB Fan )

Hold Up Time
- 10msec (minimum) at 80% of full load at 230Vac input.

Efficiency
- 90% Typically

MTBF
- >100,000 Hours

Operating Temperature
- 0-45°C

Protections
- OCP/OVP/UVP/OPP/SCP/OTP

Regulatory
- cTUVus / TUV / CB / CE / RoHS / FCC

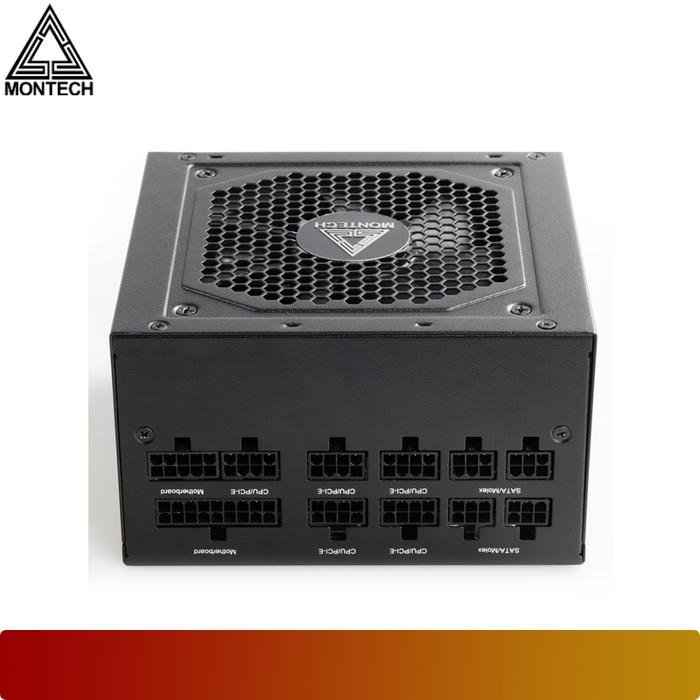

Connectors
M/B 20+4Pin
- 1
CPU 4+4Pin
- 2
PCIE 6+2
- 6
SATA
- 10
Molex 4Pin
- 3
FDD
- 1

AC Input
- 100-240Vac 47-63Hz 12.0A

DC Output
- +3.3V
- +5V
- 12V
- -12V
- +5VSB

Max. Output Current
- 20A
- 20A
- 70.5A
- 0.3A
- 2.5A

Max. Output Power
- 110W
- 846W
- 3.6W
- 12.5W

Total POWER
- 850W
