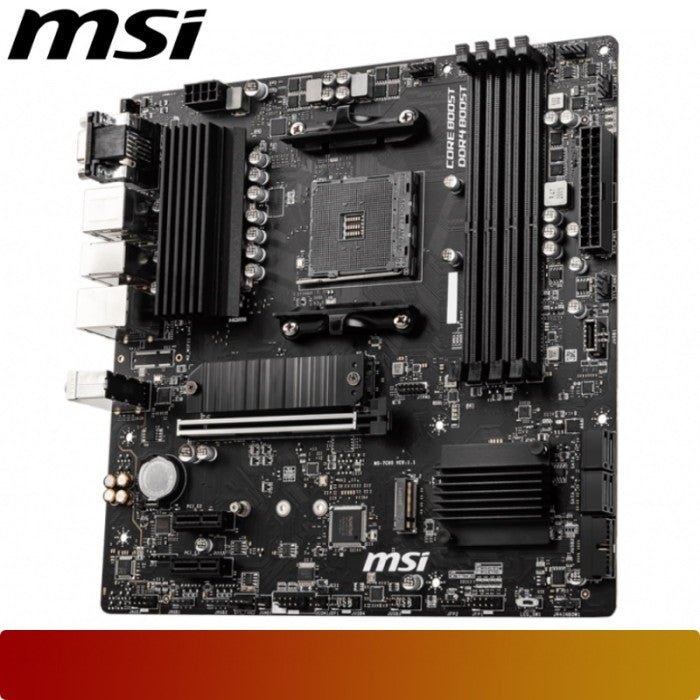

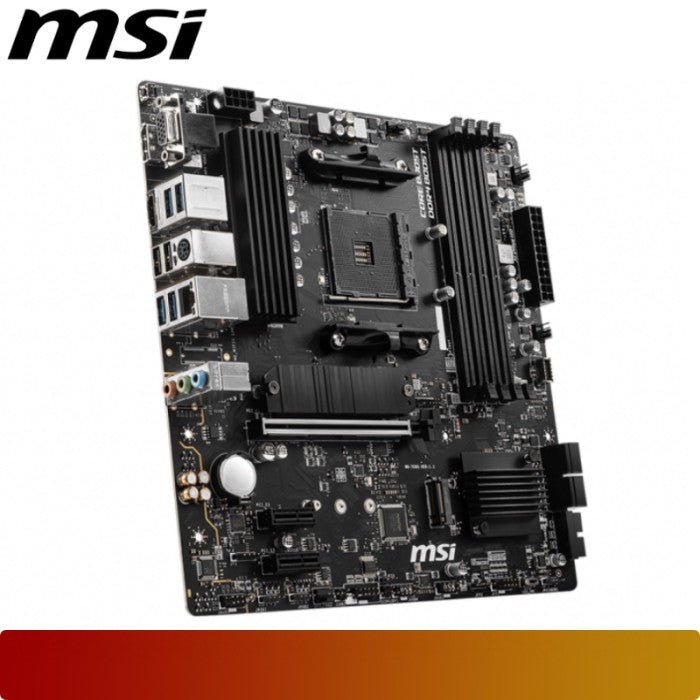

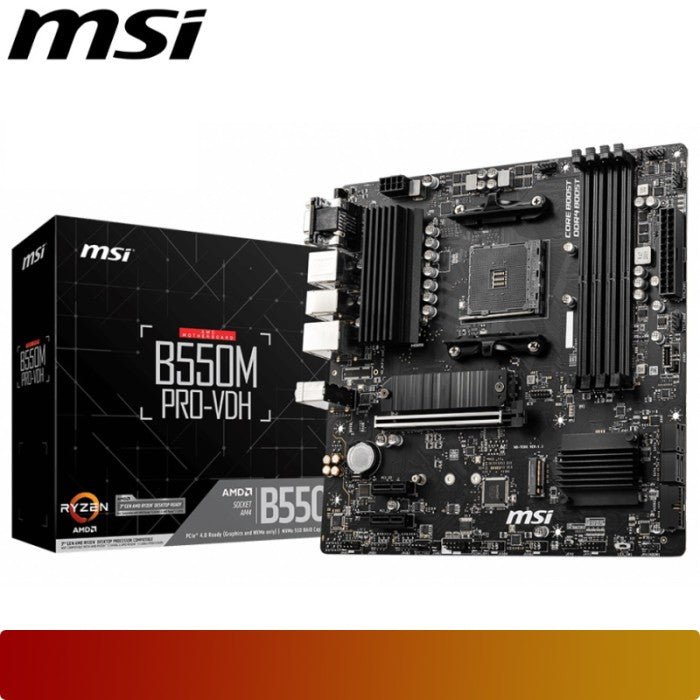

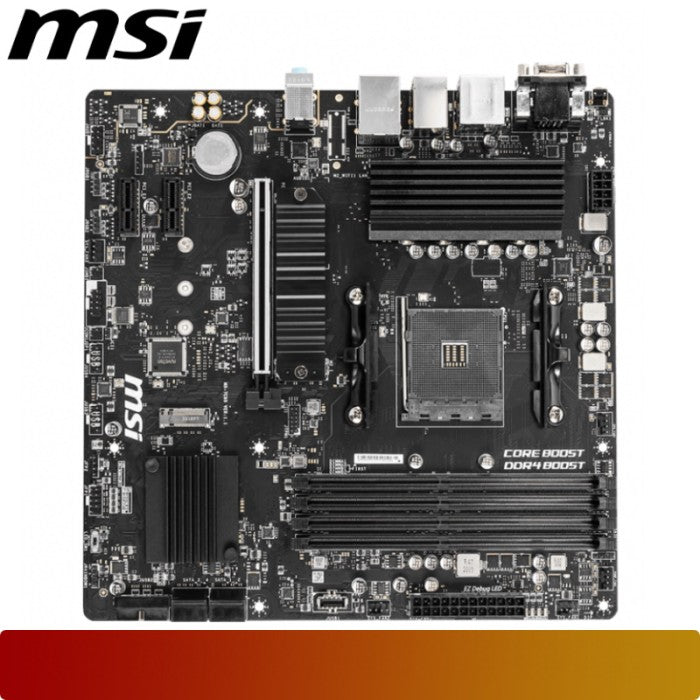

MSI B550M PRO-VDH
Rp 1.449.000
Also available at:
Product description
| SOCKET | AMD Socket AM4 |
| CHIPSET | AMD® B550 Chipset |
| FORM FACTOR | Micro-ATX (9.6 in. x 9.6 in. / 24.4 cm x 24.4 cm) |
| CPU SUPPORT | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (excluding Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| MEMORY CHANNELS | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 1 (PCIe Gen4 / Gen3) |
| PCI-E X1 | 2 (PCIe 3.0) |
| M.2 SLOTS | 2 (M2_1 from CPU: PCIe 4.0/3.0 x4; M2_2 from Chipset: PCIe 3.0 x4. Both support 2242/ 2260/ 2280) |
| SATAIII PORTS | 4 |
| RAID SUPPORT | RAID 0, RAID 1 and RAID 10 for SATA & M.2 NVMe storage devices |
| ONBOARD GRAPHICS PORTS | HDMI™ 2.1 x 1 (Max. 4096x2160 @60Hz) DisplayPort x 1 (Max. 4096x2160 @60Hz) VGA x 1 (Max. 1920x1200 @60Hz) |
| AUDIO | Realtek® ALC892/ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® 8111HN Gigabit LAN controller |

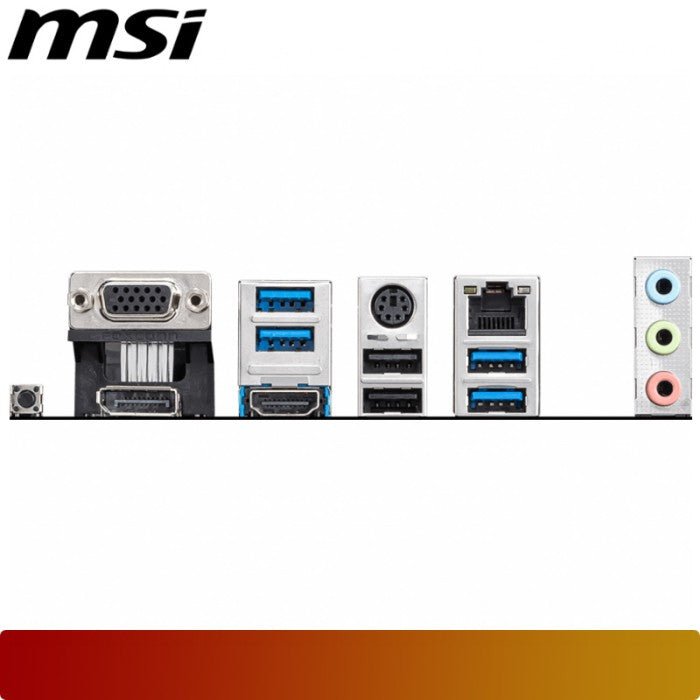

| REAR USB PORTS | 4x USB 3.2 Gen 1 5Gbps Type-A (from CPU) 2x USB 2.0 Type-A (from Chipset) |
| FRONT USB CONNECTORS | 1x USB 3.2 Gen 1 5Gbps Type-C 1x USB 3.2 Gen 1 5Gbps connector (supports 2 ports) 2x USB 2.0 connectors (supports 4 ports) |
| DIRECTX SUPPORT | 12 |
| TPM (HEADER) | 1 |
| SERIAL PORTS (FRONT) | 1 |
