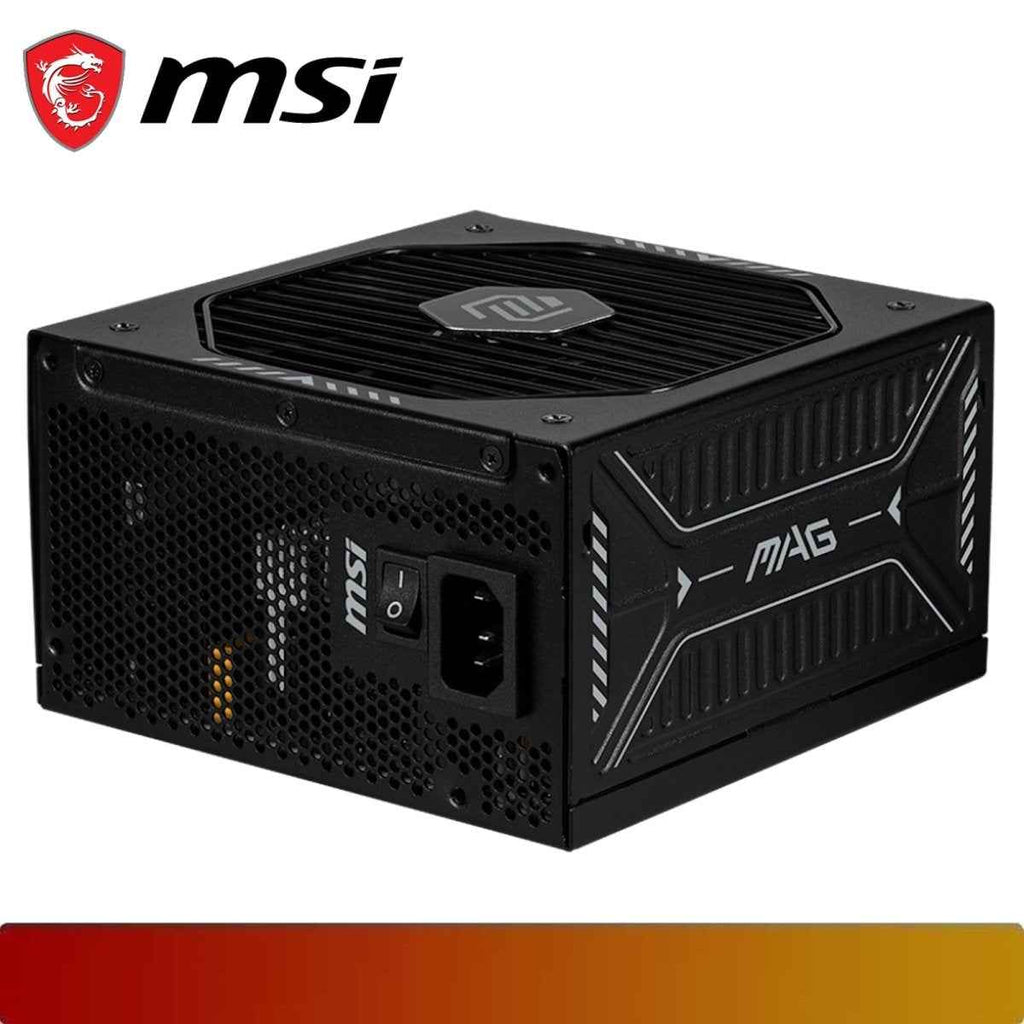

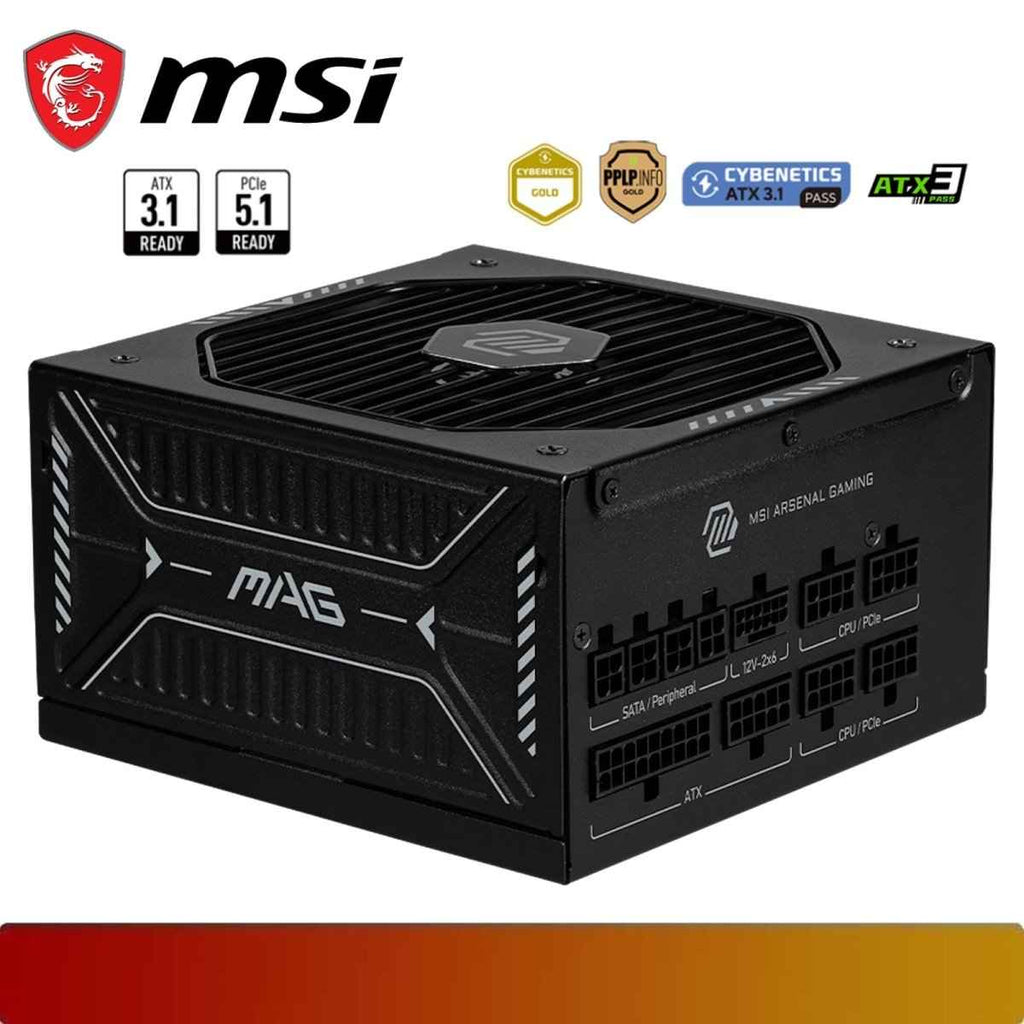

MSI MAG A1000GLS PCIE5

Efficiency Rating
- 80 PLUS Gold (up to 90%)

Modular
- Yes (full modular)

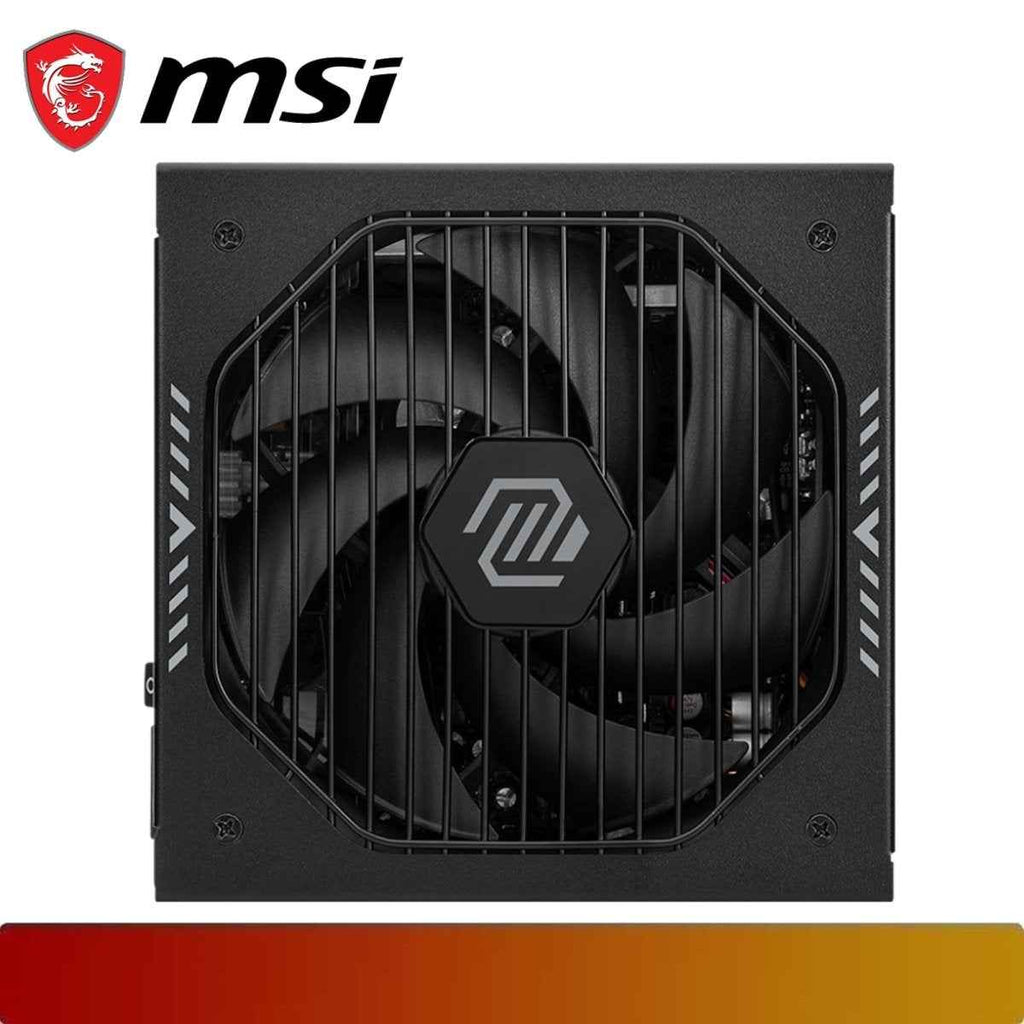

Fan Size
- 135 mm

Fan Bearing
- Fluid Dynamic Bearing

Dimensions (DxWxH)
- 150 x 150 x 86 mm

PFC Type
- Active PFC

Input Voltage Range
- 100-240V~

Power Watt
- 1000W

Power Excursion
- 2200W (*up to 220% of the PSU's rated power for 100μs)

Input Frequency Range
- 47-63 Hz

Protection
- OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

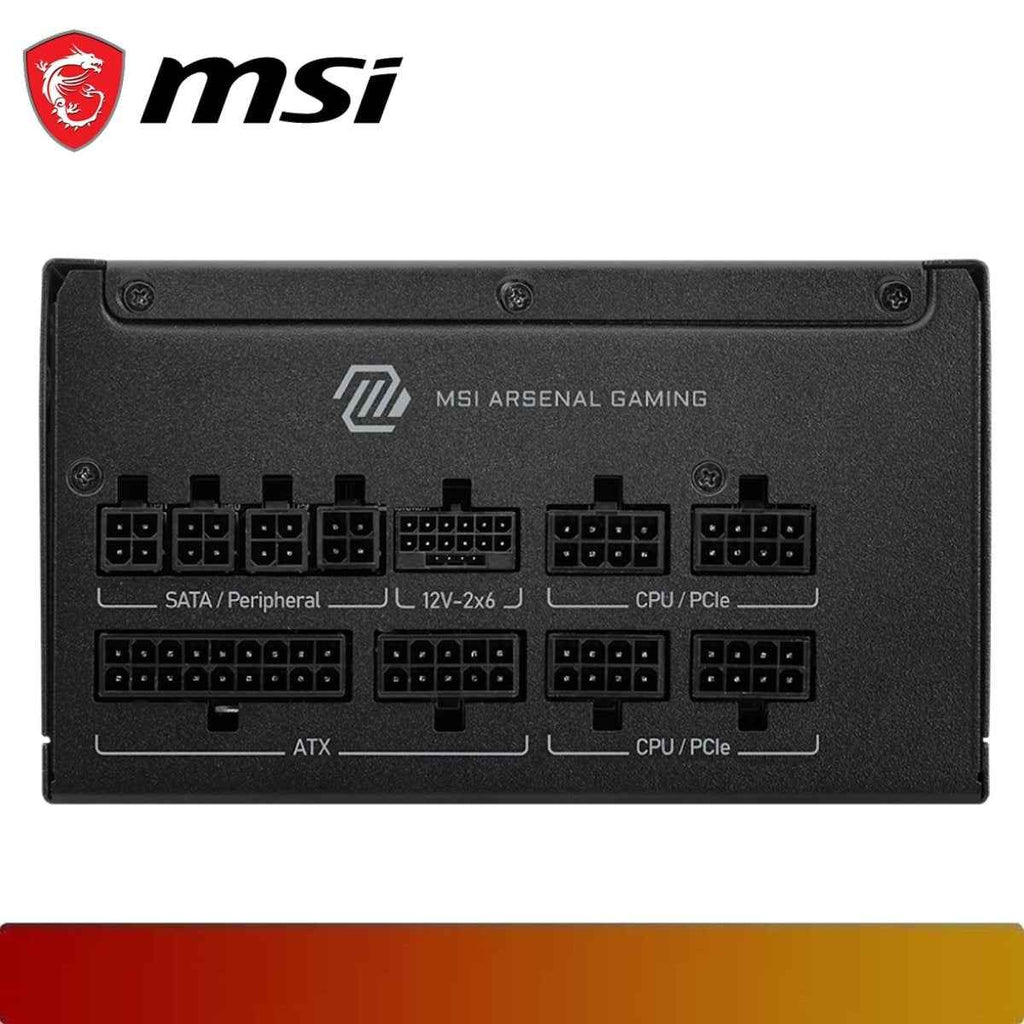

ATX (24 pin)
- 1

EPS (4+4 pin)
- 2

PCI-E 5.1 (16 pin)
- 1 (600W)

PCI-E (6+2 pin)
- 4

SATA (15 pin)
- 11

PERIPHERAL (4 pin)
- 4

FDD (4 pin)
- 1
