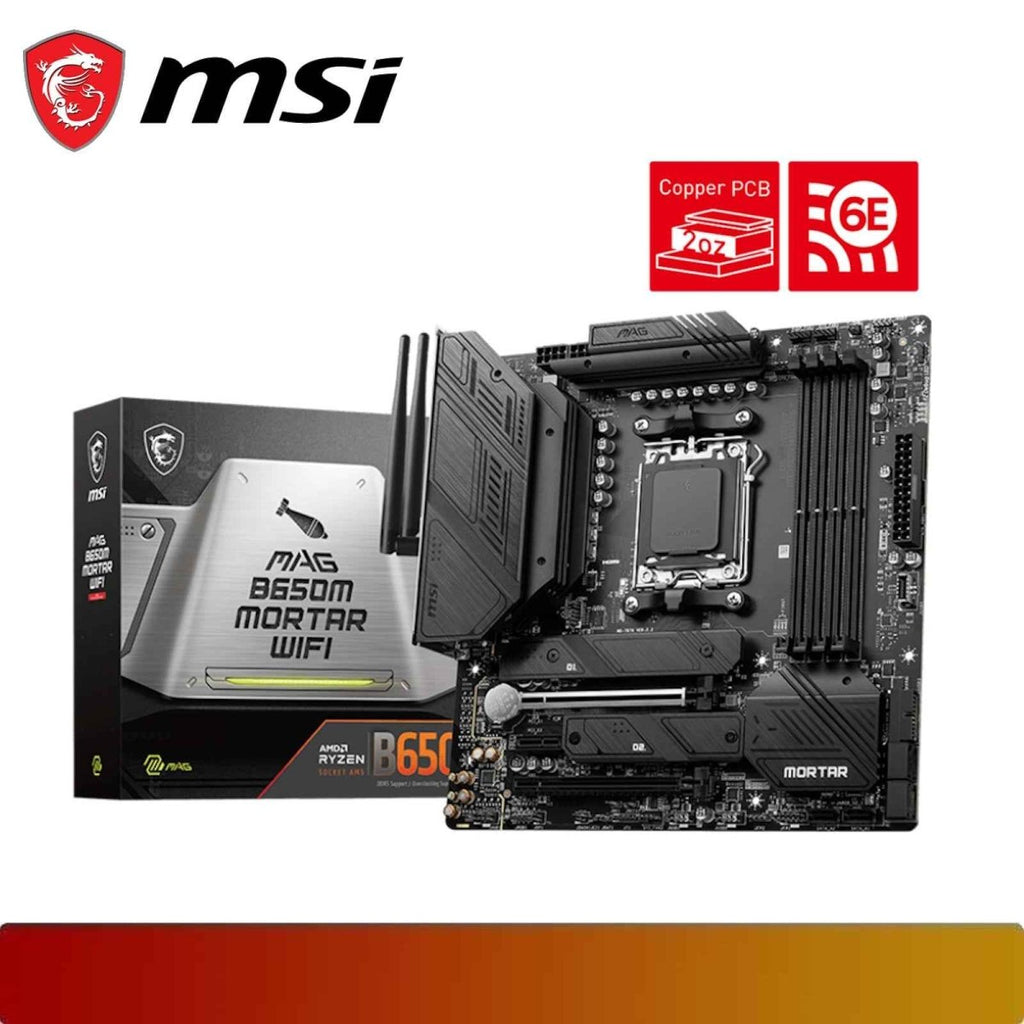

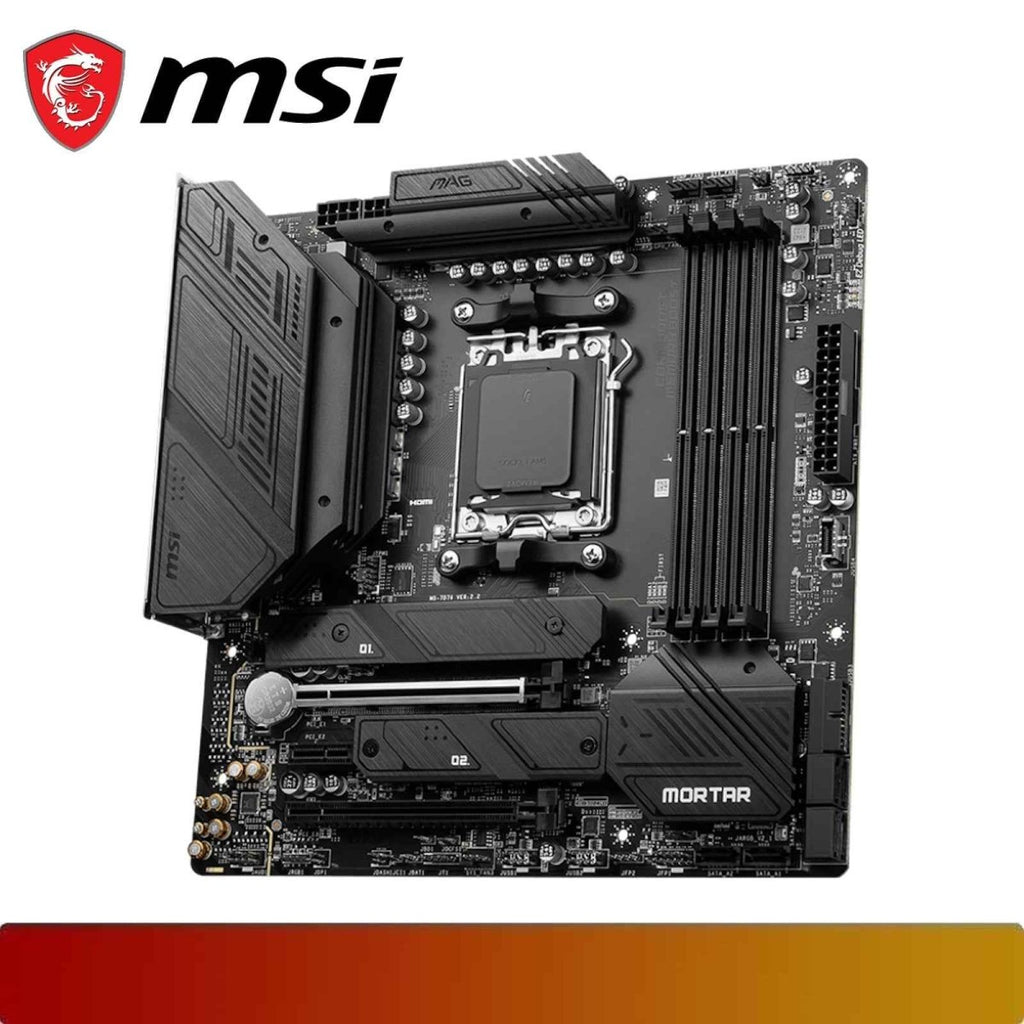

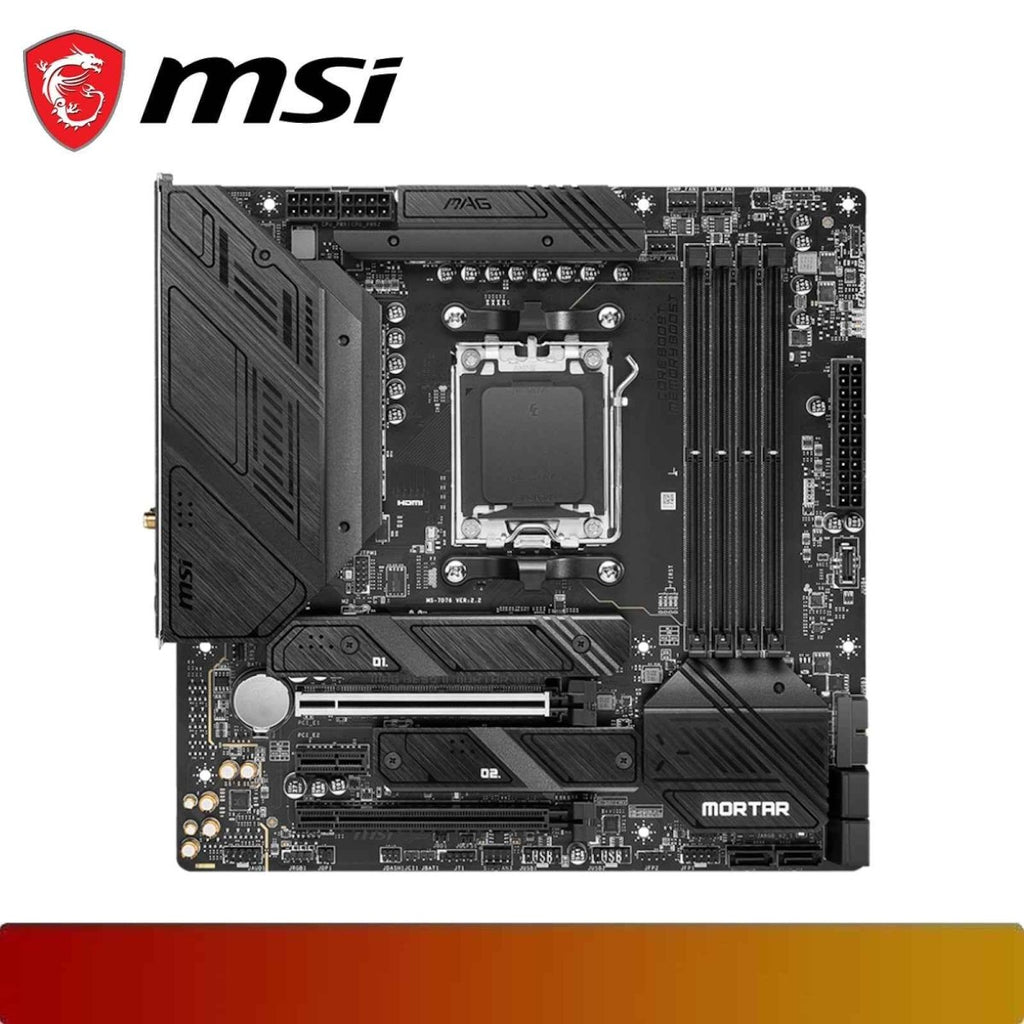

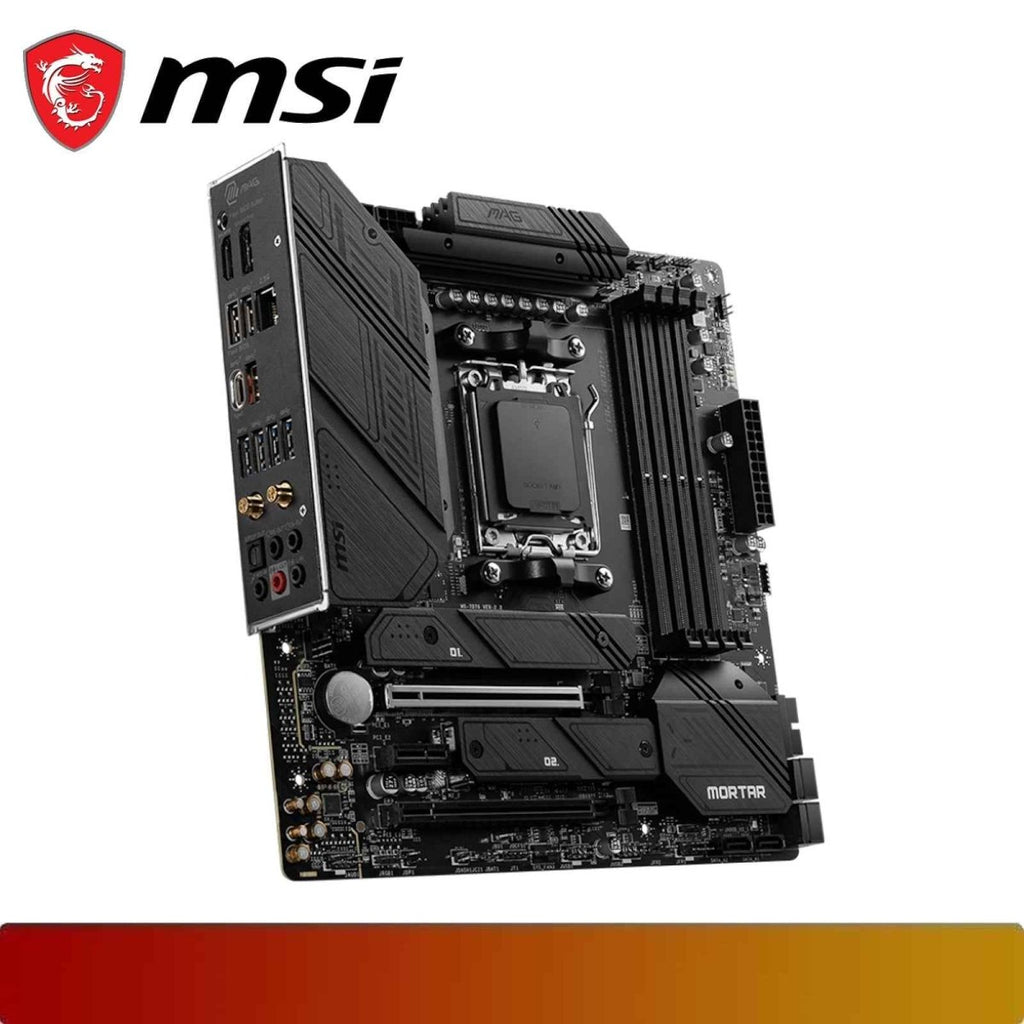

MSI MAG B650M MORTAR WIFI

1. 4x DDR5 DIMMs, Maximum Memory Capacity 128GB
2. Memory Speed Support: DDR5 up to 7600+(OC) / 6400+(OC) MHz
3. Max overclocking frequency (from standard 4800 JEDEC):
   • 1) 1DPC 1R Max speed up to 7600+ MHz
   • 2) 1DPC 2R Max speed up to 6400+ MHz
   • 3) 2DPC 1R Max speed up to 6400+ MHz
   • 4) 2DPC 2R Max speed up to 5400+ MHz
4. Supports Dual-Channel mode and AMD EXPO

1. 1x HDMI™ (Supports HDMI™ 2.1 with HDR, max resolution 4K 60Hz*)
2. 1x DisplayPort (Supports DP 1.4, max resolution 8K 60Hz*)

*Requires a processor with integrated graphics.

1. 1x PCI-E x16 slot (PCIe 4.0, from CPU)
2. 1x PCI-E x16 slot (PCIe 4.0, supports x4 mode, from Chipset)
3. 1x PCI-E x1 slot (PCIe 3.0, from Chipset)

1. 2x M.2 slots (M.2\_1 and M.2\_2 both support PCIe 4.0 x4)
2. 6x SATA 6G ports

1. LAN: Realtek® RTL8125B 2.5Gbps LAN
2. Wireless/Bluetooth: AMD Wi-Fi 6E (pre-installed module) & Bluetooth® 5.2 (or 5.3, depending on Windows version)

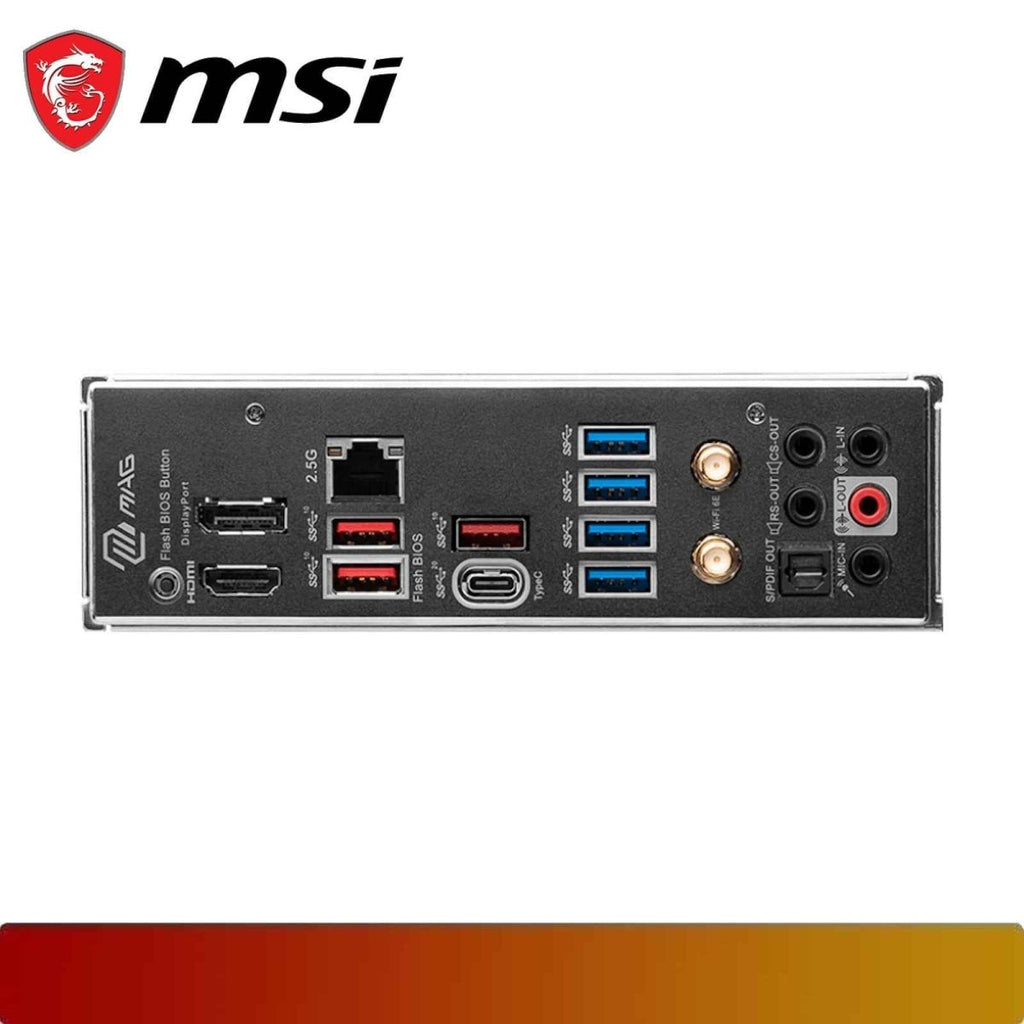

1. Rear Panel Ports: 1x USB-C 20Gbps (USB 3.2 Gen2x2), 3x USB-A 10Gbps (USB 3.2 Gen2), 4x USB-A 5Gbps (USB 3.2 Gen1).
2. Front/Internal Headers: 1x USB-C 10Gbps header, 2x USB-A 5Gbps headers (supports 4 ports), 2x USB 2.0 headers (supports 4 ports).
