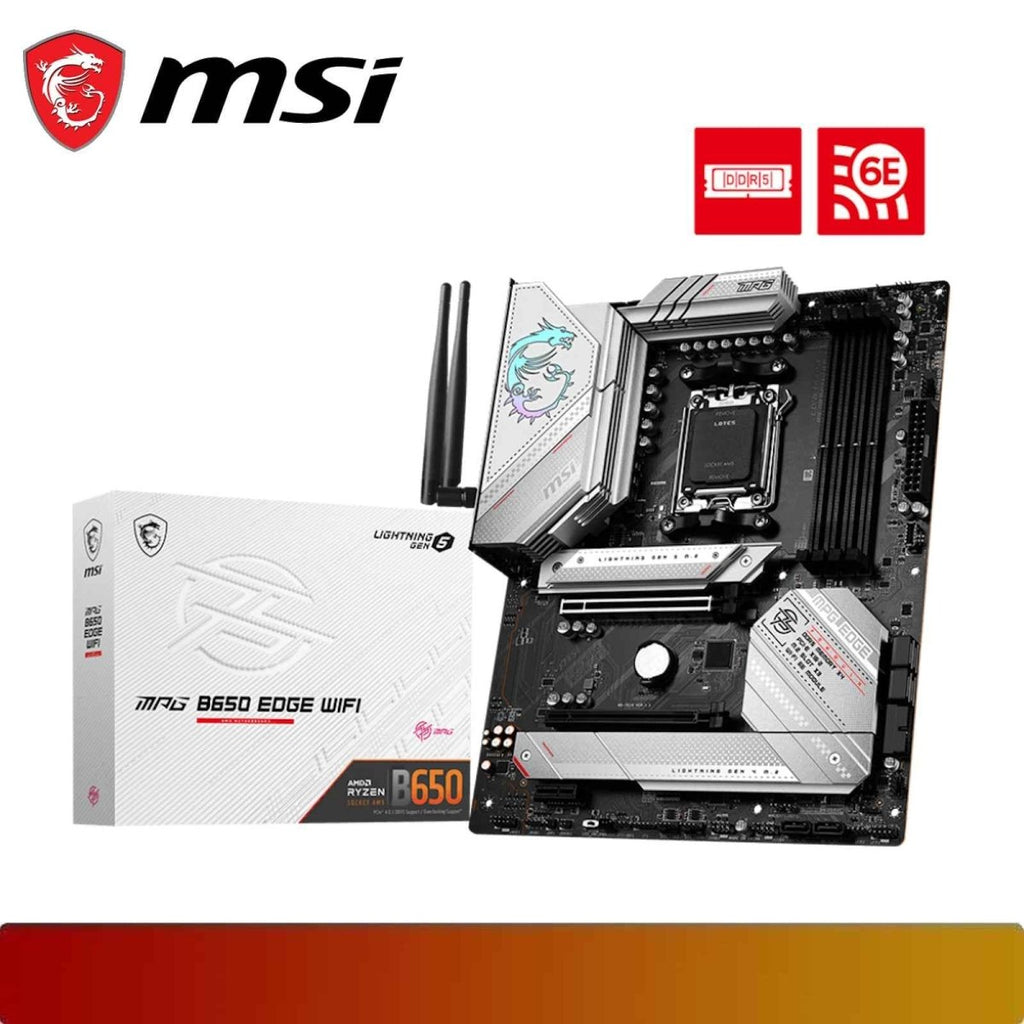

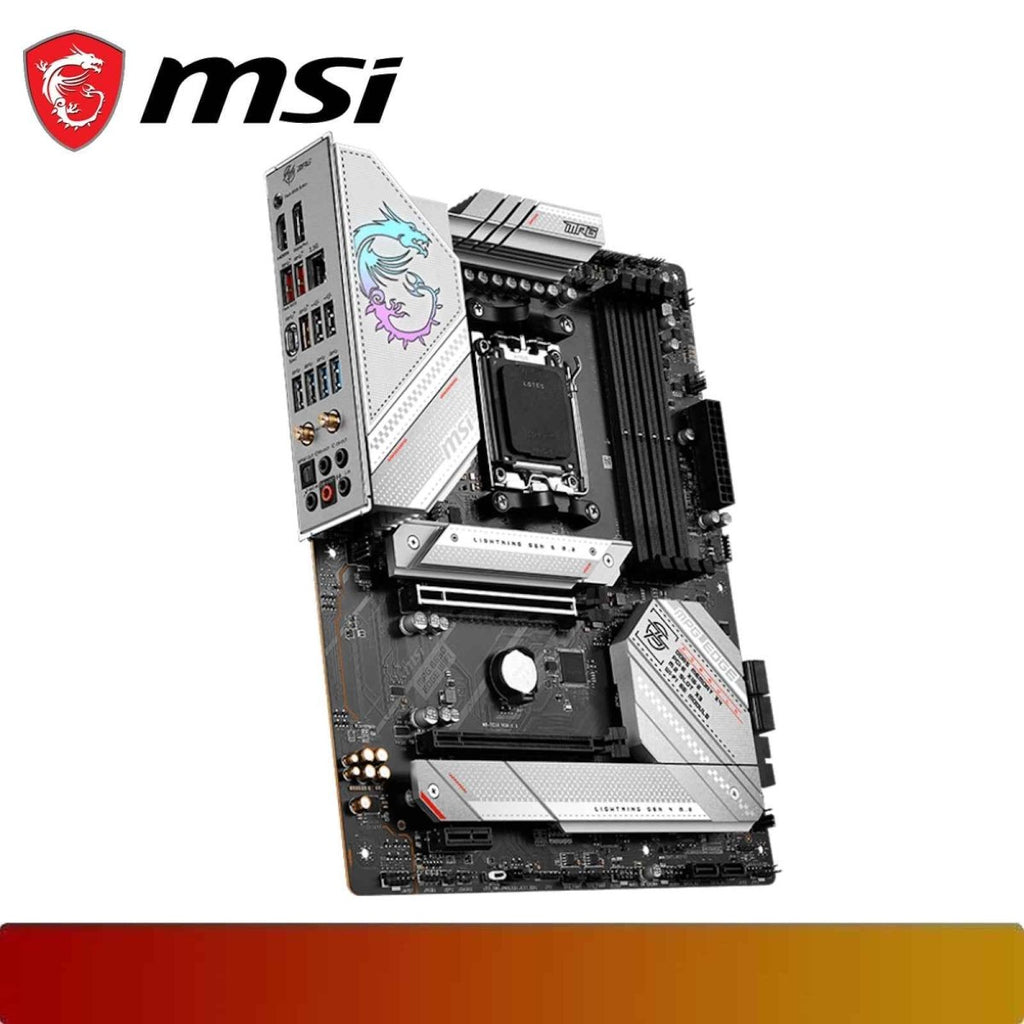

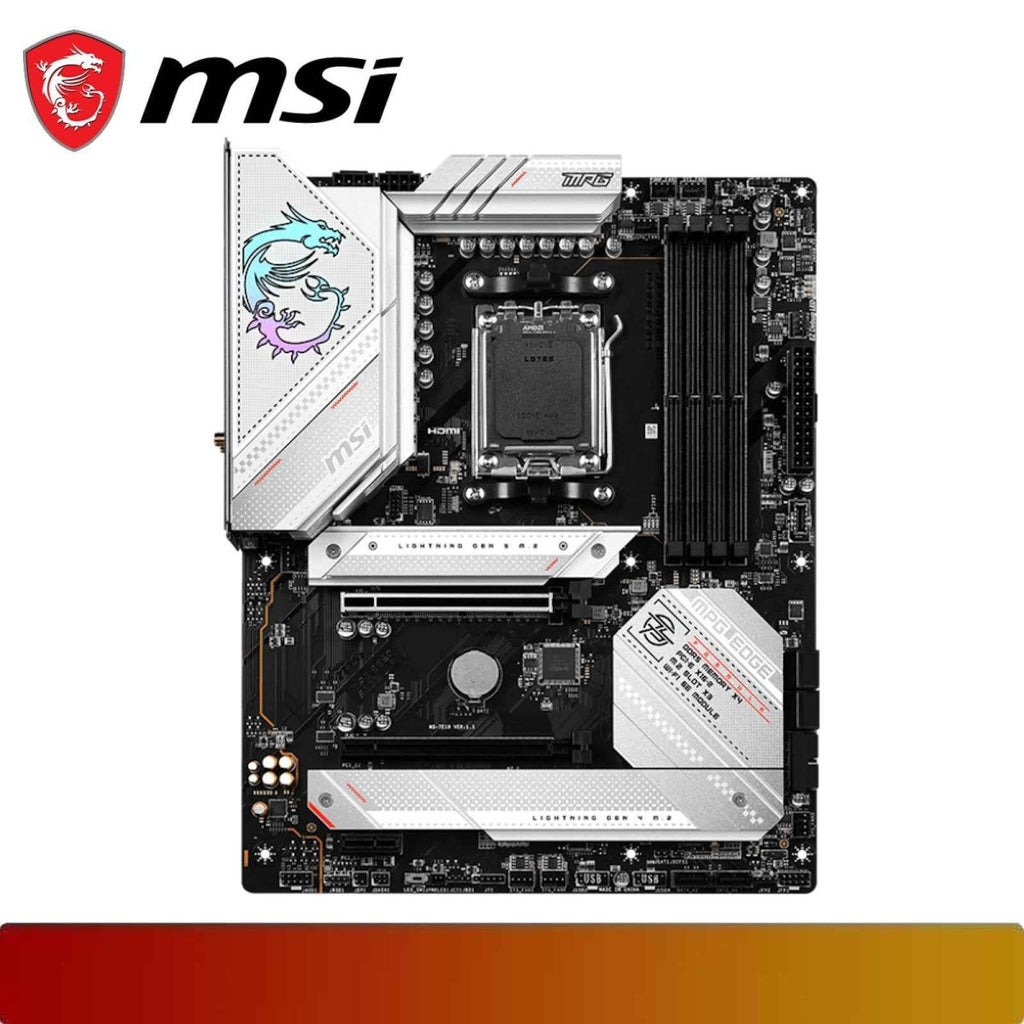

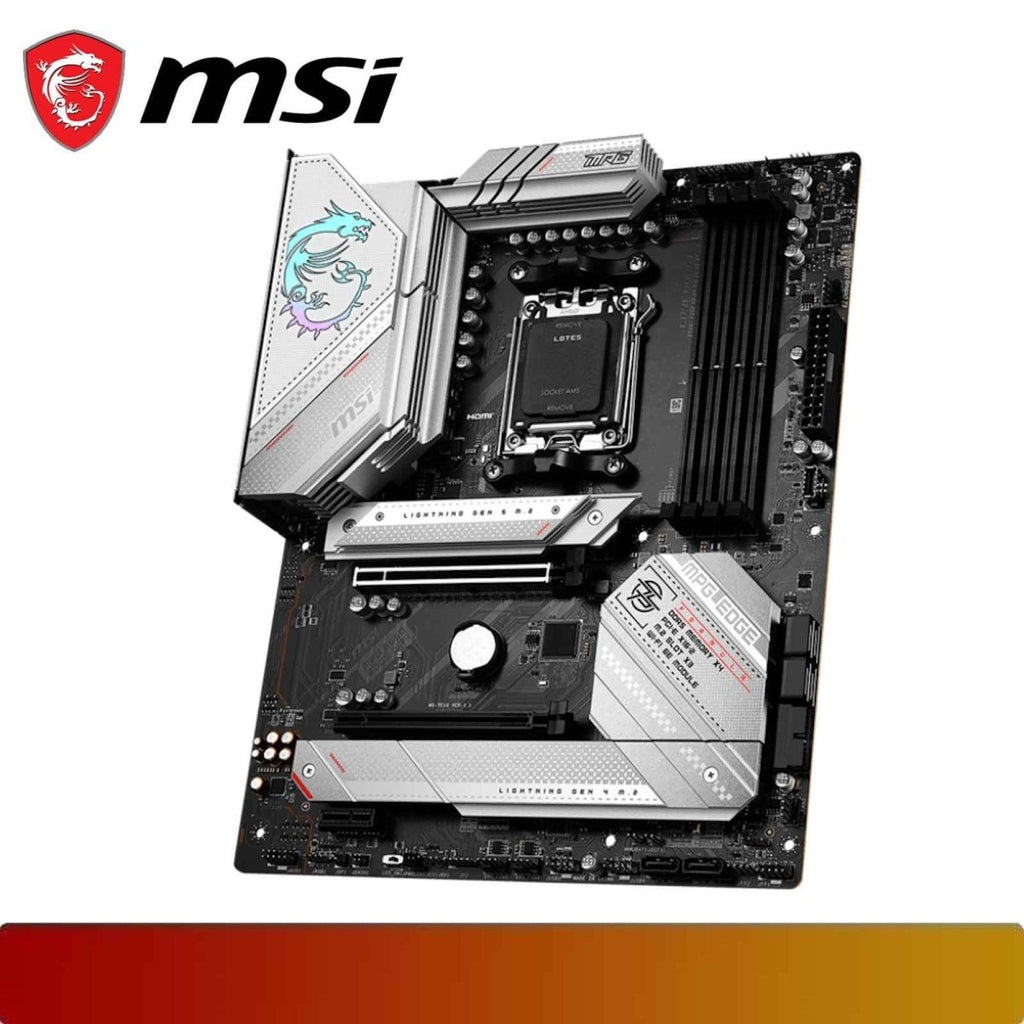

MSI MPG B650 EDGE WIFI

Name: MSI MPG B650 EDGE WIFI
Brand: MSi
Price: 5159000.0 IDR
Availability: InStock

Rp 5.159.000

Compare

Brand: MSi

SKU: 824142301074

Estimasi Berat: 2.3 kg

Category: Motherboard

Sub Category: for AMD Processor

AMD B650 Chipset, 4x DDR5 DIMM, Maximum Memory 256GB, Total 3 Slot NVMe, WiFi 6E, , Support Desktop Processors Socket AMD AM5, ATX Form Factor

1 left

Also available at:

Chipset	AMD B650
CPU Socket	Socket AM5 (Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors)
Form Factor	ATX
Memory (DDR5)	4x DDR5 DIMMs, Maximum Memory Capacity 256GB Memory Speed Support: DDR5 up to 7600+(OC) MHz Max overclocking frequency: 1) 1DPC 1R Max speed up to 7600+ MHz 2) 1DPC 2R Max speed up to 6400+ MHz 3) 2DPC 1R Max speed up to 6400+ MHz 4) 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode, non-ECC un-buffered memory, and AMD EXPO™
Onboard Graphics	1x HDMI™ (Supports HDMI™ 2.1 FRL, max resolution 4K 60Hz) 1x DisplayPort 1.4 (max resolution 4K 60Hz) *Requires a processor with integrated graphics.
Expansion Slots	1x PCI-E x16 slot (PCI_E1 Gen PCIe 4.0, runs at x16/x8/x4 mode) 1x PCI-E x16 slot (PCI_E3 Gen PCIe 3.0, runs at x4 mode) 1x PCI-E x1 slot (PCI_E2 Gen PCIe 3.0)
Audio	Realtek® ALC4080 Codec, 7.1-Channel HD Audio with Audio Boost 5
Storage	3x M.2 slots (M.2\_1 and M.2\_3 support PCIe 4.0 x4; M.2\_2 supports PCIe 4.0 x4) 6x SATA 6G ports
Networking	LAN: Realtek® RTL8125BG 2.5Gbps LAN Wireless/Bluetooth: AMD Wi-Fi 6E (pre-installed module) & Bluetooth® 5.3
RAID Support	Supports RAID 0, RAID 1, and RAID 10 for SATA and RAID 0, RAID 1 for M.2 NVMe devices.

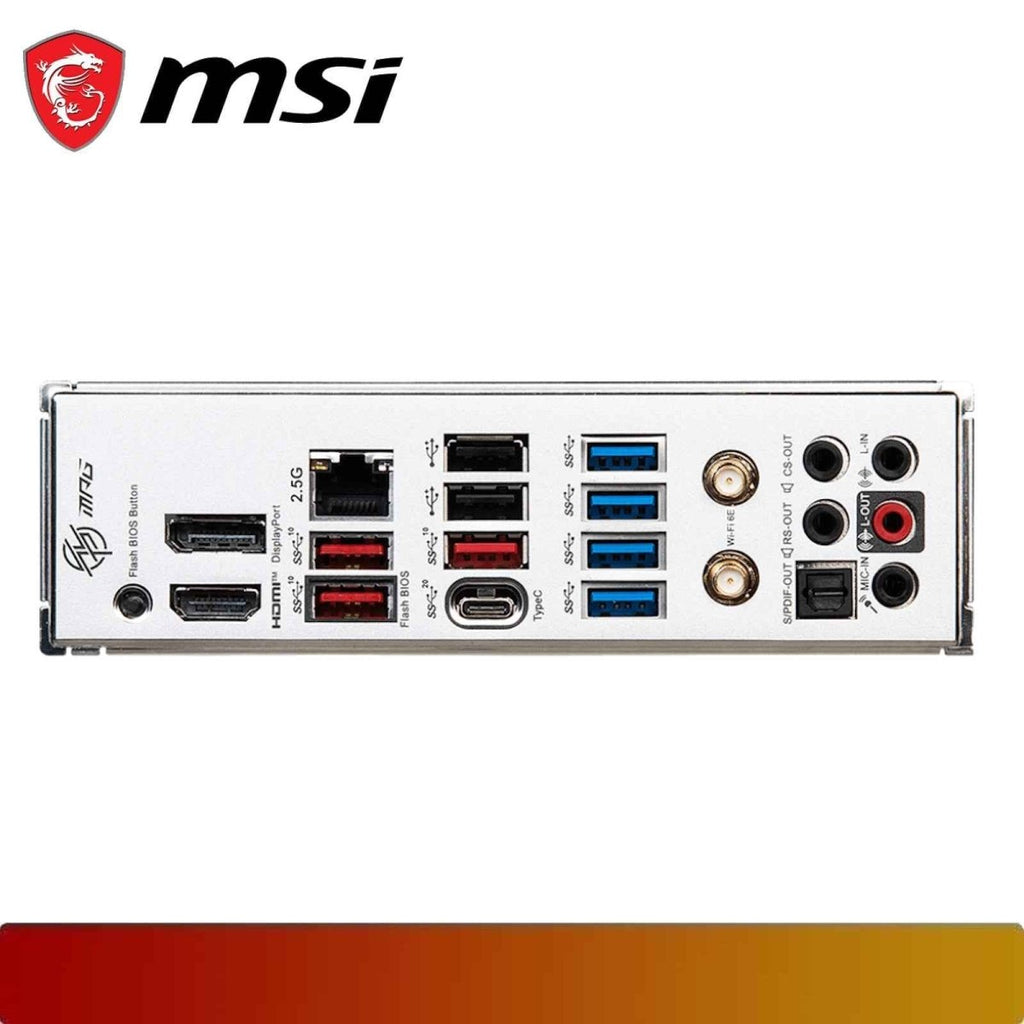

USB Ports	Rear Panel Ports: 1x USB-C 20Gbps (USB 3.2 Gen 2x2), 3x USB-A 10Gbps, 4x USB-A 5Gbps. Front/Internal Headers: 1x USB-C 10Gbps header, 2x USB-A 5Gbps headers (supports 4 ports), 2x USB 2.0 headers (supports 4 ports).
LED Feature	EZ Debug LED
Operating System	Supports Windows® 11 64-bit, Windows® 10 64-bit
