MSI PRO B650M-A WIFI

Name: MSI PRO B650M-A WIFI
Brand: MSi
Price: 2329000.0 IDR
Availability: OutOfStock

Rp 2.329.000

Compare

Brand: MSi

SKU: 824142301043

Estimasi Berat: 1.8 kg

Category: Motherboard

Sub Category: for AMD Processor

AMD B650, 4x DDR5 UDIMM, Maximum Memory 256GB, Total 2 Slot NVMe, WiFi 6E, Bluetooth 5.3, Support Desktop Processors Socket AMD AM5, Micro ATX Form Factor

Out of stock

Also available at:

SOCKET	AM5
CHIPSET	AMD B650
FORM FACTOR	mATX (243.84mm x 243.84mm)
CPU SUPPORT	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
MEMORY SLOTS	4x DDR5 DIMMs, Maximum Memory Capacity 256GB
MEMORY SUPPORT	DDR5 7200+(OC) to 4800(JEDEC) MHz. Supports Dual-Channel, non-ECC, un-buffered memory, AMD EXPO.
PCI-E X16 SLOTS	2 (PCIe 4.0 x16 from CPU; PCIe 4.0 x4 from Chipset)
PCI-E X1 SLOT	1 (PCIe 3.0 from Chipset)
M.2 SLOTS	2 (M2_1 from CPU: PCIe 4.0 x4, supports 2280/2260; M2_2 from CPU: PCIe 4.0 x4, supports 2280/2260. Note: M2_2 unavailable with Ryzen™ 8500/ 8300 Series processors)
SATA 6G PORTS	4
RAID SUPPORT	RAID 0, 1, 10 for SATA; RAID 0, 1 for M.2 NVMe devices
ONBOARD GRAPHICS PORTS	HDMI™ 2.1 x 1 (Max. 4K 60Hz) DisplayPort 1.4 x 1 (Max. 4K 60Hz) *Available only on processors featuring integrated graphics.
AUDIO	Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
LAN	Realtek® 8125BG 2.5G LAN
WIFI & BLUETOOTH	AMD Wi-Fi 6E (802.11 a/ b/ g/ n/ ac/ ax), Dual Band (2.4GHz/ 5GHz/ 6GHz). Bluetooth® 5.3.

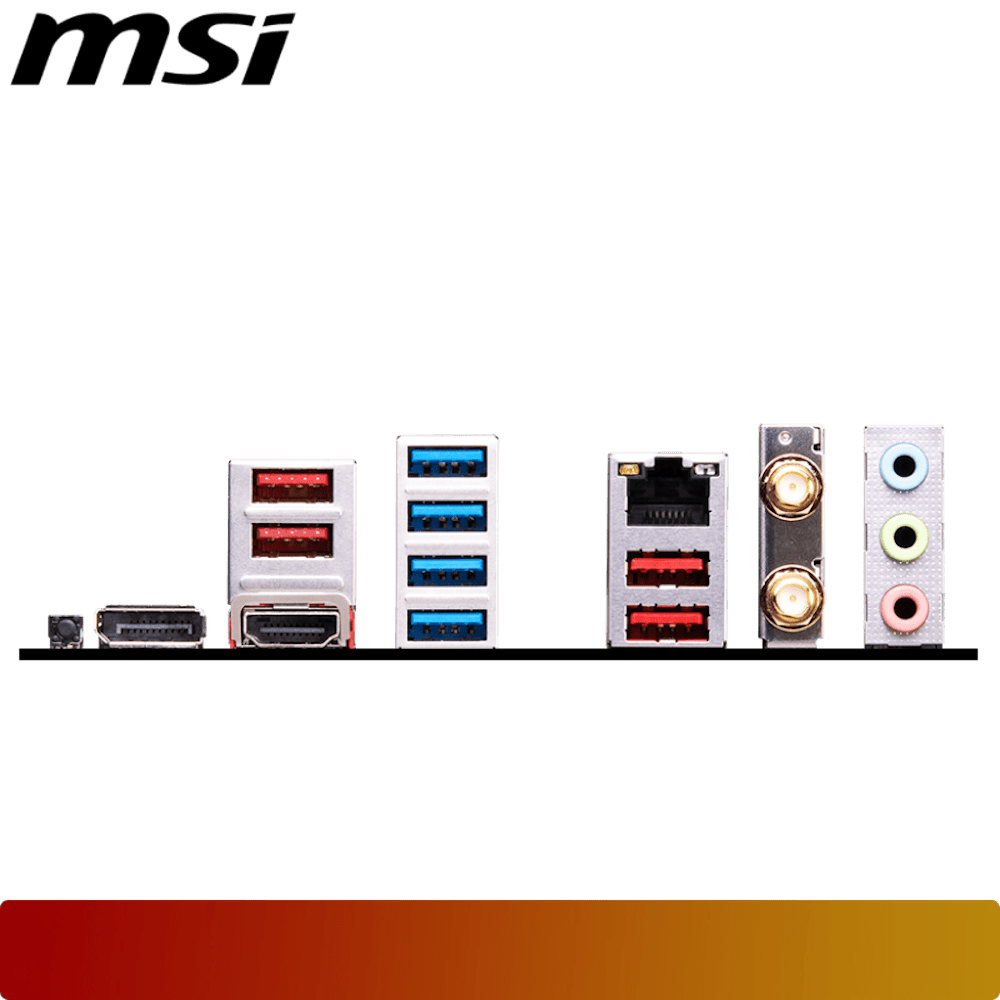

REAR USB PORTS	4x USB 3.2 Gen 2 10Gbps Type-A 4x USB 3.2 Gen 1 5Gbps Type-A
FRONT USB CONNECTORS	1x USB 3.2 Gen 2 10Gbps Type-C 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports 2 ports) 2x USB 2.0 connectors (supports 4 ports)
LED FEATURE	4x EZ Debug LED
TPM (HEADER)	1
SERIAL PORTS (FRONT)	1
OPERATING SYSTEM SUPPORT	Windows® 11 64-bit, Windows® 10 64-bit
