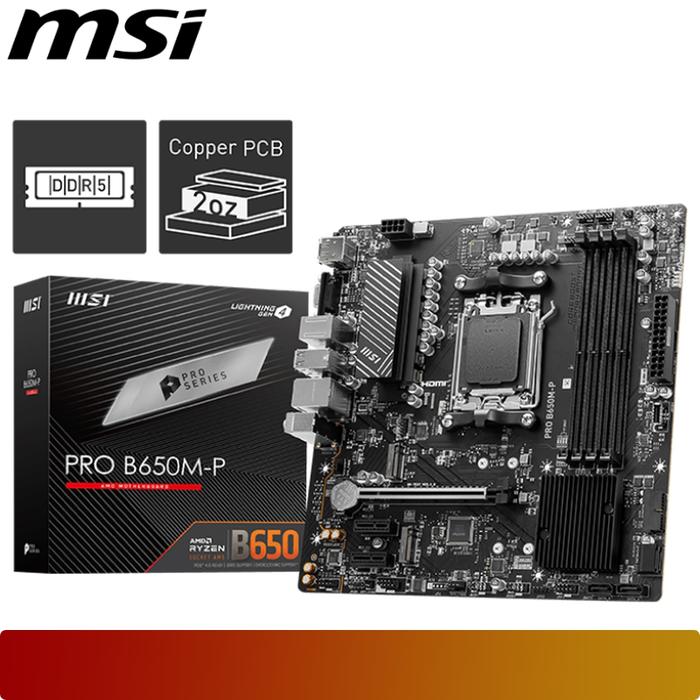

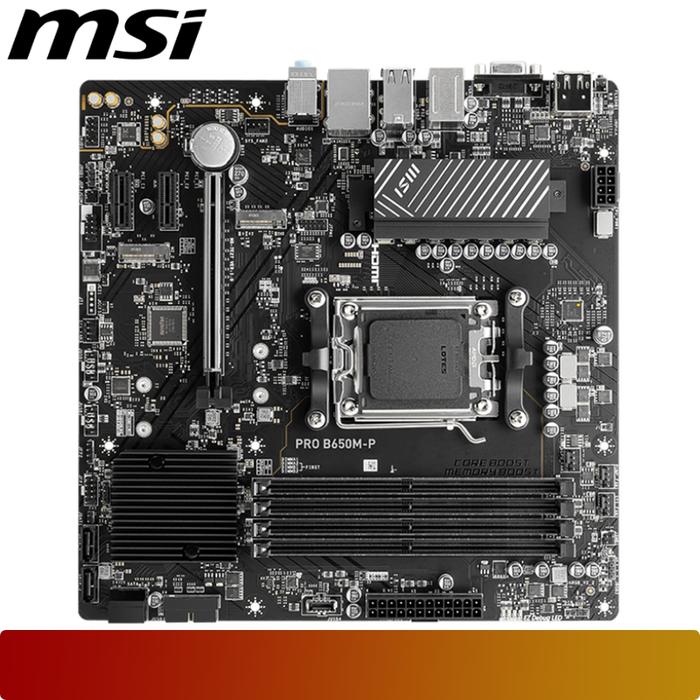

MSI PRO B650M-P
Rp 2.029.000
Also available at:
Product description
| SOCKET | AM5 |
| CHIPSET | AMD B650 |
| FORM FACTOR | mATX (243.84mm x 243.84mm) |
| CPU SUPPORT | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| MEMORY SLOTS | 4x DDR5 DIMMs, Maximum Memory Capacity 256GB |
| MEMORY SUPPORT | DDR5 7200+(OC) to 4800(JEDEC) MHz. Supports Dual-Channel, non-ECC, un-buffered memory, AMD EXPO. |
| PCI-E X16 SLOT | 1 (PCIe 4.0 from CPU, supports up to x16) |
| PCI-E X1 SLOTS | 2 (PCIe 3.0 from Chipset) |
| M.2 SLOTS | 2 (M2_1 from CPU: PCIe 4.0 x4; M2_2 from Chipset: PCIe 4.0 x4. Both support 2280/2260) |
| SATA 6G PORTS | 4 |
| RAID SUPPORT | RAID 0, 1, 10 for SATA; RAID 0, 1 for M.2 NVMe devices |
| ONBOARD GRAPHICS PORTS | HDMI™ 2.1 x 1 (Max. 4K 60Hz) DisplayPort 1.4 x 1 (Max. 4K 60Hz) VGA x 1 (Max. 1920x1200 60Hz) |
| AUDIO | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | Realtek® 8125BG 2.5G LAN |

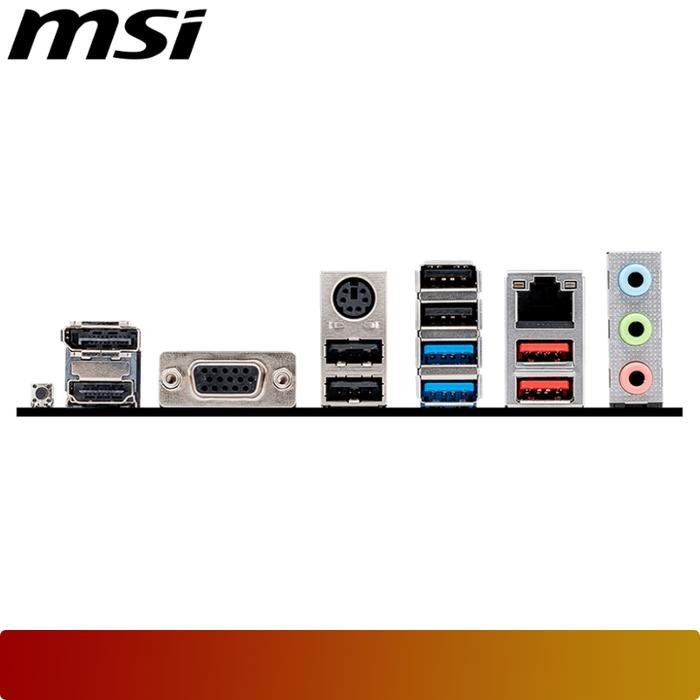

| REAR USB PORTS | 2x USB 10Gbps Type-A (USB 3.2 Gen 2) 2x USB 5Gbps Type-A (USB 3.2 Gen 1) 4x USB 2.0 |
| FRONT USB CONNECTORS | 1x USB 10Gbps Type-C 1x USB 5Gbps Type-A connector (supports 2 ports) 2x USB 2.0 connectors (supports 4 ports) |
| LED FEATURE | 4x EZ Debug LED |
| TPM (HEADER) | 1 |
| SERIAL PORTS (FRONT) | 1 |
| OPERATING SYSTEM SUPPORT | Windows® 11 64-bit, Windows® 10 64-bit |
