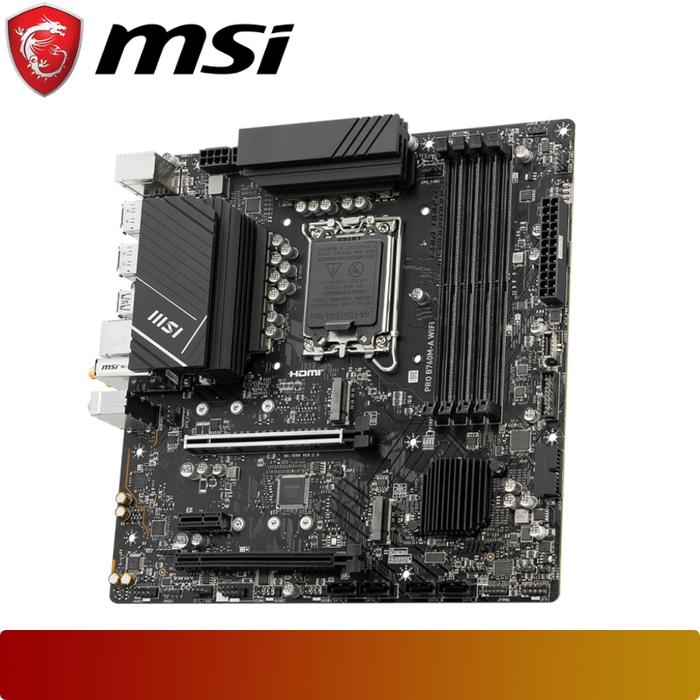

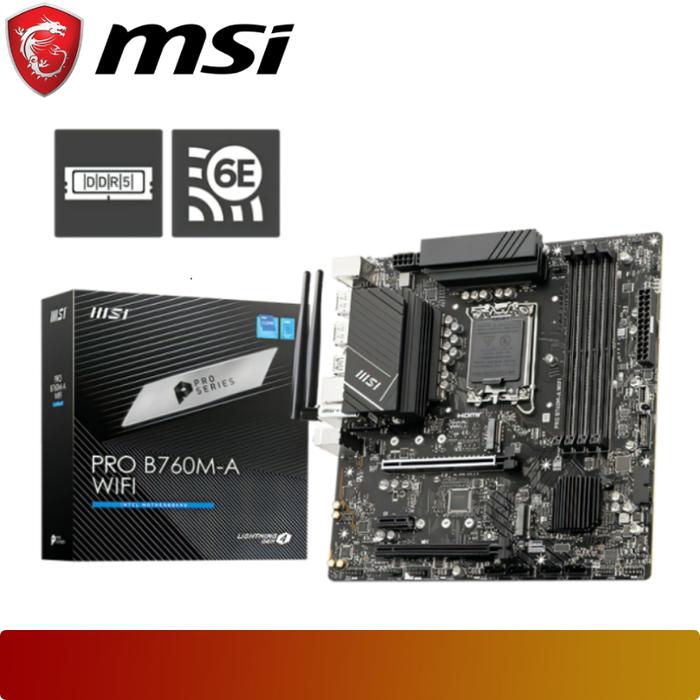

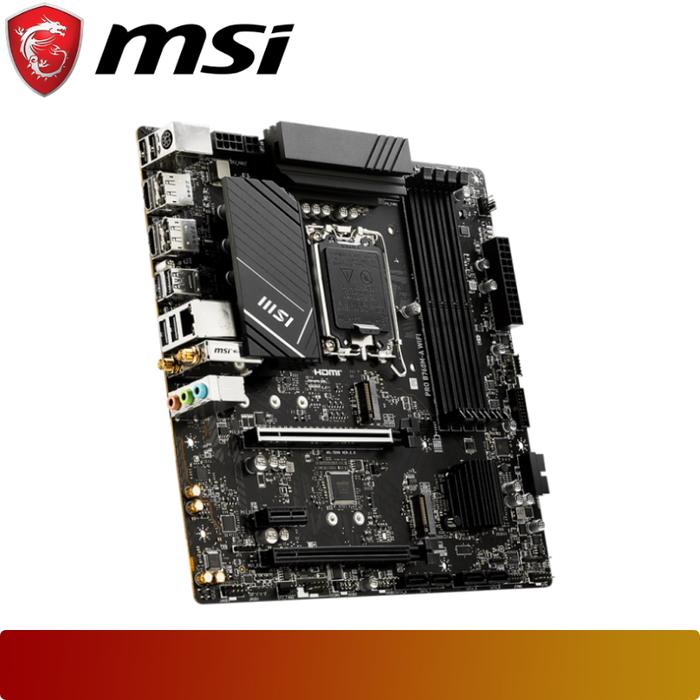

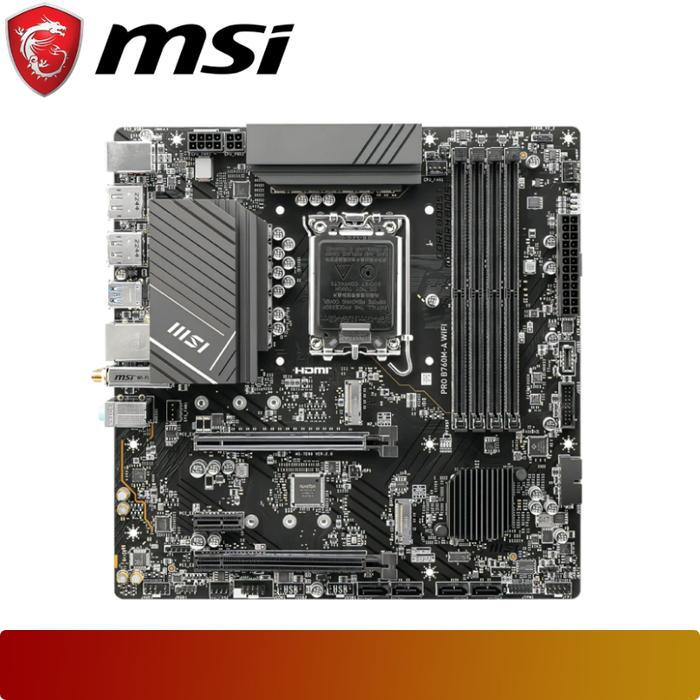

MSI PRO B760M-A WIFI

Name: MSI PRO B760M-A WIFI
Brand: MSi
Price: 2529000.0 IDR
Availability: OutOfStock

Rp 2.529.000

Compare

Brand: MSi

SKU: 824142313176

Estimasi Berat: 1.3 kg

Category: Motherboard

Sub Category: for Intel Processor

Intel B760 Chipset, 2x DDR5 DIMM, Maximum Memory 256GB, Total 2 Slot NVMe, WiFi 6E, Bluetooth 5.3, Support Desktop Processors Socket Intel LGA 1700, Micro ATX Form Factor

Out of stock

Also available at:

CHIPSET	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency:

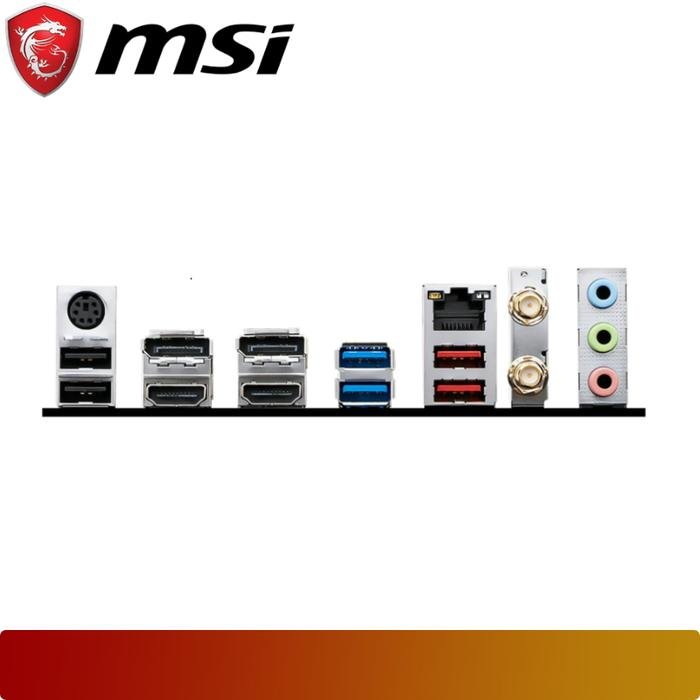

ONBOARD GRAPHICS	2x HDMI™ 2x DisplayPort
EXPANSION SLOT	2x PCI-E x16 slot 1x PCI-E x1 slot - PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE	2x M.2 - M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
LAN	Realtek® RTL8125BG 2.5G LAN
WIRELESS / BLUETOOTH	Intel® Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION	mATX 243.84mmx243.84mm
