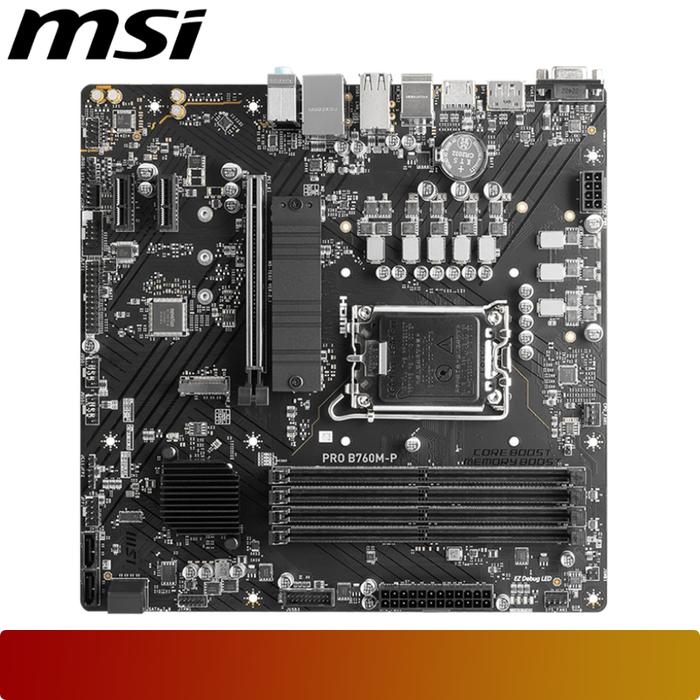

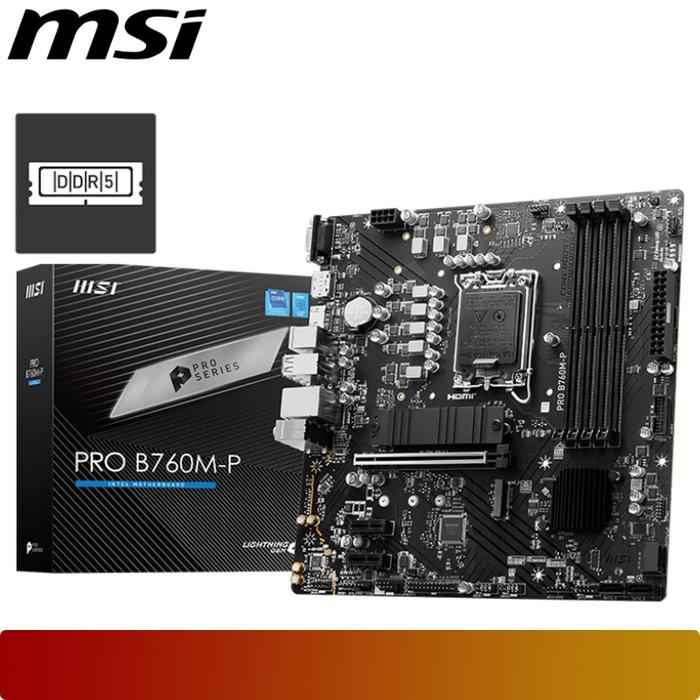

MSI PRO B760M-P
Rp 1.969.000
Also available at:
Product description
| CHIPSET | - INTEL B760 |
| CPU SUPPORT | - Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| MEMORY | - 4x DDR5, Maximum Memory Capacity 192GB - Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz - Supports Intel XMP 3.0 OC - Supports Dual-Controller Dual-Channel mode - Supports non-ECC, un-buffered memory |

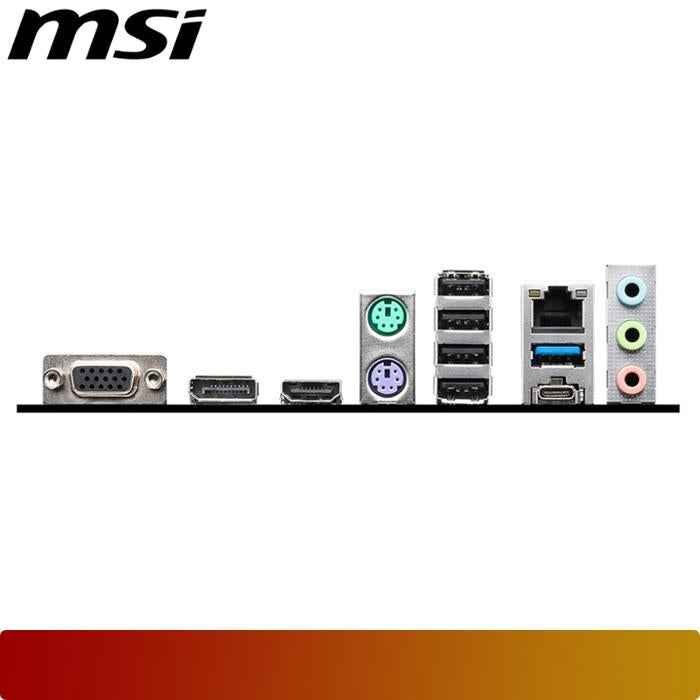

| ONBOARD GRAPHICS | - 1x HDMI - 1x DisplayPort - 1x VGA - Support HDMI 1.4, maximum resolution of 4K 30Hz* - Support DP 1.4, maximum resolution of 4K 60Hz* - Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| EXPANSION SLOT | - 1x PCI-E x16 slot - 2x PCI-E x1 slot - PCI_E1 PCIe 4.0 supports up to x16 (From CPU) - PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) - PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| STORAGE | - 2x M.2 slot - M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices - M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices - 4x SATA 6G port |
| LAN | - Realtek RTL8111H Gigabit LAN |
| AUDIO | - Realtek ALC897 Codec - 7.1-Channel High Definition Audio |
| OPERATING SYSTEM | - Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB DIMENSION | - mATX - 243.84mmx243.84mm |
