Name: MSI PRO B840M-B
Brand: MSi
Price: 1699000.0 IDR
Availability: InStock

Rp 1.699.000

Compare

SKU: 824142430972

Estimasi Berat: 2.0 kg

AMD B840 Chipset, 2x DDR5 DIMM, Maximum Memory 128GB, Total 2 Slot NVMe, Support Desktop Processors Socket AMD AM5, Micro ATX Form Factor

3 left

Chipset	AMD B840
CPU Socket	Socket AM5 (Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors)
Form Factor	Micro-ATX (mATX)
Memory (DDR5)	2x DDR5 UDIMM slots, Maximum Memory Capacity 128GB Memory Speed Support: DDR5 up to 8000+(OC) MT/s / 5600 - 4800 (JEDEC) MT/s Max overclocking frequency for Ryzen™ 9000 Series Processors: 1) 1DPC 1R Max speed up to 8000+ MT/s 2) 1DPC 2R Max speed up to 7200+ MT/s Supports Dual-Channel mode, Non-ECC, Un-buffered memory, and AMD EXPO™
Onboard Graphics	1x HDMI™ (Supports HDMI™ 2.1, max resolution 4K 60Hz) 1x VGA (Max resolution 2048x1536 50Hz) *Available only on processors featuring integrated graphics.
Expansion Slots	1x PCI-E x16 slot (PCIe 4.0, from CPU) 1x PCI-E x1 slot (PCIe 3.0, from Chipset)
Audio	Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage	2x M.2 slots (Both support PCIe 4.0 x4) 4x SATA 6G ports
Networking (LAN)	Realtek® 8125D 2.5G LAN
RAID Support	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices. Supports RAID 0 and RAID 1 for M.2 NVMe storage devices.

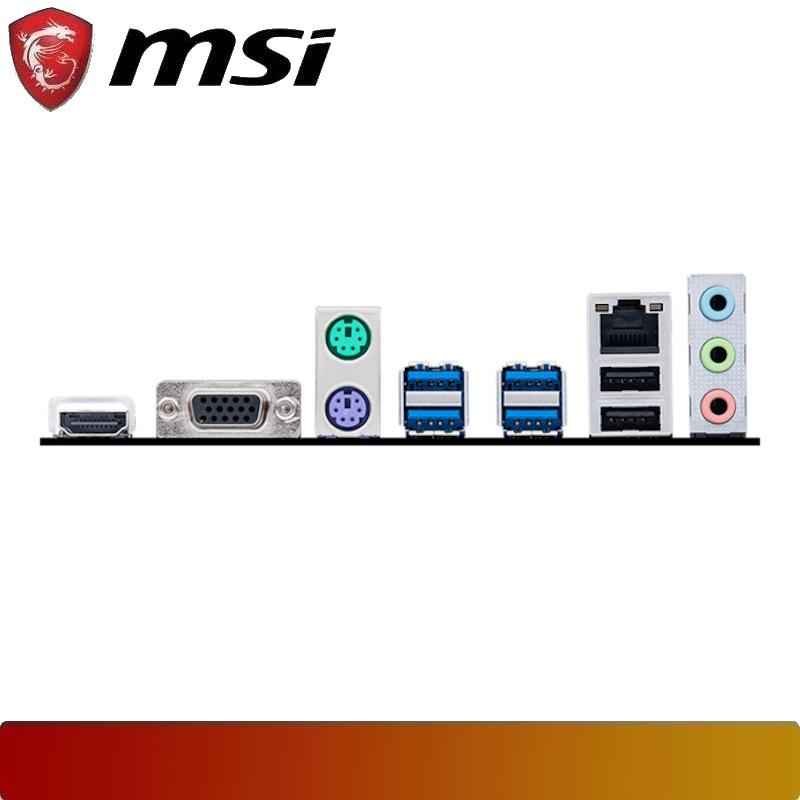

USB Ports	Rear Panel Ports: 4x USB 5Gbps Type A, 2x USB 2.0. Front/Internal Headers: 4x USB 2.0 (via 2 headers), 2x USB 5Gbps Type A (via 1 header), 1x USB 5Gbps Type C (via 1 header).
LED Feature	4x EZ Debug LED, 1x EZ Memory Detection LED
Operating System	Supports Windows® 11 64-bit
