NOCTUA NA-FH1

Name: NOCTUA NA-FH1
Brand: Noctua
Price: 459000.0 IDR
Availability: InStock

Rp 459.000

Compare

Brand: Noctua

SKU: 841501121401

Estimasi Berat: 0.5 kg

Category: Cooler

Sub Category: Cooler Accessories

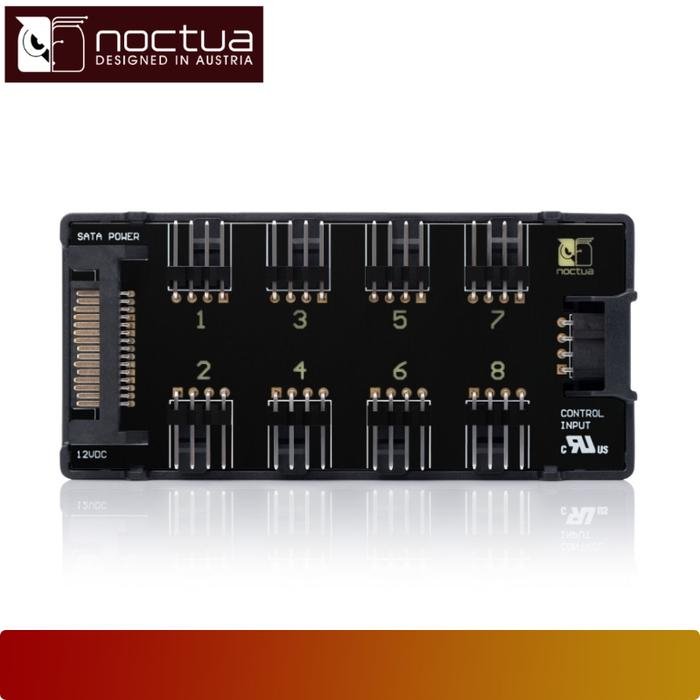

The NA-FH1 is a high-quality, smartly-protected 8 channel PWM fan hub that allows up to eight PWM fans to be run and controlled simultaneously via a single PWM motherboard fan header or stand-alone controllers such as the optional NA-FC1. Non-PWM fans can be controlled by adjusting the input voltage. Supporting both 12V and 5V fans with 4-pin PWM and 3-pin connectors, the NA-FH1 is highly flexible and suitable both for PC environments and other 12V- or 5V-based applications. It can be powered either via its S-ATA input (for 12V fans, up to 54W) or 4-pin PWM input (for 5V and 12V fans, up to 24W),

5 left

Also available at:

Key specifications
- Colour : Black

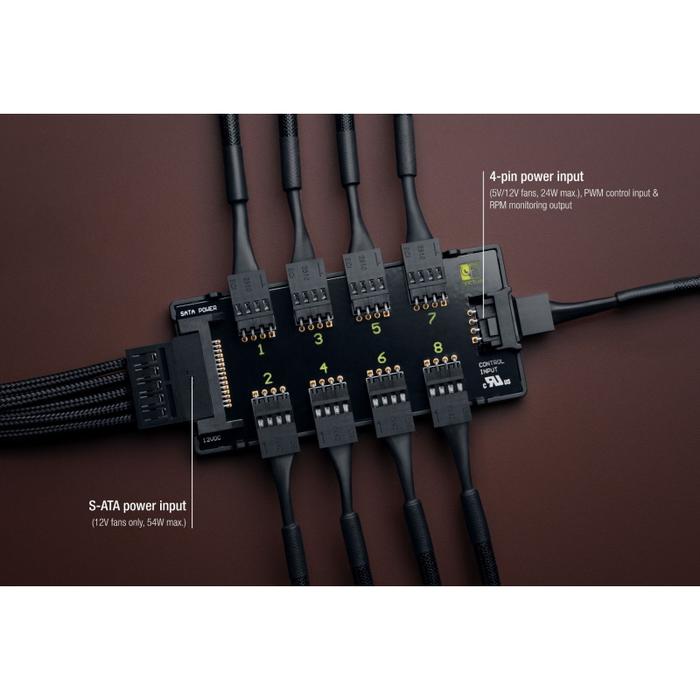

- Input connector : S-ATA, 4-pin PWM
- Fan connector : 4-pin PWM
- Max. power via S-ATA input : 54 W
- Max. power via 4-pin PWM input : 24 W
- Operating voltage : 5-12V
- Size : 93 x 43 x 12.5 mm
- Fan compatibility : All Noctua 12V and 5V fans, many third party fans
- Warranty : 6 years

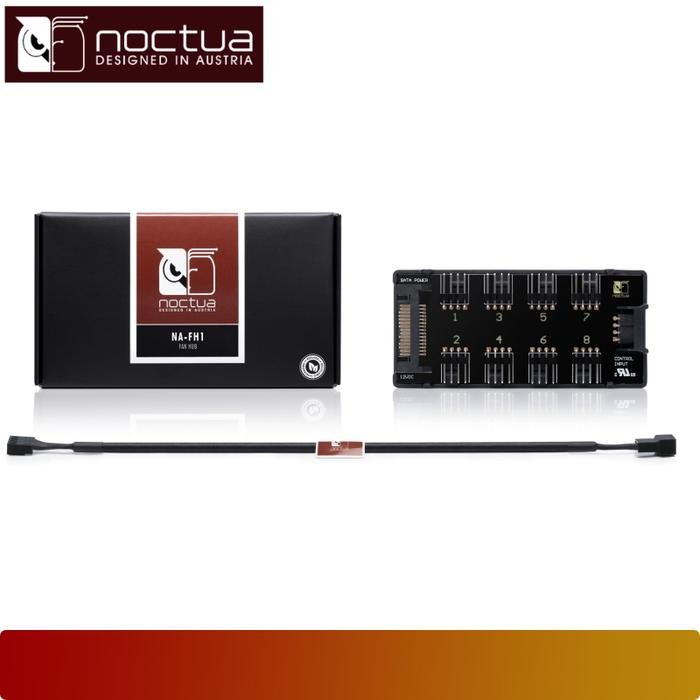

Scope of delivery
- NA-FH1 fan hub
- NA-EC1 4-pin PWM input cable

Safety, compliance & environmental specifications
- Operating temperature : -40°C to +60°C
- Flammability class : UL-94 V-0
