Stock: 14

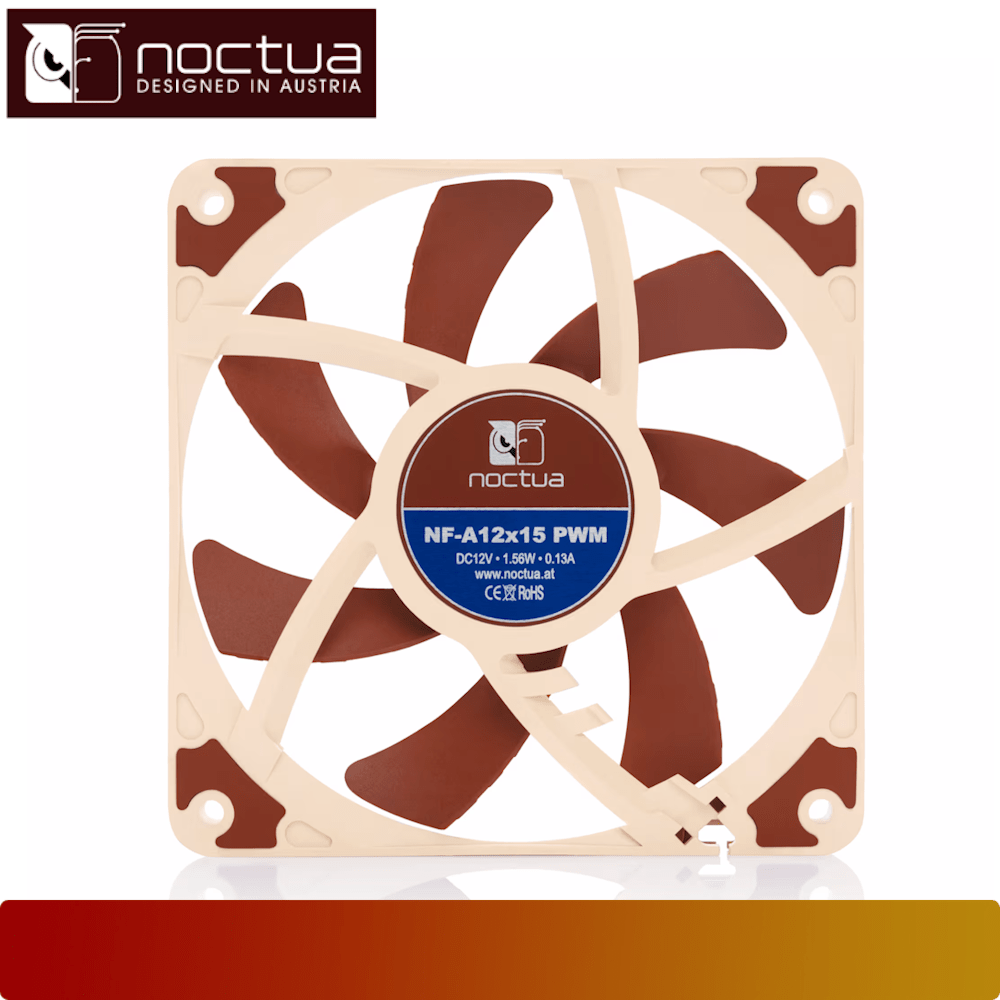

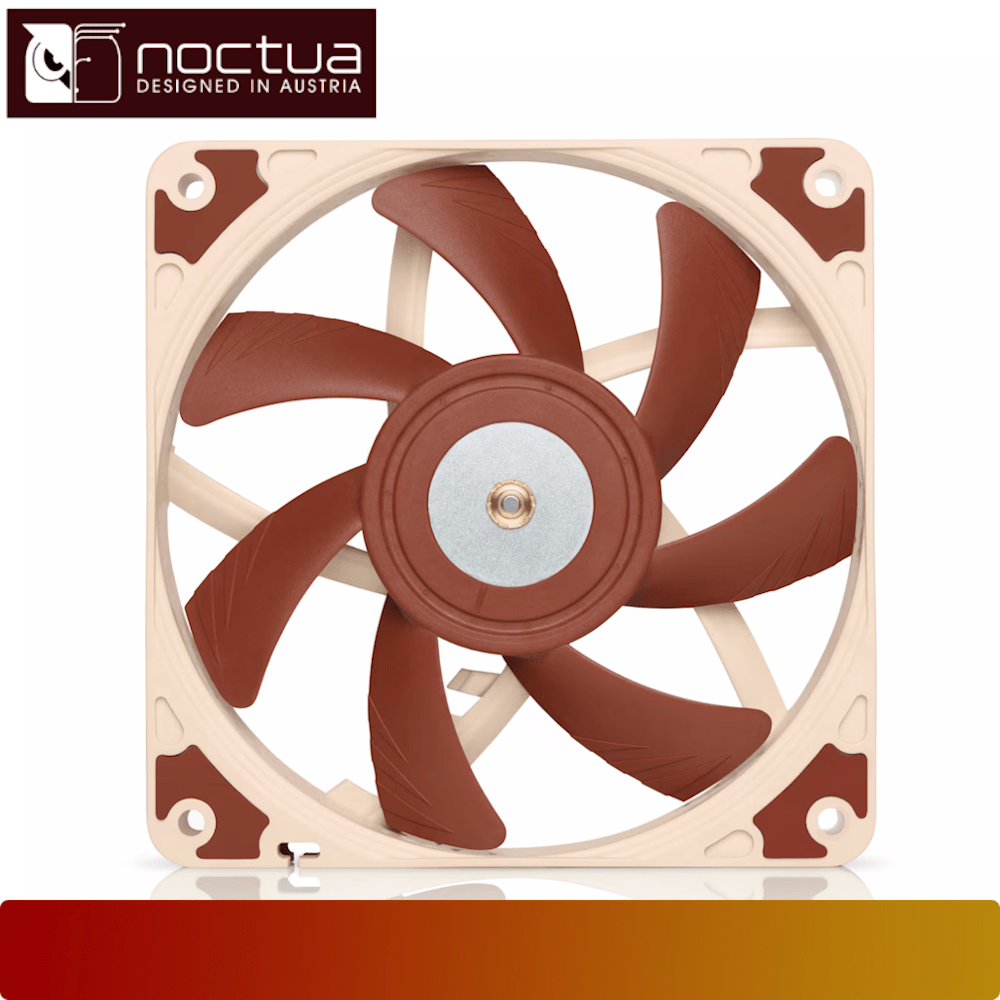

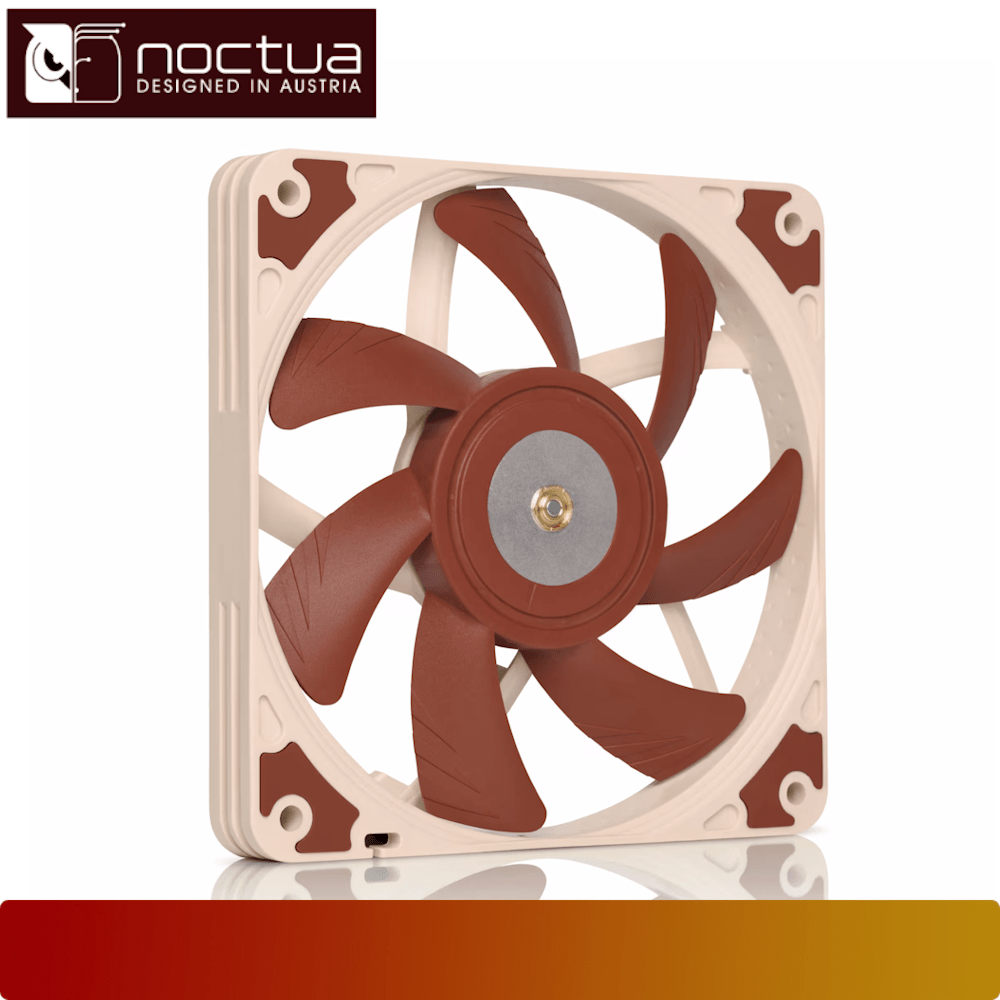

NOCTUA NF-A12x15 PWM
Rp 289.000
Also available at:
Product description
| General |
- Size (Form factor) : 120 x 120 x 15 mm - Speed range : 0 – 1850 rpm - Airflow (max.) : 94.2 m³/h (55.44 CFM) - Acoustical noise (max.) : 23.9 dB(A) - Static pressure (max.) : 1.53 mm H₂O - Rated voltage : 12 V - Input power (typical) : 1.27 W - Connector : 4-pin - Colour : Brown - Warranty : 6 years |
| Scope of delivery |

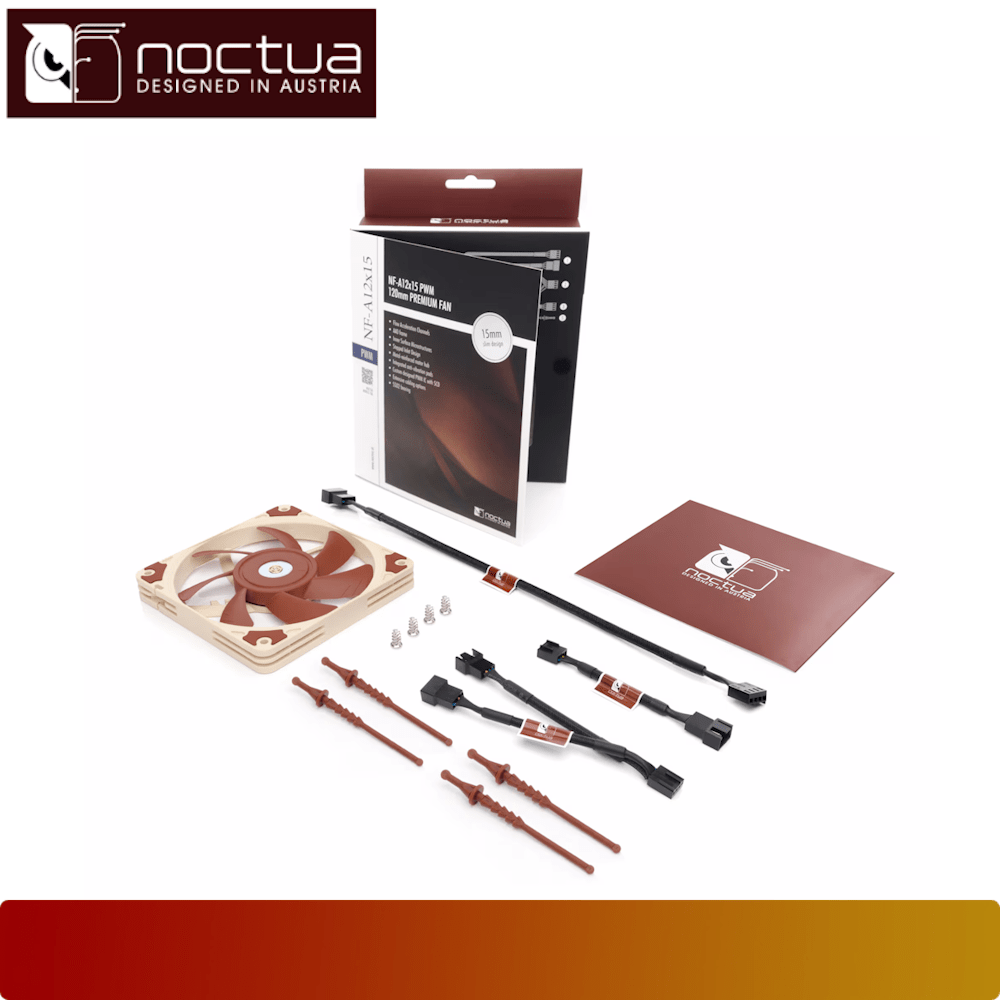

- NA-RC7 Low-Noise Adaptor (L.N.A.) - NA-YC1 4-pin PWM splitter cable - NA-EC1 30cm extension cable - 4x NA-AV3 anti-vibration mounts - Fan screws |
| Mechanical spec |
- Dimensions without anti-vibration pads : 120 x 120 x 15 mm - Dimensions with anti-vibration pads : 120 x 120 x 16 mm - Frame shape : Square - Mounting hole spacing(s) : 105 x 105 mm - Material anti-vibration pads : Silicone rubber - Bearing : SSO2 - Connector type : A2543-4PIN (or equal) - Wire : 28 AWG - Sleeving : Fibreglass silicone mesh |
| Performance spec |
- Rotational speed (max.) : 1850 rpm - Rotational speed with LNA (max.) : 1400 rpm - Rotational speed @ 20% PWM : 450 rpm - Rotational speed @ 0% PWM : 0 rpm - Acoustical noise (max.) : 23.9 dB(A) - Acoustical noise with LNA (max.) : 16.8 dB(A) - Airflow (max.) : 94.2 m³/h (55.44 CFM) - Airflow with LNA (max.) : 70.8 m³/h (41.67 CFM) - Static pressure (max.) : 1.53 mm H₂O - Static pressure with LNA (max.) : 0.9 mm H₂O |
Warranty
Product Info
Nano Komputer
.
Produk resmi dan original
.
