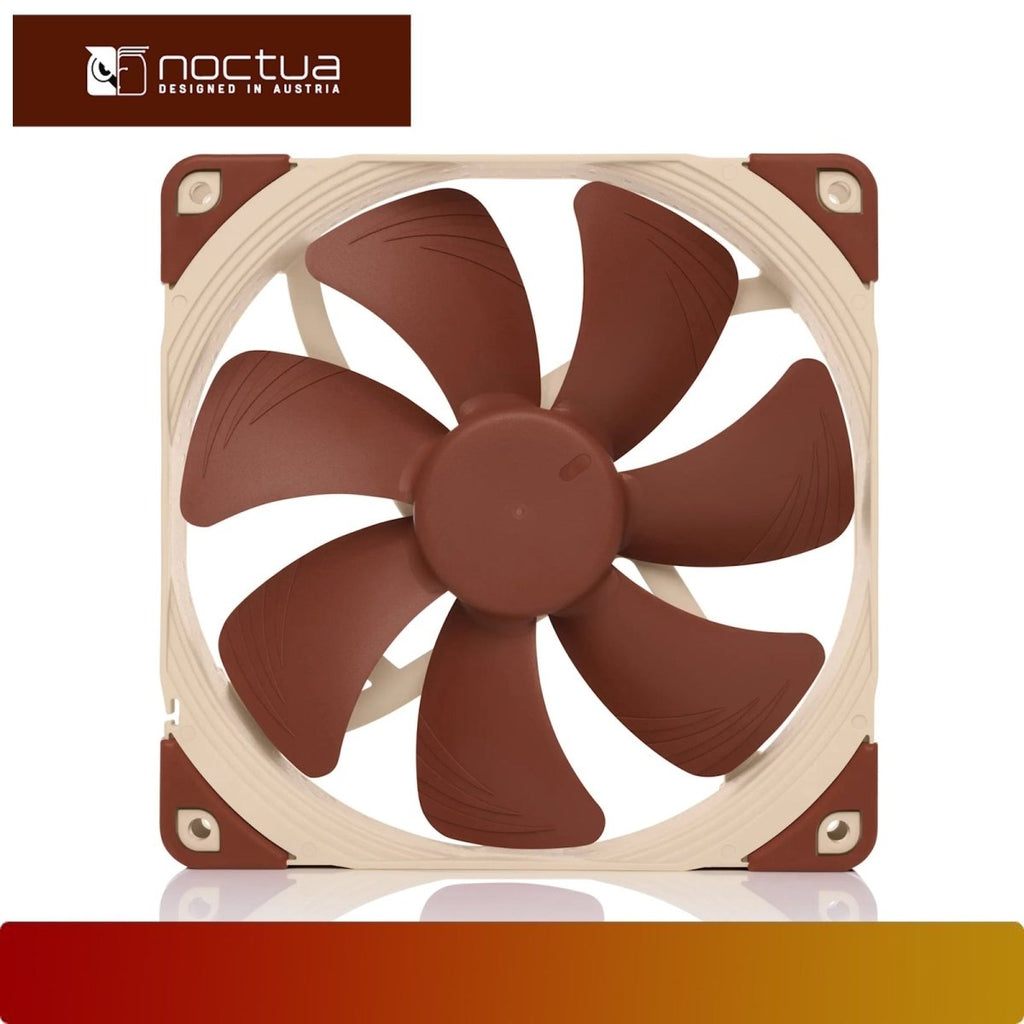

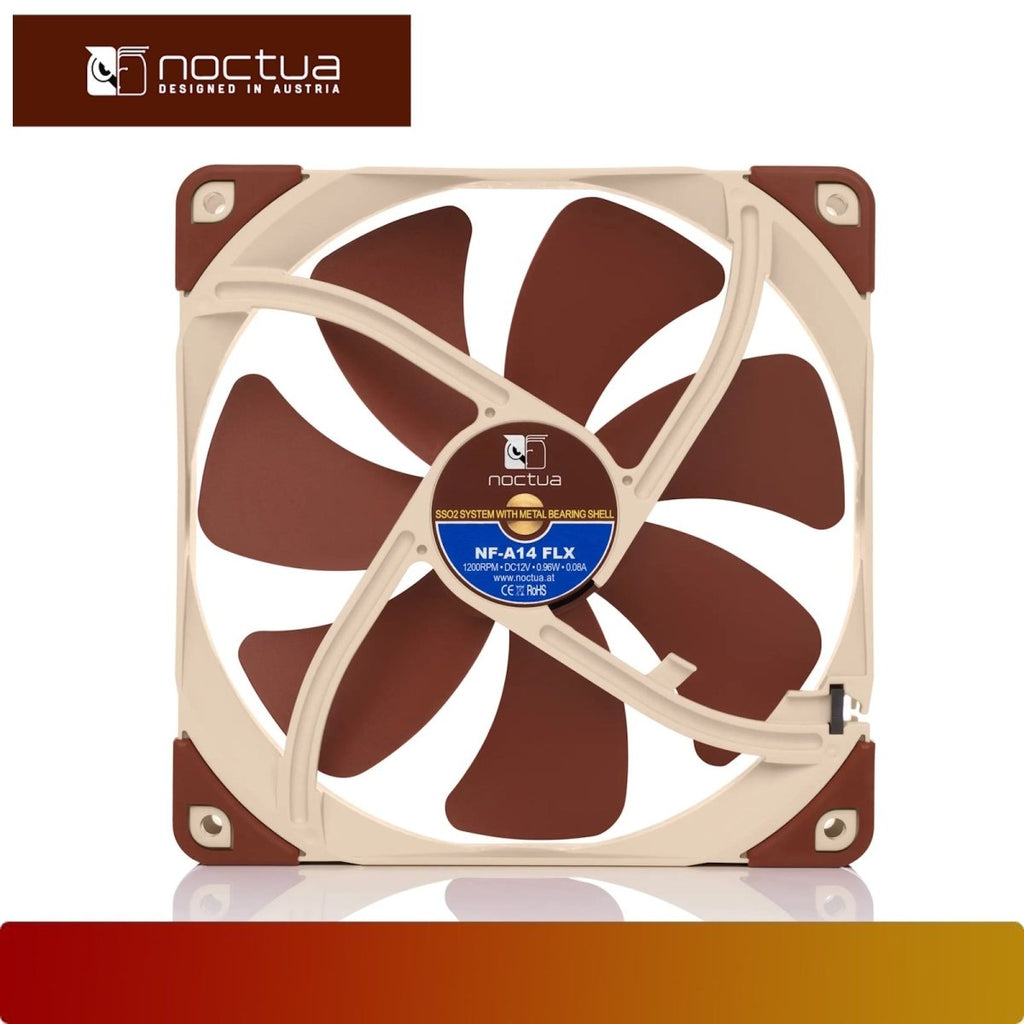

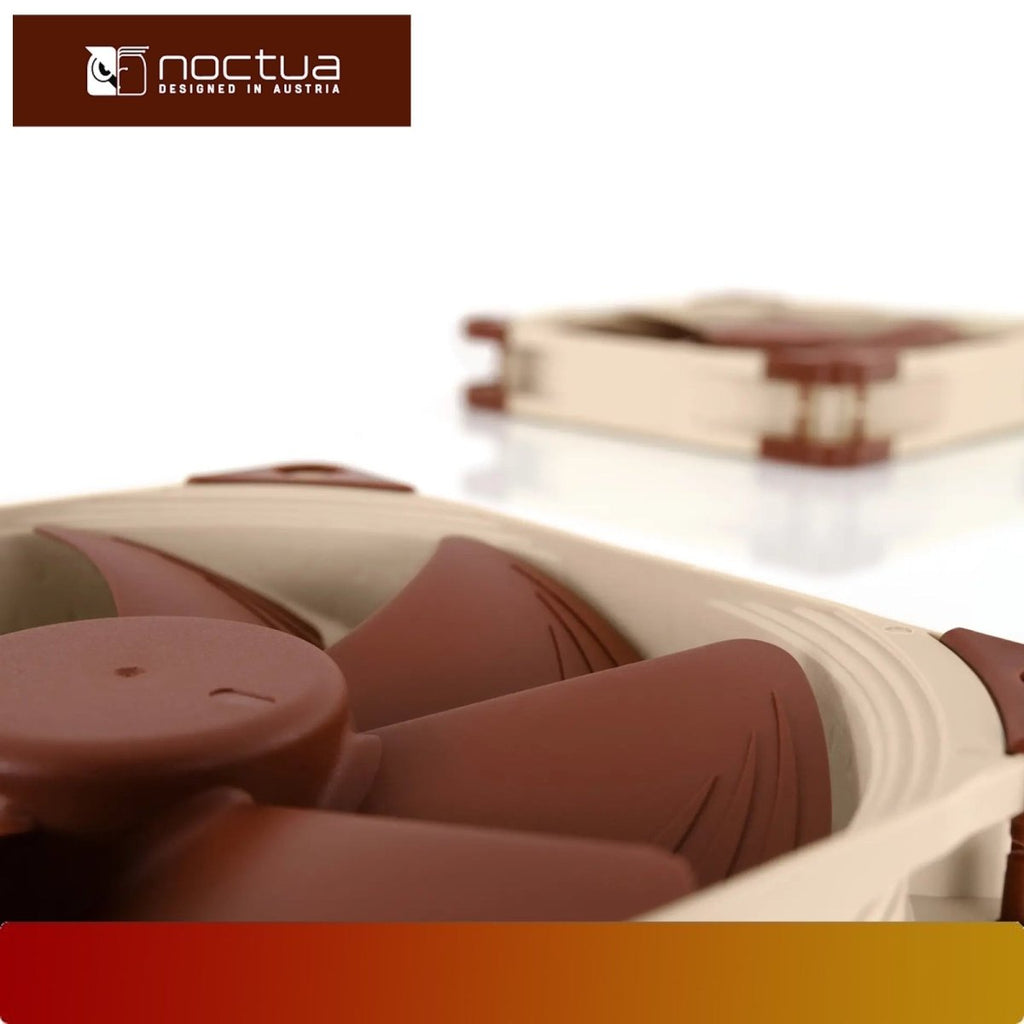

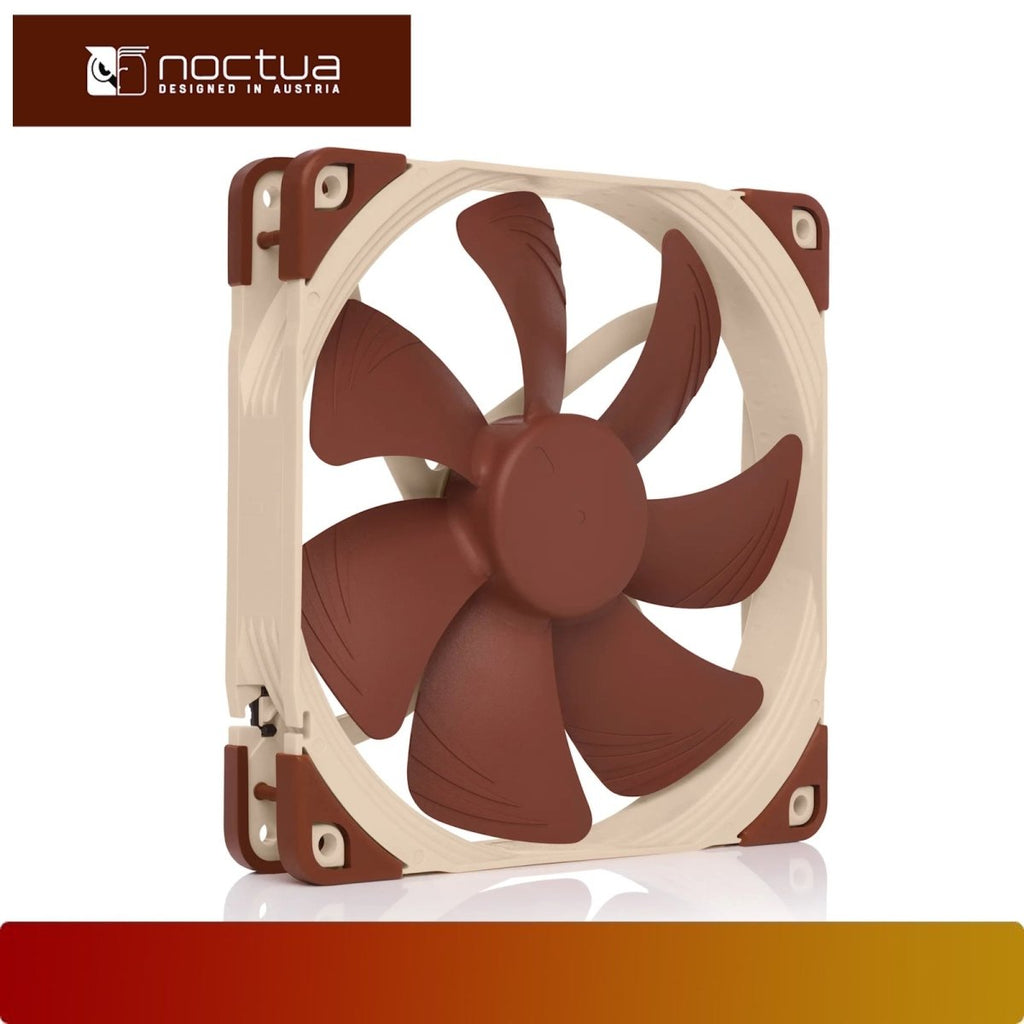

NOCTUA NF-A14 FLX

Key specifications
- Size (Form factor) : 140 x 140 x 25 mm (square)
- Speed range : 0 – 1200 rpm
- Airflow (max.) : 115.5 m³/h (67.98 CFM)
- Acoustical noise (max.) : 19.2 dB(A)
- Static pressure (max.) : 1.51 mm H₂O
- Rated voltage : 12 V
- Input power (typical) : 0.528 W
- Connector : 3-pin
- Colour : Brown
- Warranty : 6 years

Scope of delivery
- NA-RC10 Low-Noise Adaptor (L.N.A.)
- NA-RC11 Ultra-Low-Noise Adaptor (U.L.N.A)
- NA-AC1 3:4-pin adaptor cable
- NA-EC2 30cm extension cable
- 4x NA-AV1 anti-vibration mounts
- Fan screws

Mechanical specifications
- Dimensions without anti-vibration pads : 140 x 140 x 25 mm
- Dimensions with anti-vibration pads : 141 x 141 x 27 mm
- Frame shape : Square
- Mounting hole spacing(s) : 124.5 x 124.5 mm
- Bearing : SSO2
- Connector type : 2510-3PIN (or equal)
- Cable length : 200 mm
- Cable length with extension cable (included) : 500 mm
- Wire : 24 AWG
- Sleeving : Fibreglass silicone mesh
- Included adaptors : P-ATA (Molex)

Performance specifications
- Rotational speed (max.) : 1200 rpm
- Rotational speed with LNA (max.) : 1050 rpm
- Rotational speed with ULNA (max.) : 900 rpm
- Acoustical noise (max.) : 19.2 dB(A)
- Acoustical noise with LNA (max.) : 16.4 dB(A)
- Acoustical noise with ULNA (max.) : 13.8 dB(A)
- Airflow (max.) : 115.5 m³/h (67.98 CFM)
- Airflow with LNA (max.) : 101.9 m³/h (59.98 CFM)
- Airflow with ULNA (max.) : 88.7 m³/h (52.21 CFM)
- Static pressure (max.) : 1.51 mm H₂O
- Static pressure with LNA (max.) : 1.18 mm H₂O
- Static pressure with ULNA (max.) : 0.89 mm H₂O
