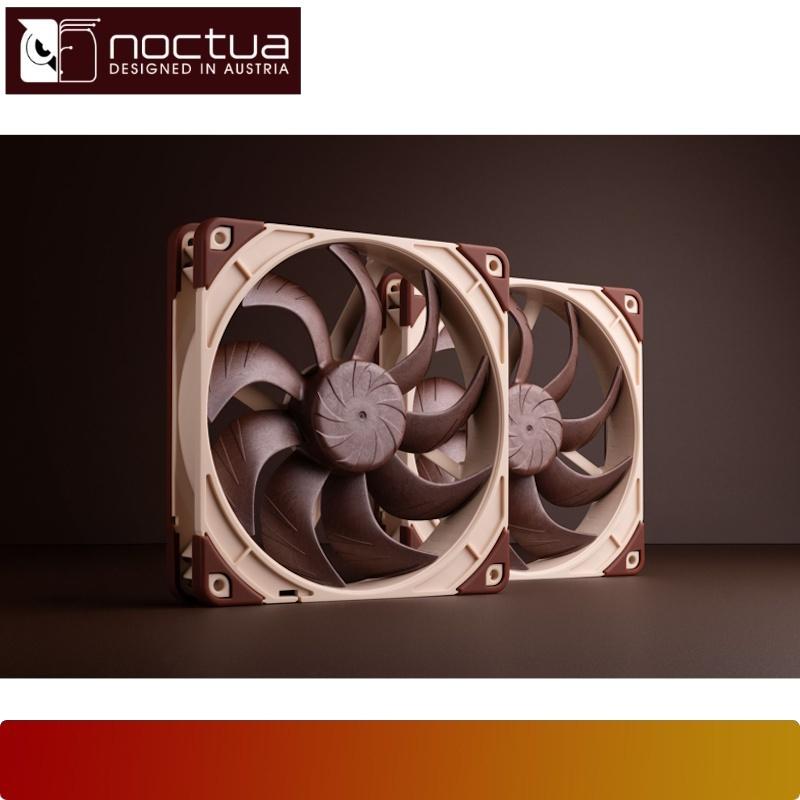

NOCTUA NF-A14x25 G2 PWM Sx2-PP

Key specifications
- Size (Form factor) : 140 x 140 x 25 mm (square)
- Speed range : 0 – 1500 rpm
- Airflow (max.) : 155.6 m³/h (91.58 CFM)
- Acoustical noise (max.) : 24.8 dB(A)
- Static pressure (max.) : 2.56 mm H₂O
- Rated voltage : 12 V
- Connector : 4-pin
- Colour : Brown
- Warranty : 6 years

Scope of delivery
- NF-A14x25 G2 PWM PPA
- NF-A14x25 G2 PWM PPB
- 2x NA-RC16 Low-Noise Adaptor (L.N.A.)
- NA-YC1 4-pin PWM splitter cable
- 2x NA-EC1 30cm extension cable
- 8x NA-AV2 anti-vibration mounts
- 2x NA-AVG2-LR anti-vibration gasket for water cooling radiators
- 8x NA-AVP1-LR load-relief anti-vibration pads
- Fan screws

Mechanical specifications
- Dimensions without anti-vibration pads : 140 x 140 x 25 mm
- Dimensions with anti-vibration pads : 140 x 140 x 27 mm
- Frame shape : Square
- Mounting hole spacing(s) : 124.5 x 124.5 mm
- Bearing : SSO2
- Connector type : A2543-4PIN (or equal)
- Cable length : 200 mm
- Cable length with extension cable (included) : 500 mm
- Wire : 26 AWG
- Sleeving : Fibreglass silicone mesh

Performance specifications
- Rotational speed (max.) : 1500 rpm
- Rotational speed with LNA (max.) : 1250 rpm
- Rotational speed @ 20% PWM : 300 rpm
- Rotational speed @ 0% PWM : 0 rpm
- Acoustical noise (max.) : 24.8 dB(A)
- Acoustical noise with LNA (max.) : 19.7 dB(A)
- Airflow (max.) : 155.6 m³/h (91.58 CFM)
- Airflow with LNA (max.) : 127.1 m³/h (74.81 CFM)
- Static pressure (max.) : 2.56 mm H₂O
- Static pressure with LNA (max.) :1.3 mm H₂O
