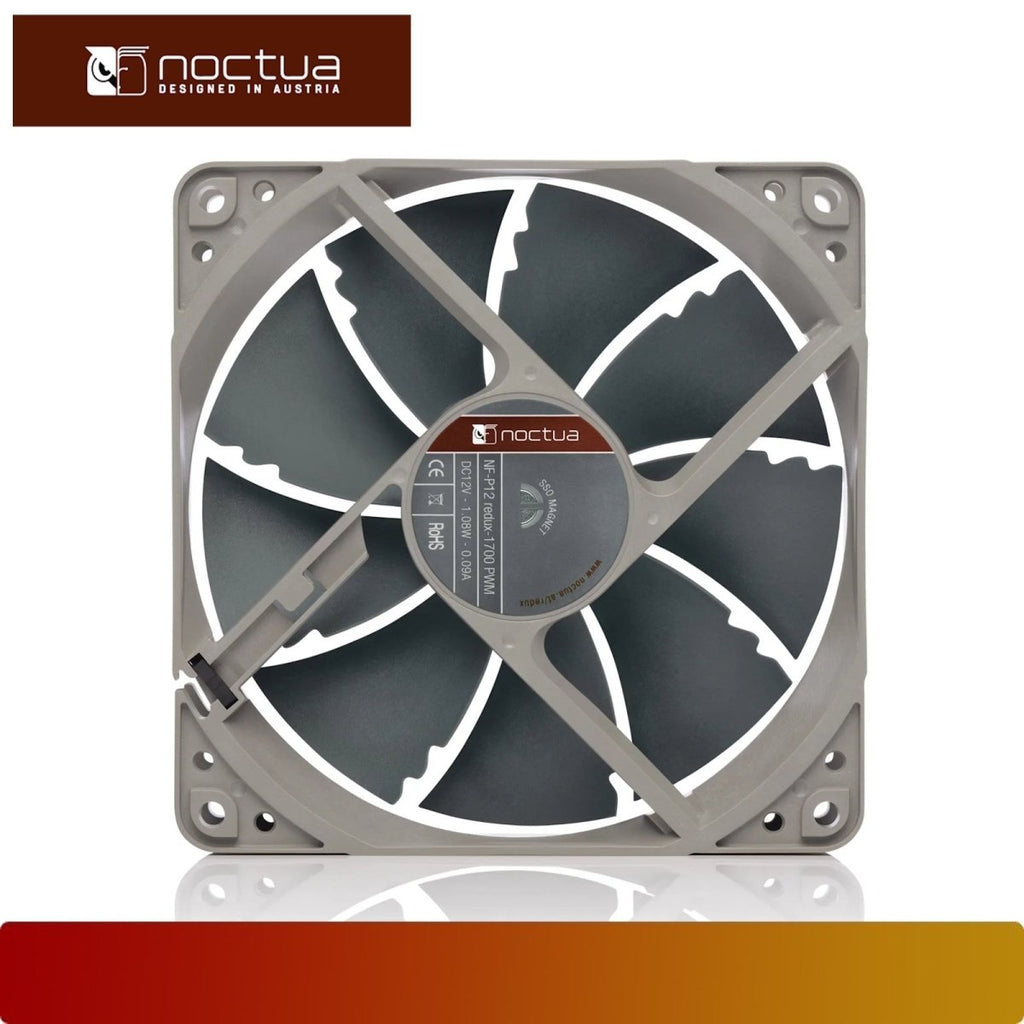

NOCTUA NF-P12 redux-1700 PWM

Key specifications
- Size (Form factor) : 120 x 120 x 25 mm (square)
- Speed range : 0 – 1700 rpm
- Airflow (max.) : 120.2 m³/h (70.75 CFM)
- Acoustical noise (max.) : 25.1 dB(A)
- Static pressure (max.) : 2.83 mm H₂O
- Rated voltage : 12 V
- Input power (typical) : 0.95 W
- Connector : 4-pin
- Colour : Grey
- Warranty : 6 years

Scope of delivery
- NF-P12 redux-1700 PWM fan
- Fan screws

Mechanical specifications
- Dimensions without anti-vibration pads : 120 x 120 x 25 mm
- Frame shape : Square
- Mounting hole spacing(s) : 105 x 105 mm
- Bearing : SSO
- Rotational direction : Counter-clockwise
- Frame colour : Light Grey
- Impeller colour : Dark Grey
- Connector type : 2510-4PIN (or equal)
- Cable length : 400 mm
- Wire : 26 AWG
- Sleeving : Fibreglass silicone mesh

Performance specifications
- Rotational speed (max.) : 1700 rpm
- Rotational speed @ 20% PWM : 550 rpm
- Rotational speed @ 0% PWM : 0 rpm
- Acoustical noise (max.) : 25.1 dB(A)
- Airflow (max.) : 120.2 m³/h (70.75 CFM)
- Static pressure (max.) : 2.83 mm H₂O
