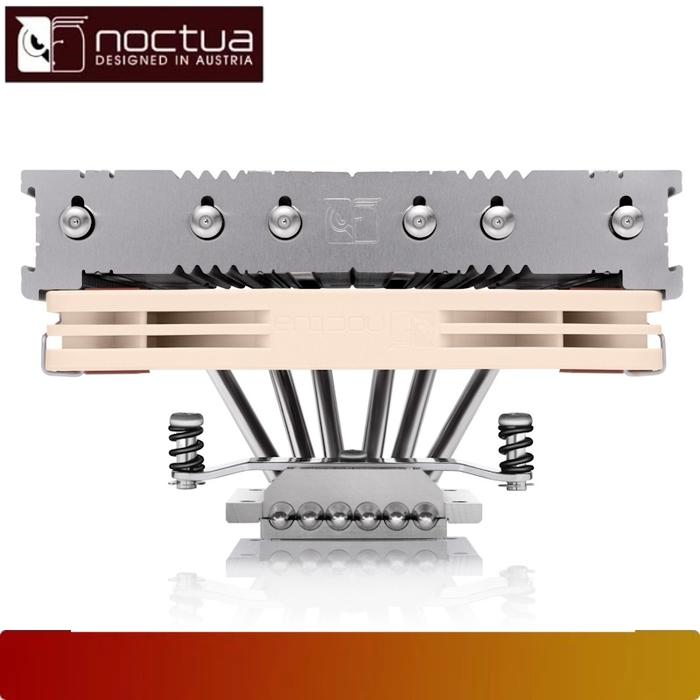

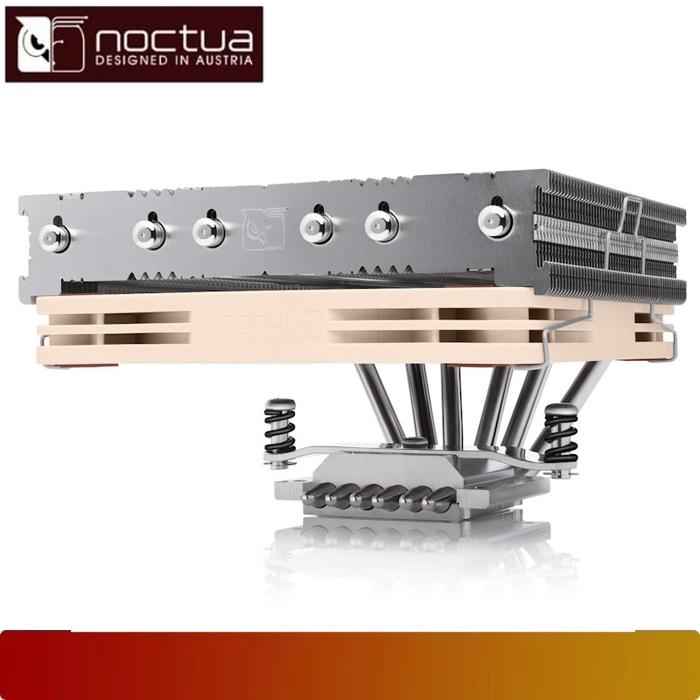

NOCTUA NH-L12Sx77

- Socket compatibility : Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
- Height (without fan) : 77 mm
- Width (without fan) : 128 mm
- Depth (without fan) : 131 mm
- Weight (without fan) : 410 g
- Height (with fan) : 77 mm
- Width (with fan) : 128 mm
- Depth (with fan) : 131 mm
- Weight (with fan) : 520 g
- Material : Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & - nickel plating
- NSPR : 100
- Max. TDP : see NSPR
- Fan compatibility : 120x120x15 & 120x120x25
- Scope of delivery
* NF-A12x15 PWM premium fan
* NA-RC7 Low-Noise Adaptor (L.N.A.)
* NT-H2 high-grade thermal compound
* SecuFirm2™ mounting kit
* Noctua metal case-badge
- Warranty : 6 Years

FAN Specification
- Model : 1x Noctua NF-A12x15 PWM
- Bearing : SSO2
- Max. rotational speed (+/- 10%) : 1850 RPM
- Max. rotational speed with L.N.A. (+/- 10%) : 1400 RPM
- Min. rotational speed @ 20% PWM (+/-20%) : 450 RPM
- Max. airflow : 94,2 m³/h
- Max. airflow with L.N.A. : 70,8 m³/h
- Max. acoustical noise : 23,9 dB(A)
- Max. acoustical noise with L.N.A. : 16,8 dB(A)
- Input power (max.) : 1,56 W
- Voltage range : 12 V
- MTTF : > 150.000 h
