NOCTUA NH-L9i

Cooler Specification
- Socket compatibility : Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, AMD AM4 with NM-AM4-L9aL9i
- Height (without fan) : 23 mm
- Width (without fan) : 95 mm
- Depth (without fan) : 95 mm
- Weight (without fan) : 320 g
- Height (with fan) : 37 mm
- Width (with fan) : 95 mm
- Depth (with fan) : 95 mm
- Weight (with fan) : 385 g
- Material : Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
- NSPR : 59
- Max. TDP : see NSPR
- Fan compatibility : 92x92x14mm, 92x92x25mm

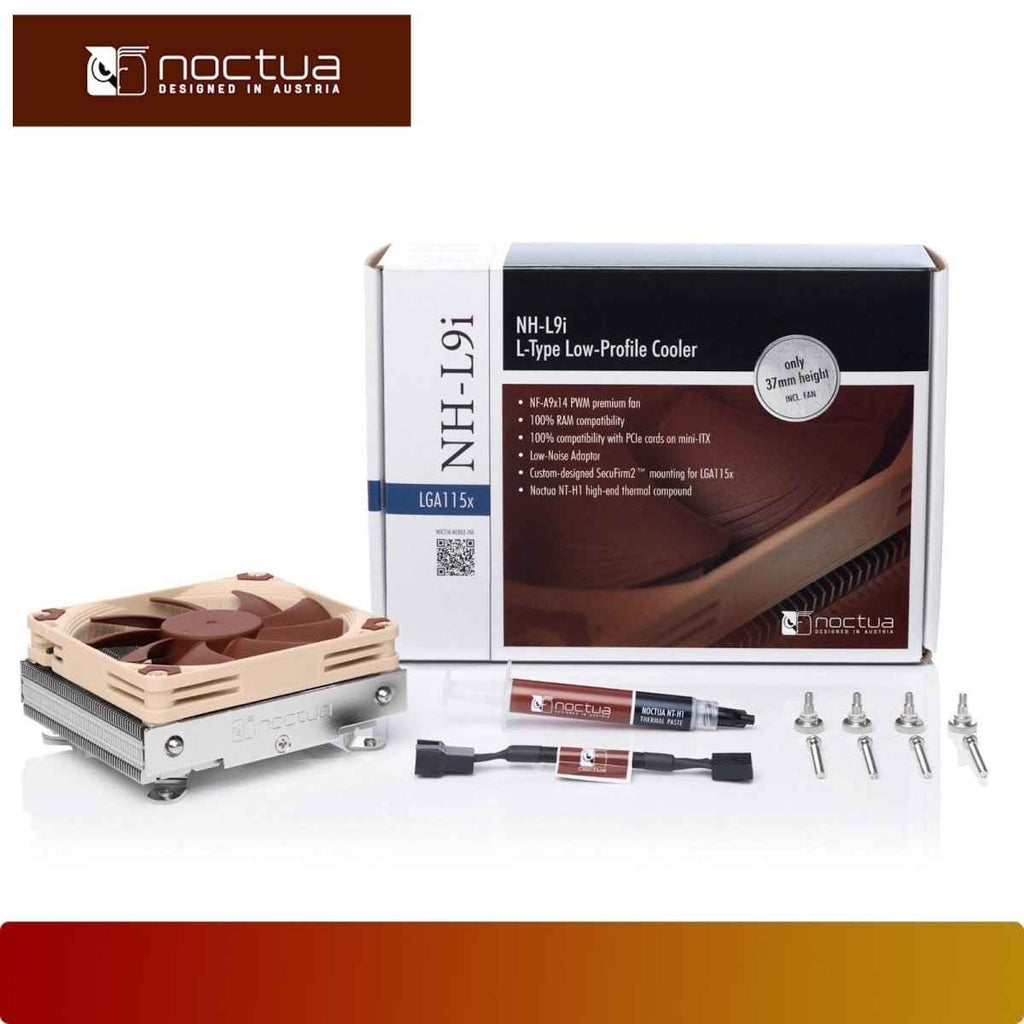

Scope of delivery
*NF-A9x14 PWM premium fan
*Low-Noise Adaptor (L.N.A.)
*NT-H1 high-grade thermal compound
*SecuFirm2 Mounting Kit
*Screws for 92x92x25mm fans
*Noctua Metal Case-Badge
- Warranty : 6 Years

FAN Specification
- Model : Noctua NF-A9x14 PWM
- Bearing : SSO2
- Max. rotational speed (+/- 10%) : 2500 RPM
- Max. rotational speed with L.N.A. (+/- 10%) : 1800 RPM
- Min. rotational speed @ 20% PWM (+/-20%) : 600 RPM
- Max. airflow : 57,5 m³/h
- Max. airflow with L.N.A. : 40,8 m³/h
- Max. acoustical noise : 23,6 dB(A)
- Max. acoustical noise with L.N.A. : 14,8 dB(A)
- Input power (max.) : 2,52 W
- Voltage range : 12 V
- MTTF : > 150.000 h
