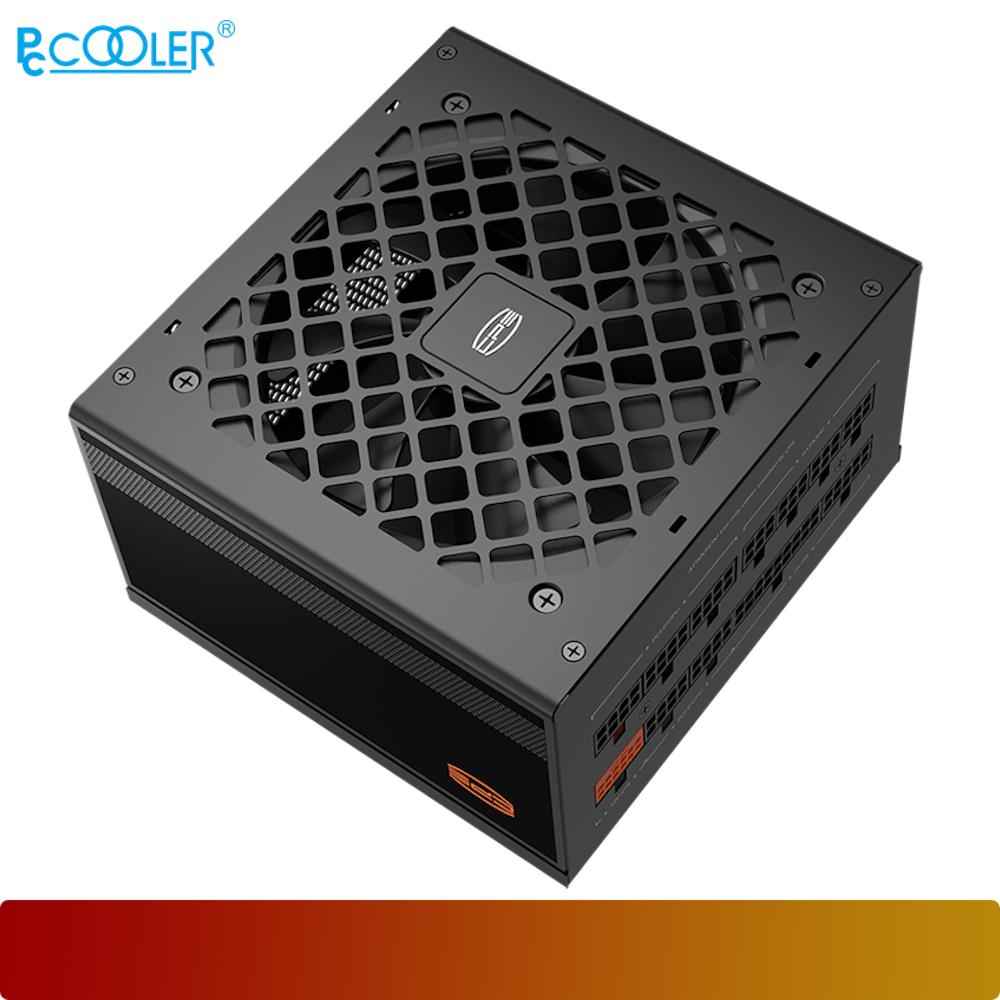

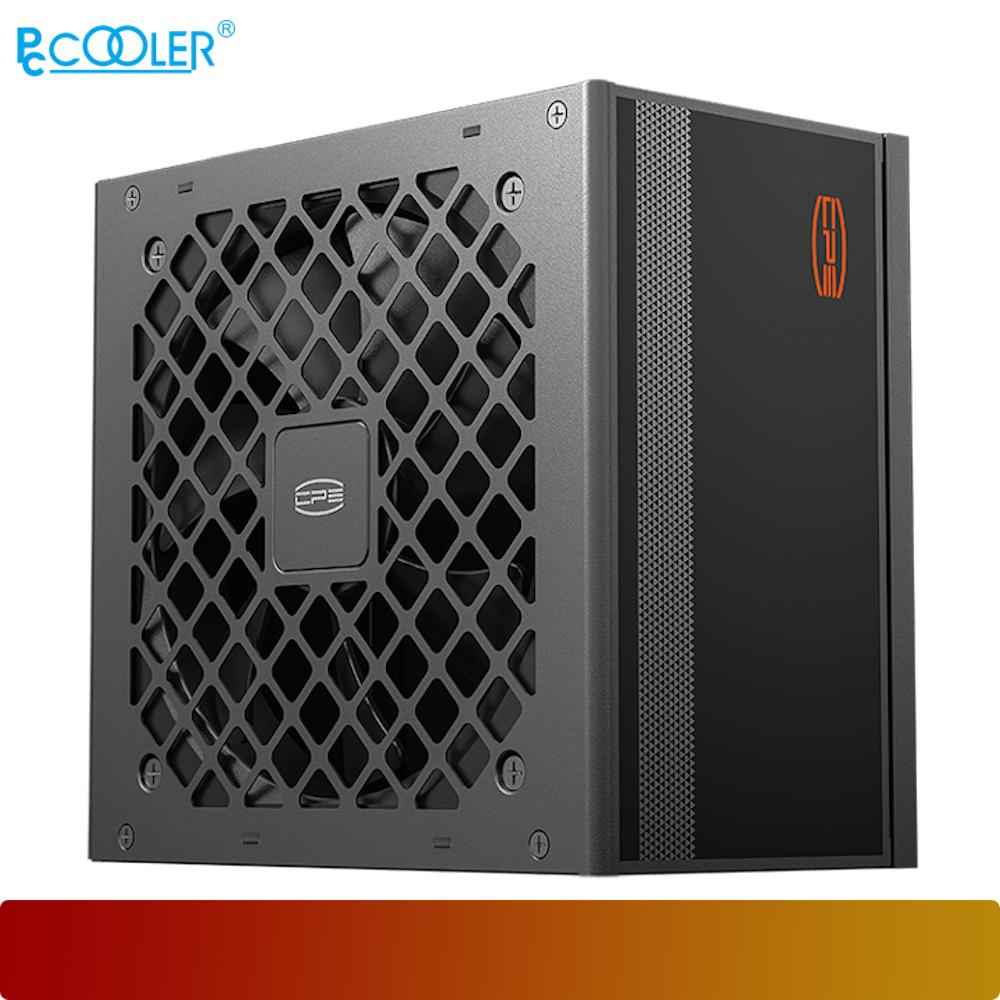

PCCOOLER KN650

Specifications :

Model No.
- KN650

Type
- ATX3.1

Output Power
- 650W

Certification
- 80PLUS GOLD

Eficiency
- ≥90% Under Typical Load(50% Loading)

Topology
- Active PFC + Half Bridge SRC LLC + DC to Dc

AC Input
- 100-240Vac Full Range

Protection
- OVP/UVP/SCP/OPP/OCP/OTP/SPD

Hold Up Time
- ≥16mS(80% Load)

Safety
- CB/CE/CCC/EAC/UKCA/FCC/ CAN ICES (B)/ NMB(B)

Environmental Compliance
- Rohs/ERP2014

Fan Dimension
- 120 x 120 x 25mm

Fan Bearing Type
- Hydraulic Bearing

Fan Operating Mode
- Thermal Control

Capacitors
- Japanese Bulk Capacitor

Operating Temperature
- 0~40℃

MTBF
- 100,000 Hours(Fan excepted)

Modularity
- Full-modular

PCI-E 5.1 Output Power
- 300W

Cable Type
- Flat Embossed Cable

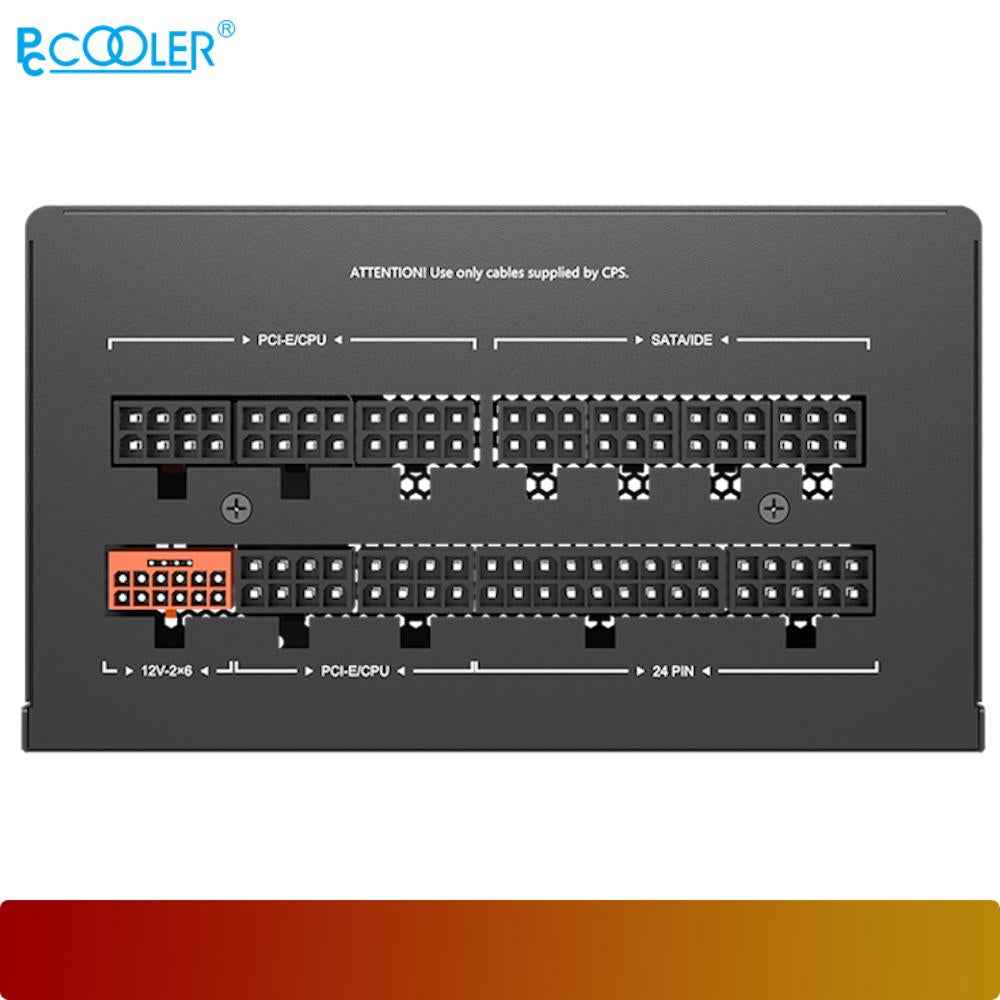

Output Wire
- Motherboard (20+4 Pin) x 1: 1 x 600mm
- CPU (4+4 Pin)x1: 2 x 650mm
- PCI-E (6+2 Pin) x 1: 2 x 500mm
- SATA x 2+4 Pin Peripheral x1: 1 x450+150+150mm
- SATA x 3: 1 x 450+150+150mm

Warranty
- 5 Years
