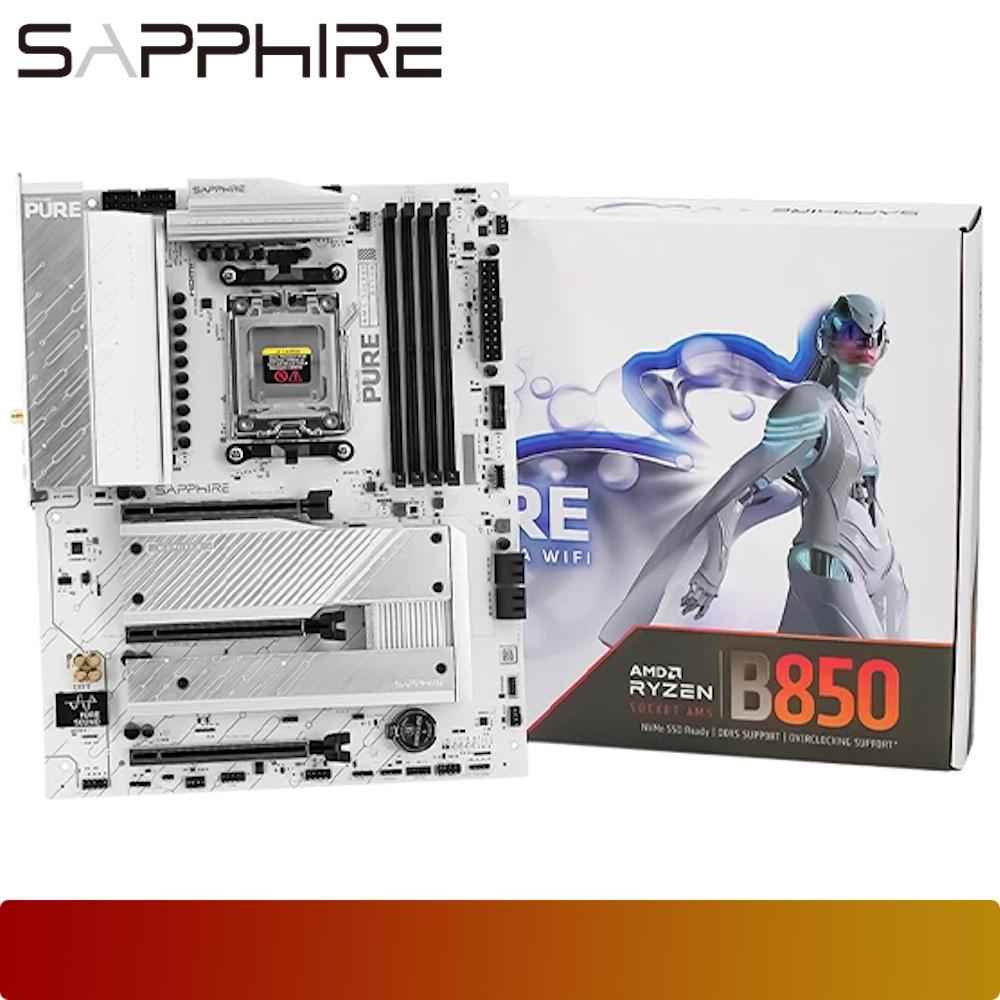

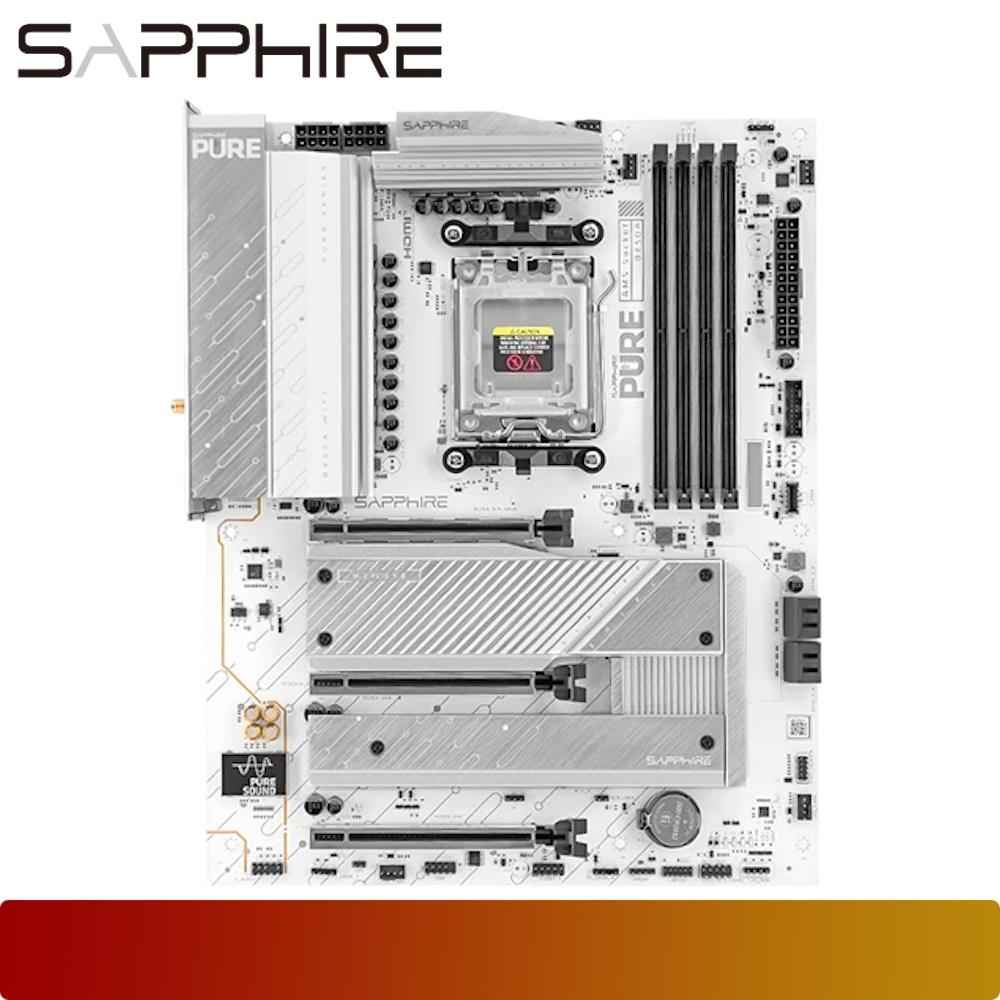

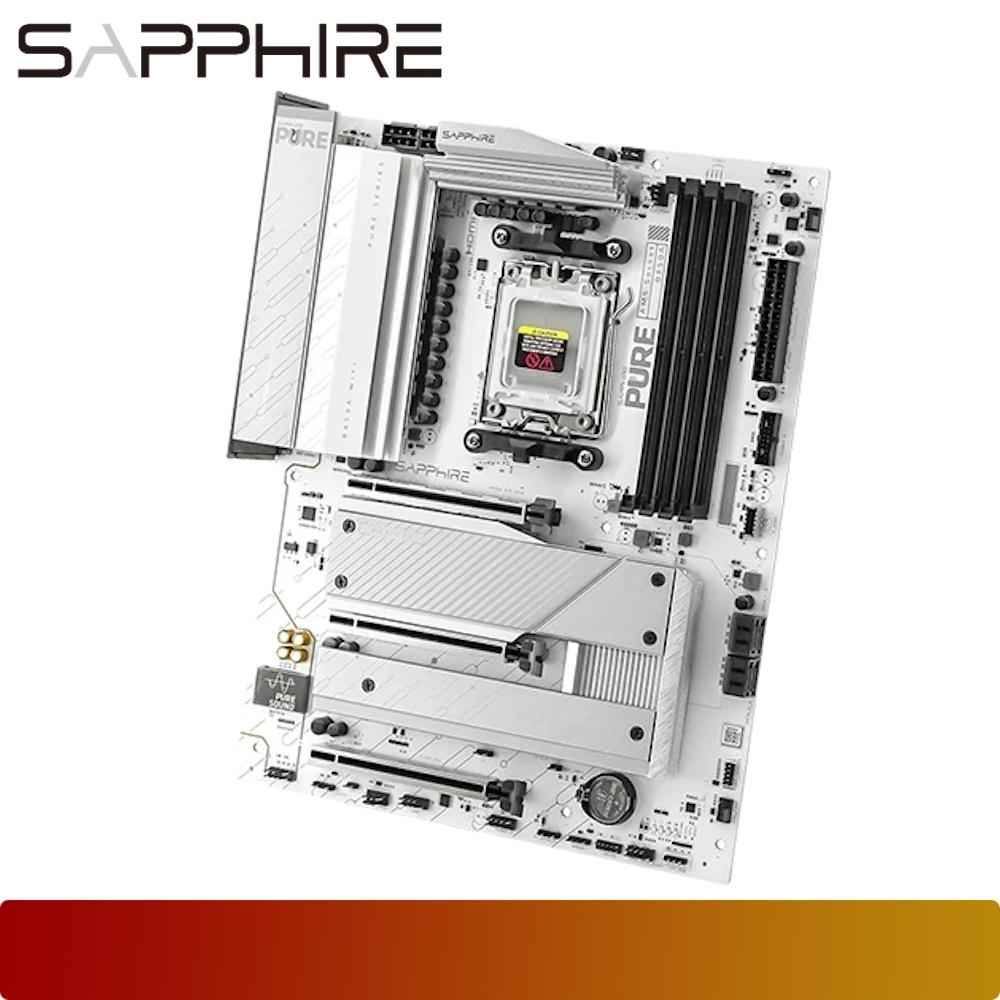

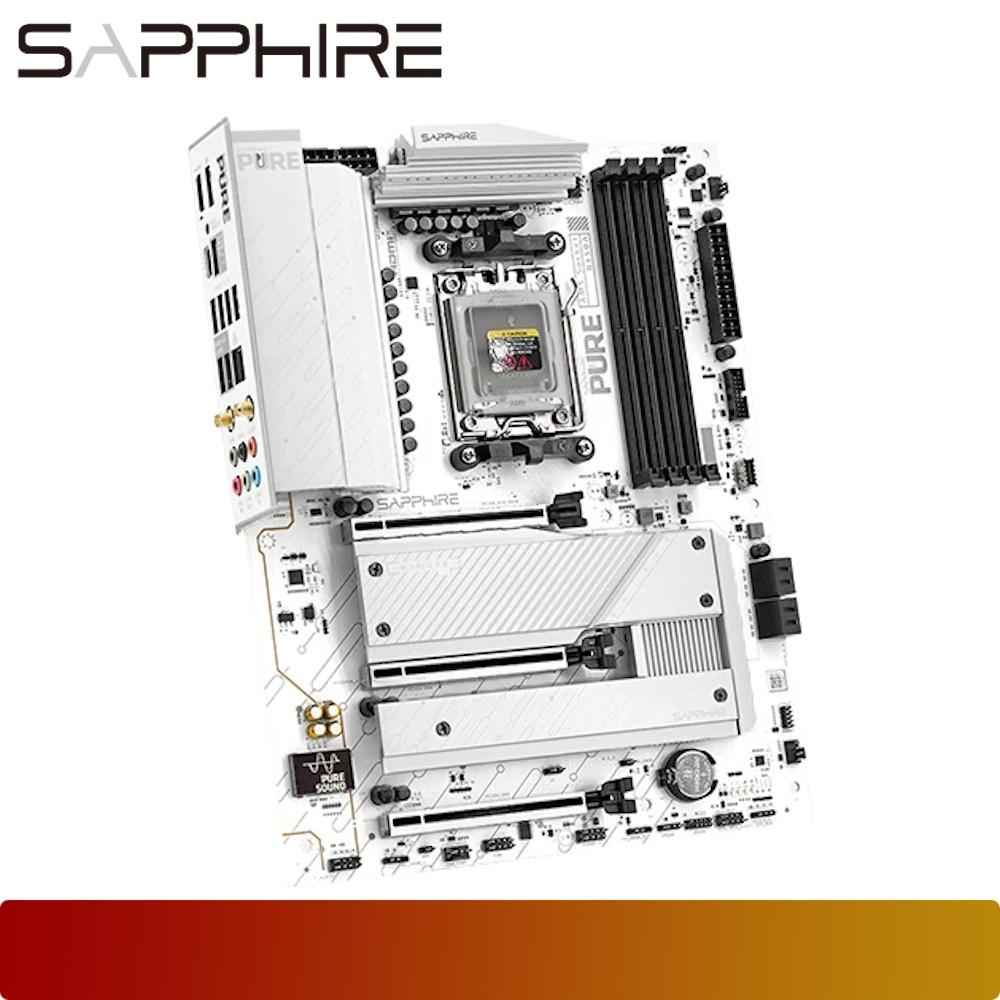

SAPPHIRE PURE B850A WIFI 7

Specifications :

Chipset
- AMD B850

CPU Support
- Supports AMD Socket AM5 Processors including Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Memory Support
- 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC)

PCI-E Expansion Slots
- 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 slot, 1x PCIe 4.0 x2 slot

Display Connector
- DisplayPort x1, HDMI x1

Audio
- Realtek ALC897 high-fidelity decoding chip (supports up to 5.1 channels)

Network
- Realtek RTL8125BG 2.5 Gigabit Ethernet
- M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.3 Support

Front USB Headers
- 1x USB 3.2 Gen1 (1 x Type C), 1x USB 3.2 Gen1 (2 x Type A), 1x USB 2.0 (2 x Type A)

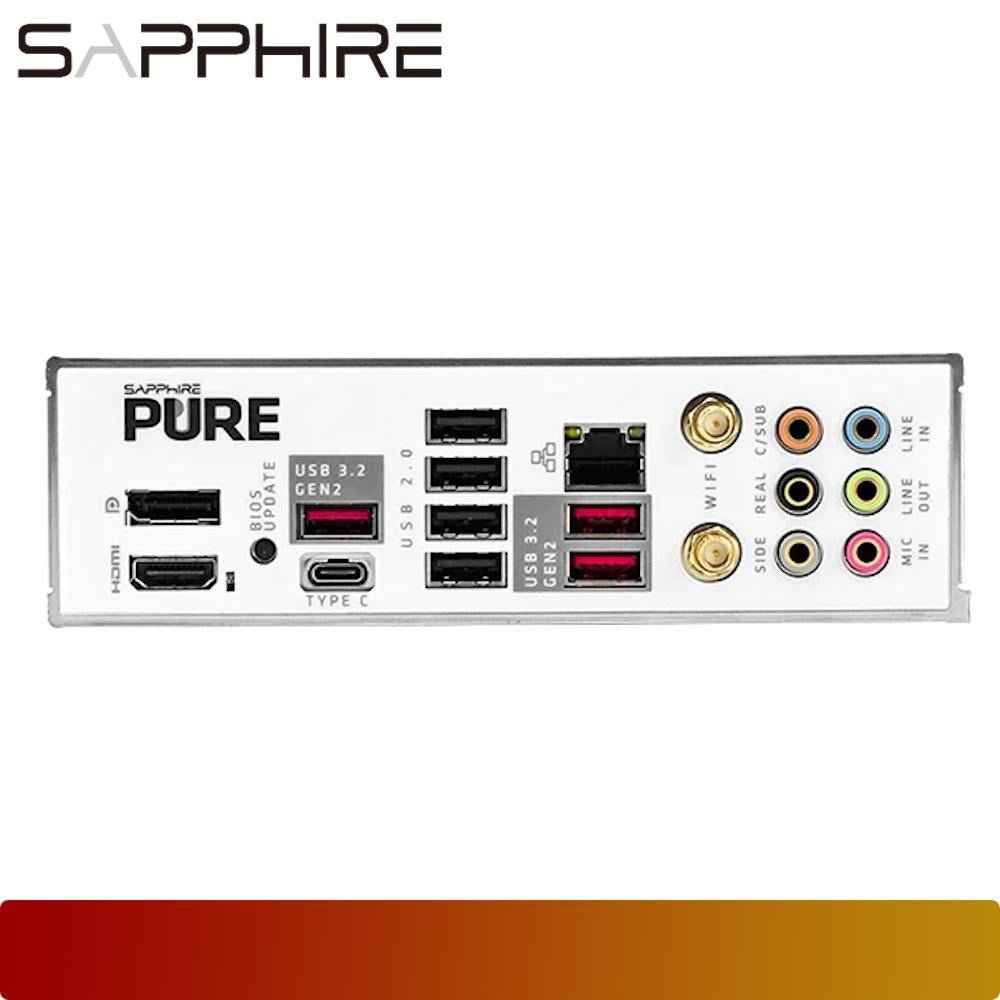

Rear Ports
- 1 × DisplayPort, 1 × HDMI , 1 × RJ45 LAN, 2 × Wi Fi Antenna
One-click Flash BIOS Button, 4 × USB 2.0, 3 × USB 3.2 Gen2 Type A
- 1 × USB 3.2 Gen2 Type C, 6 × Audio Jacks

Storage
- 1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA

Dimensions
- ATX, 305x244mm
