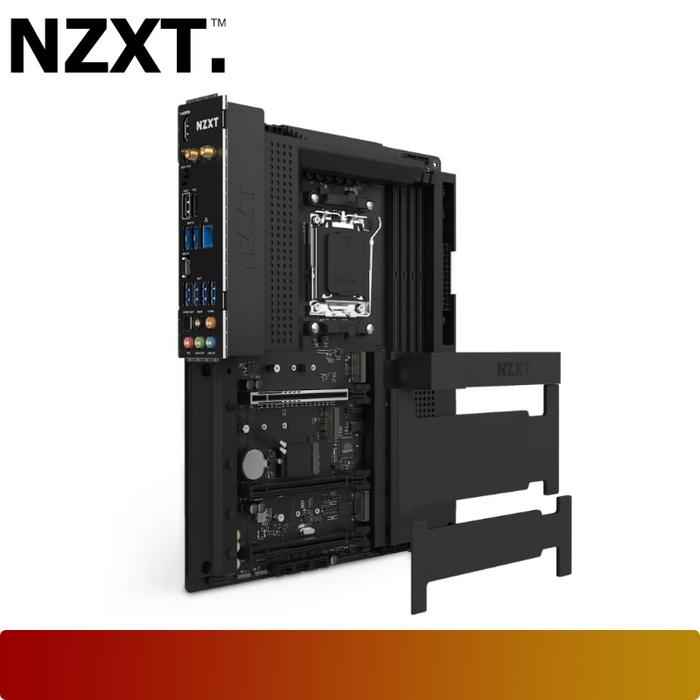

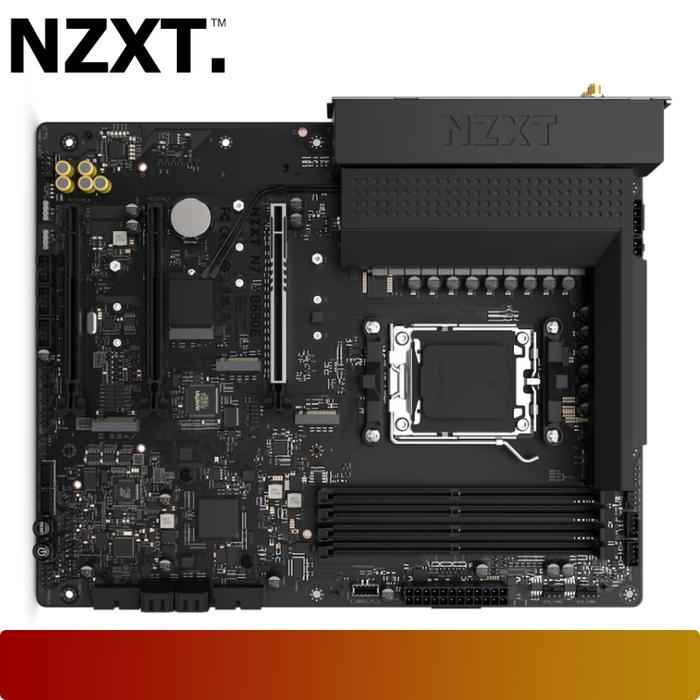

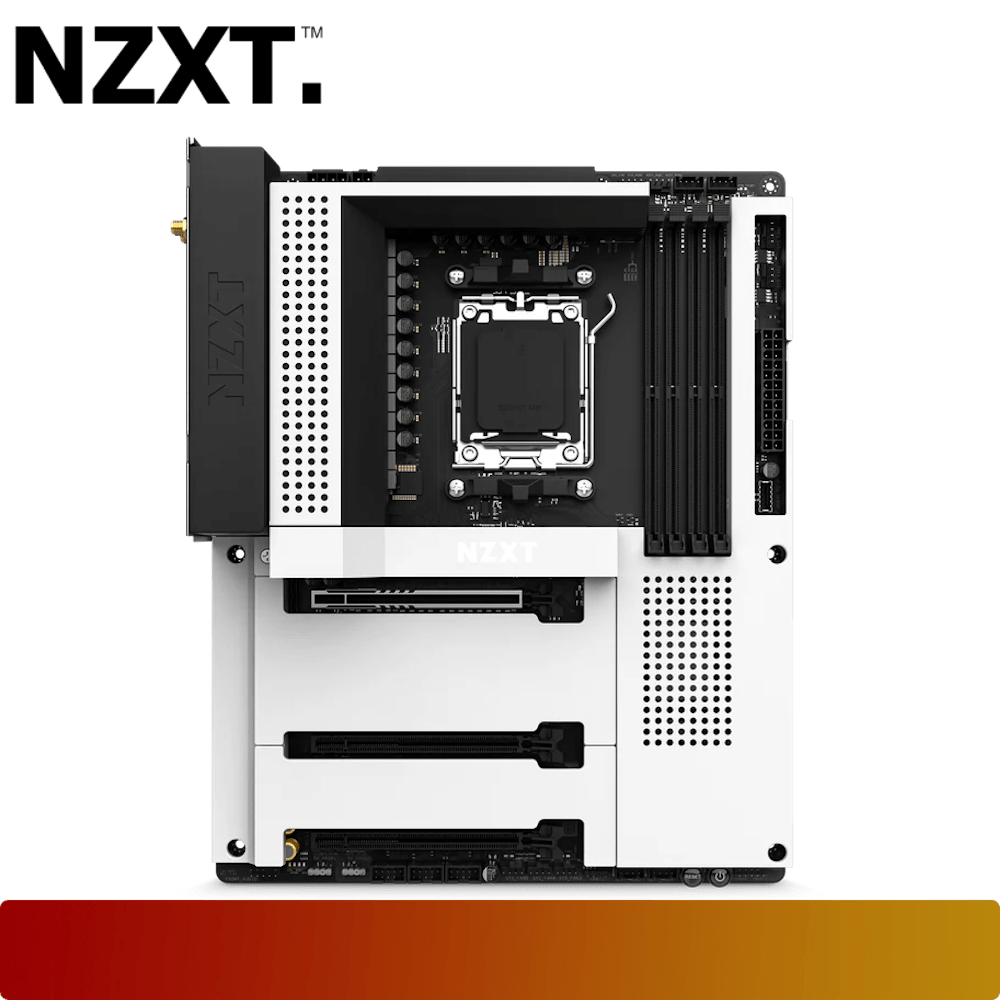

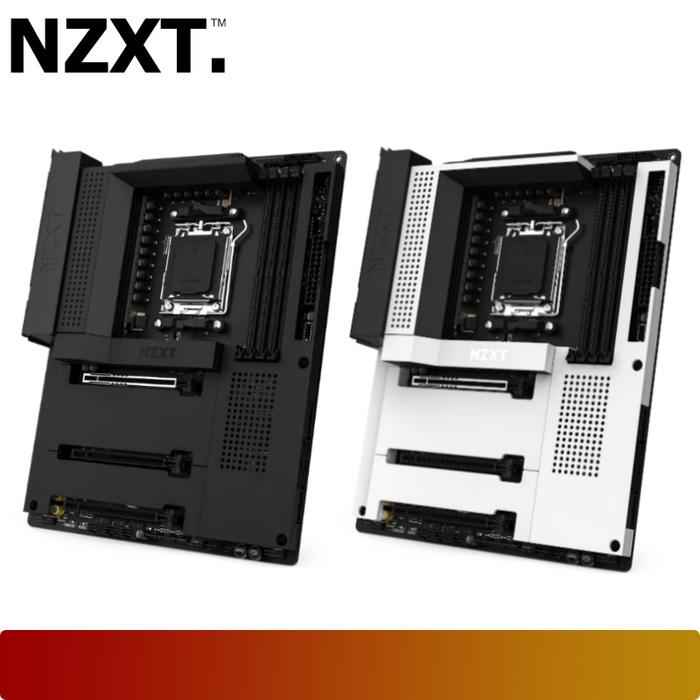

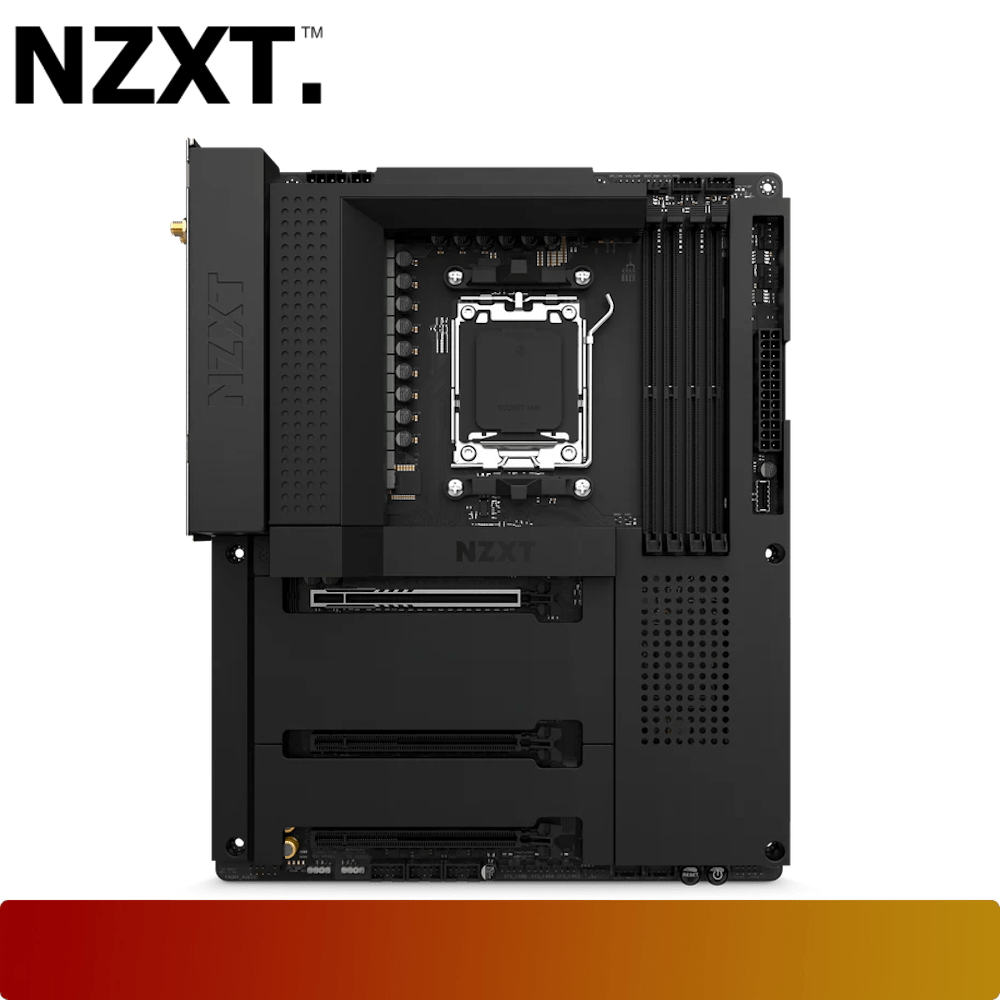

NZXT N7 B650E
Rp 5.209.000
Also available at:
Product description
| CPU | - Supports AMD Socket AM5 for AMD Ryzen 9000, 8000, and 7000 Series Processors : Supported |
| Chipset | - AMD : B650E |
| Memory |
- DIMM Slots : 4, DDR5 only - Max Memory Support : 128GB - Memory Architecture : Dual-Channel - OC Frequency : DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC) - Extreme Memory Profile (XMP) : Supported - EXTended Profiles for Overclocking (EXPO) : Supported |
| Expansion Slots |
- PCIe 5.0 ×16 slot (PCIEX16_1) : 1 (Supports NVMe SSD as boot disks) - PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3) : 2 (Supports NVMe SSD as boot disks) - M.2 Socket (Key E) : 1 (supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module) |
| Integrated Graphics |
- Integrated AMD RDNA 2 graphics : Supported - HDMI 2.1 TMD Compatible : 1 - HDR : Supported - HDCP 2.3 : max. resolution up to 4K 60Hz |
| Storage |
- M.2_1 : Type 2242/2260/2280 (PCIe 5.0 ×4 mode) - M.2_2 : Type 2242/2260/2280 (PCIe 4.0 ×4 mode) - M.2_3 : Type 2242/2260/2280 (PCIe 4.0 ×2 mode) - SATA 6Gb/s ports : 4 - RAID for SATA : 0/1/10 - RAID for M.2 NVMe : 0/1/10 - NVMe SSD as boot disks : Supported |
| LAN | - Realtek : RTL8125BG 2.5G LAN |
| Wireless |
- 802.11ax Wi-Fi 6E Module : Supported - Bluetooth : V5.2 |
| Audio | - Realtek : ALC1220 Codec |

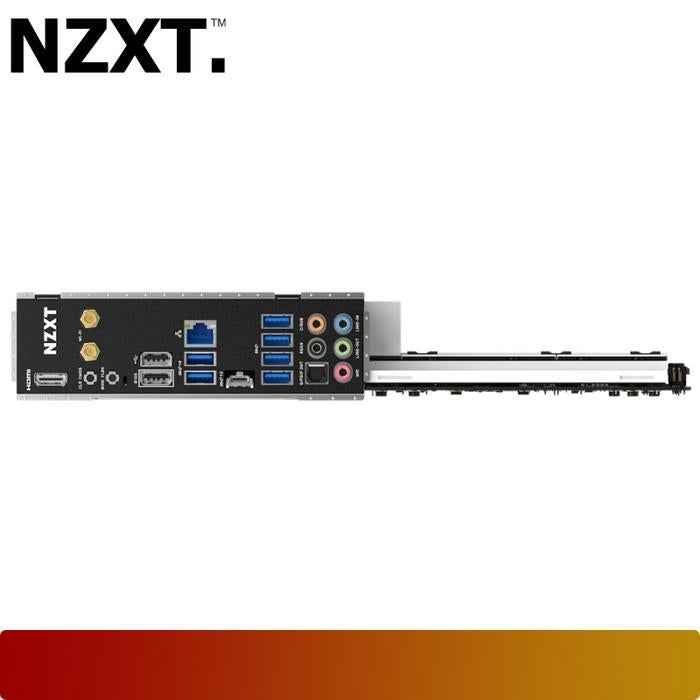

| Rear I/O |
- Wireless antenna SMA connectors : 2 - HDMI port : 1 - USB 2.0 : 2 - USB 3.2 Gen 2 Type-C port : 1 - USB 3.2 Gen 2 ports : 2 - USB 3.2 Gen 1 ports : 4 - Clear CMOS button : 1 - BIOS Flashback button : 1 - LAN (RJ45) port : 1 - Audio jacks : 5 - Optical S/PDIF Out port : 1 |
| Internal I/O |
- 24-pin ATX power connector : 1 - 8+4-pin ATX 12V power connector : 1 - 4-pin CPU_FAN connector : 1 - 4-pin AIO_PUMP connector : 1 - 4-pin SYS_FAN connectors : 5 - NZXT RGB LED connectors : 4 - 5V ARGB LED connector : 2 - USB 2.0 header : 3 (Up to 6 USB 2.0 ports) - USB 3.2 Gen1 header : 2 (Up to 4 USB 3.2 Gen 1 ports) - USB 3.2 Gen2x2 front panel header : 1 (For USB Type-C) - Front panel audio connector : 1 - Power button : 1 - Reset button : 1 - POST LEDs : 4 |
| General |
- System Requirements : NZXT CAM software requires Microsoft Windows 11/10 operating system. - Form Factor : ATX - Warranty : 3 years - Certifications : FCC, CE, WHQL, ErP/EuP Ready - Model Number (White) : N7-B65XT-W1 - Model Number (Black) : N7-B65XT-B1 |
