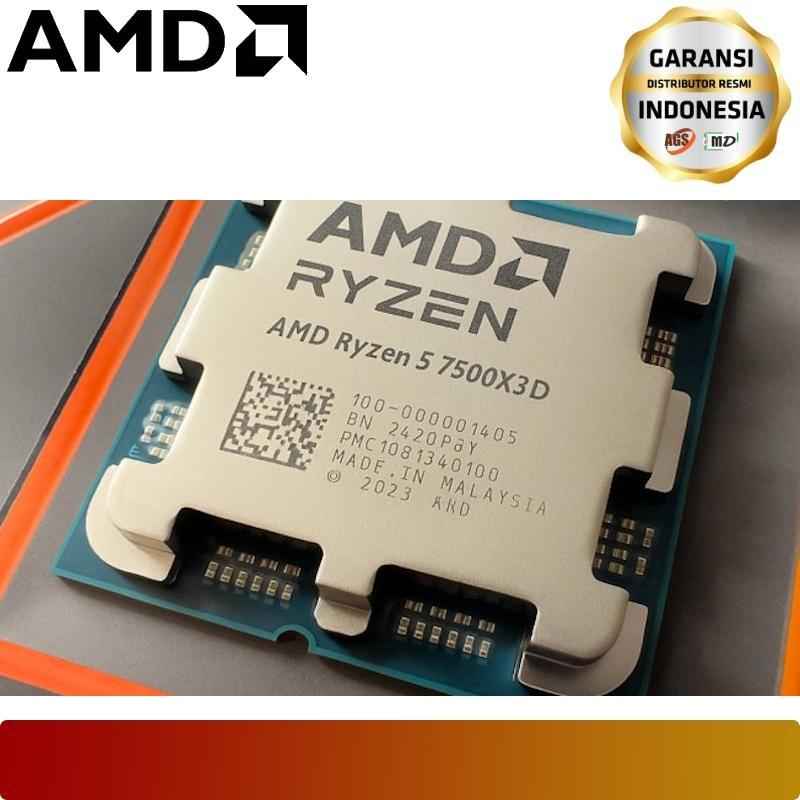

AMD Ryzen 5 7500X3D Desktop Processor | Ryzen 5 7000 Series AM5

Specification :

Name
- AMD Ryzen 5 7500X3D

Family
- Ryzen

Series
- Ryzen 7000 Series

Form Factor
- Desktops, Boxed Processor

Market Segment
- Enthusiast Desktop

AMD PRO Technologies
- No

Regional Availability
- NA , EMEA

Former Codename
- Raphael AM5

Processor Architecture
- Zen 4

# of CPU Cores
- 6

Multithreading (SMT)
- Yes

# of Threads
- 12

Max. Boost Clock
- Up to 4.5 GHz

Base Clock
- 4 GHz

L1 Cache
- 384 KB

L2 Cache
- 6 MB

L3 Cache
- 96 MB

Default TDP
- 65W

Processor Technology for CPU Cores
- TSMC 5nm FinFET

Processor Technology for I/O Die
- TSMC 6nm FinFET

CPU Compute Die (CCD) Size
- 71mm²

I/O Die (IOD) Size
- 122mm²

Package Die Count
- 2

AMD EXPO Memory Overclocking Technology
- Yes

Precision Boost Overdrive
- Yes

Curve Optimizer Voltage Offsets
- Yes

AMD Ryzen Master Support
- Yes

CPU Socket
- AM5

Supporting Chipsets
- A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology
- Precision Boost 2

Instruction Set
- x86-64

Supported Extensions
- AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 ,
x86-64

Thermal Solution (PIB)
- Not Included

Recommended Cooler
- Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)
- 89°C
