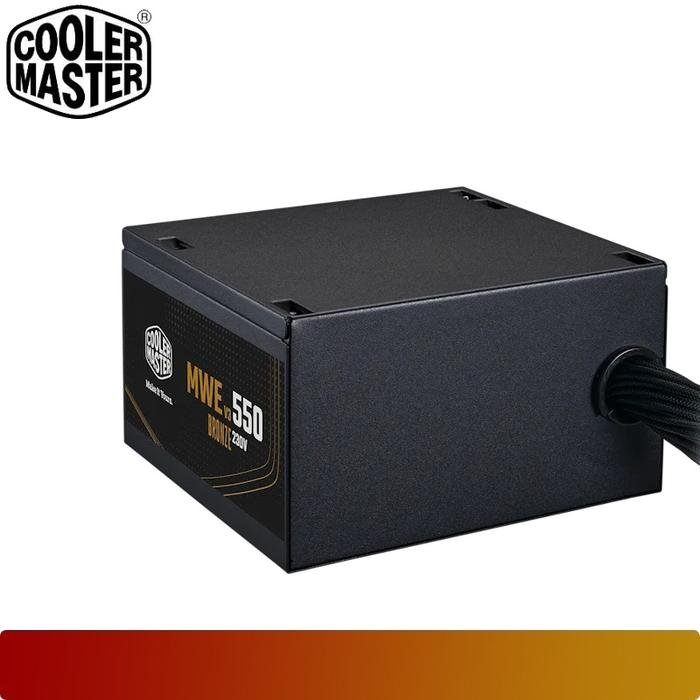

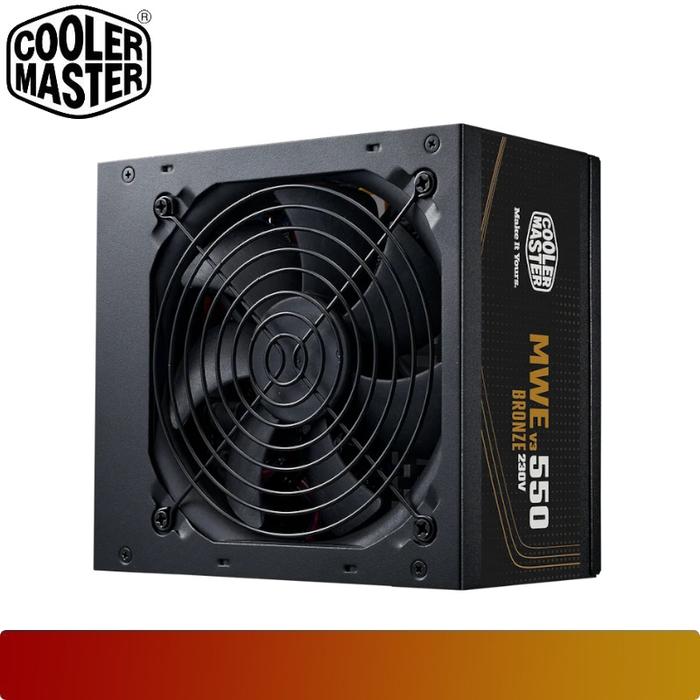

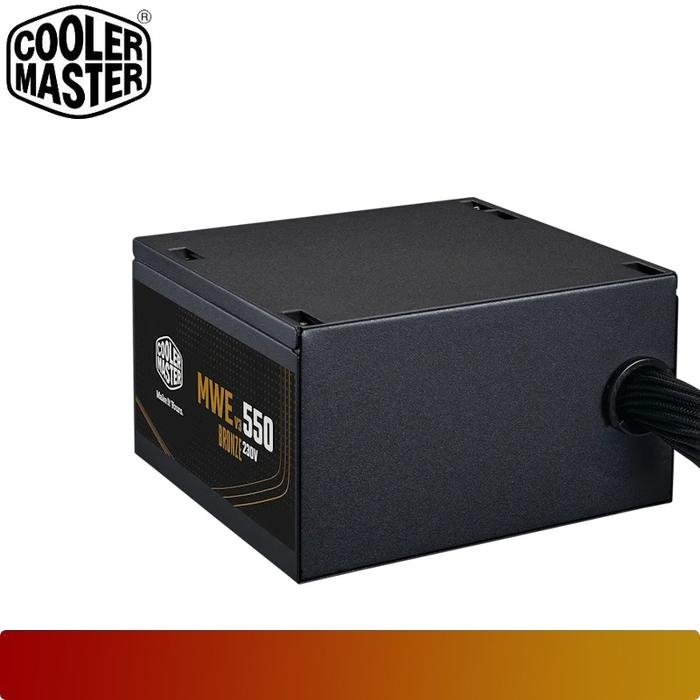

COOLER MASTER MWE Bronze 550 V3 | PSU 550W ATX 3.1 80+ Bronze Non Modular

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- MPE-5501-ACABW-3B

ATX Version
- ATX 12V Ver. 3.1

PFC
- Active PFC

Input Voltage
- 200-240V

Input Current
- 5A

Input Frequency
- 50-60Hz

Dimensions (L x W x H)
- 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch

Fan Size
- 120mm

Fan Bearing
- HDB

Efficiency
- >88% @ Typical Load

80 PLUS Rating
- 80 PLUS Bronze EU 230V

ErP 2014 Lot 3
- Yes

Operating Temperature
- 0-40°C

Power Good Signal
- 100 - 150 ms

Hold Up Time
- >16ms

MTBF
- >100,000 Hours

Protections
- UVP / OVP / OPP / OTP / SCP

Regulatory
- TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)

ATX 24 Pin Connectors
- 1

EPS 8 Pin / 4+4 Pin Connectors
- 2

SATA Connectors
- 6

Peripheral 4 Pin Connectors
- 3

PCI-e 6+2 Pin Connectors
- 2

Warranty
- 5 Years

Series
- MWE Bronze Series

Category
- 500 to 750W

Modular
- Non Modular

80 Plus Efficiency
- Bronze

Form Factor
- ATX

Watts
- 550W
