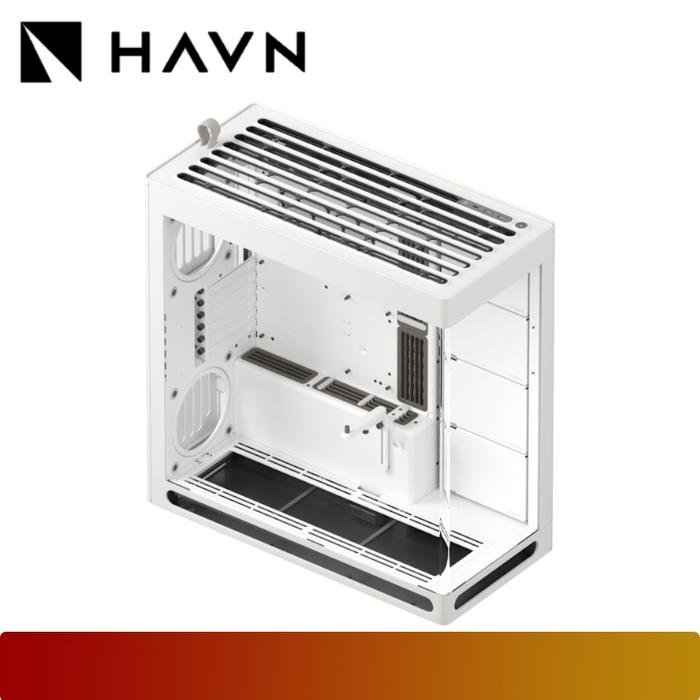

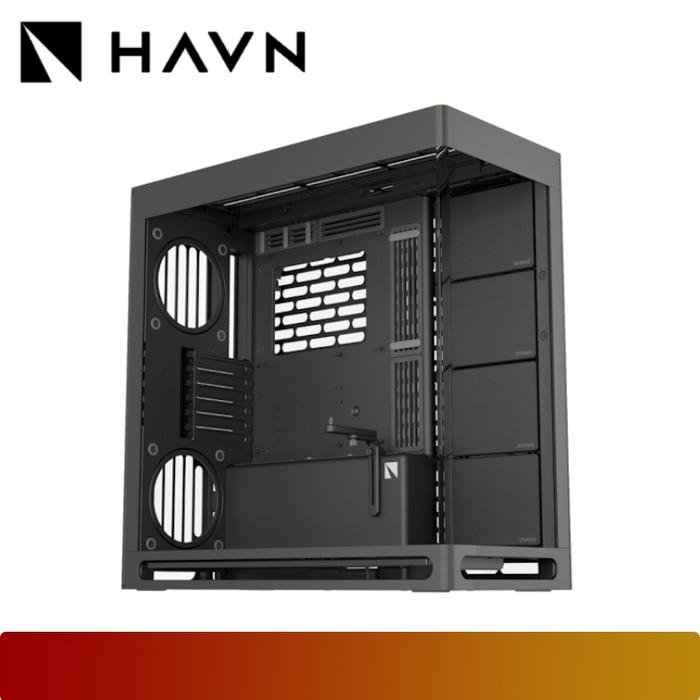

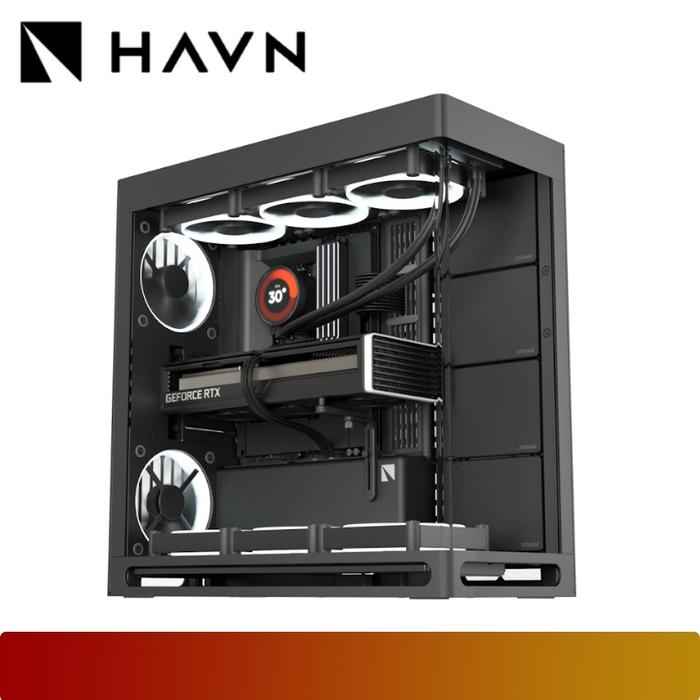

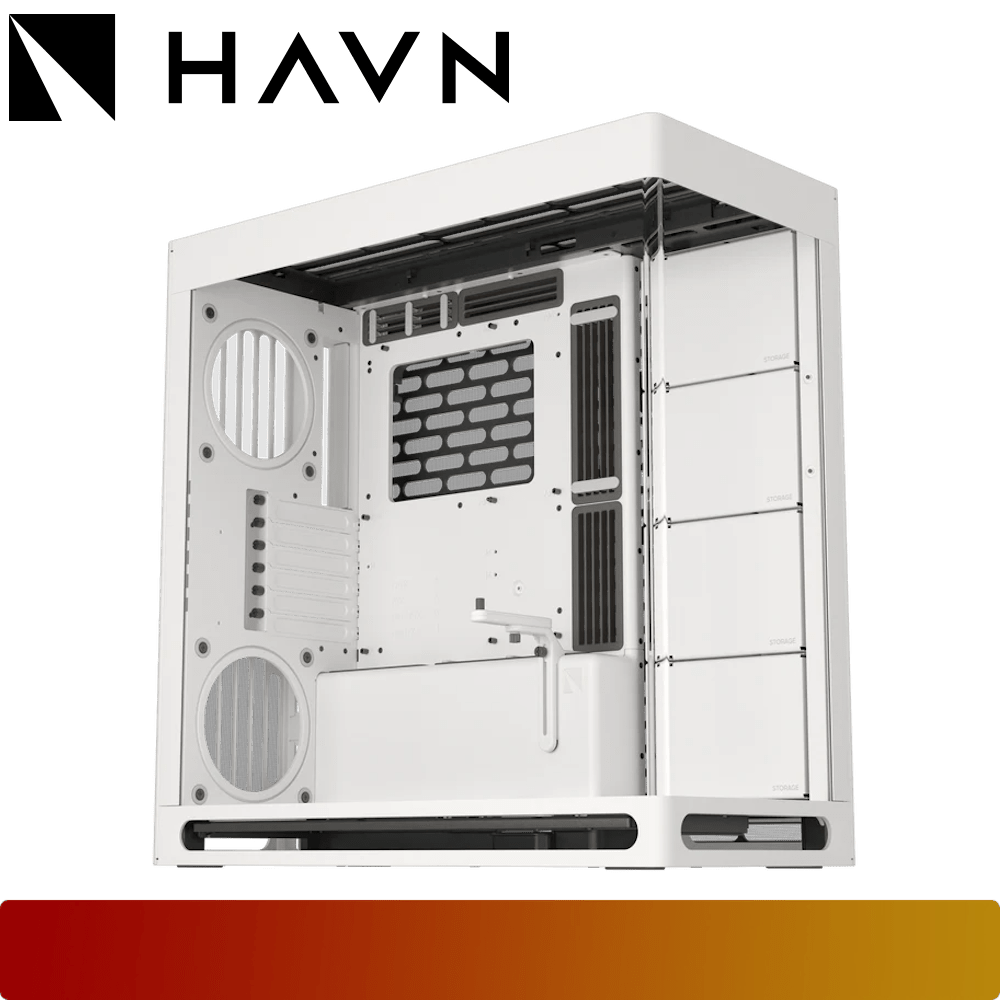

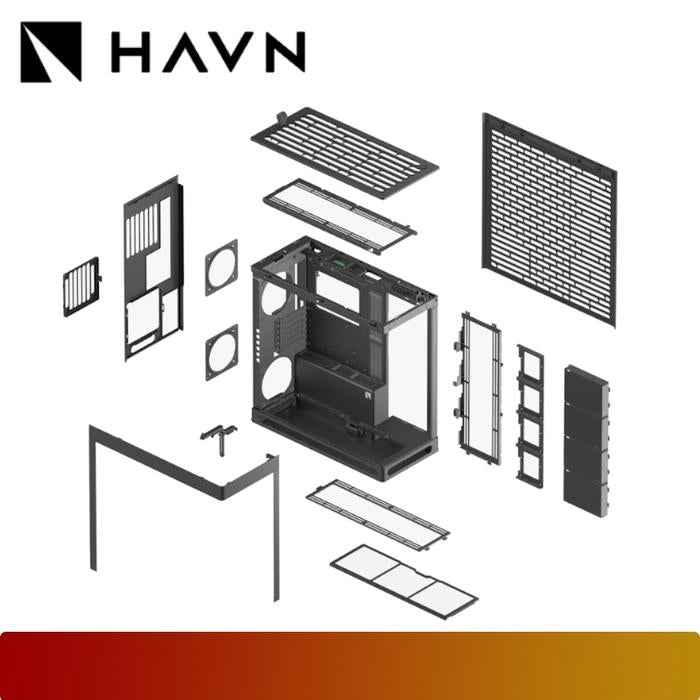

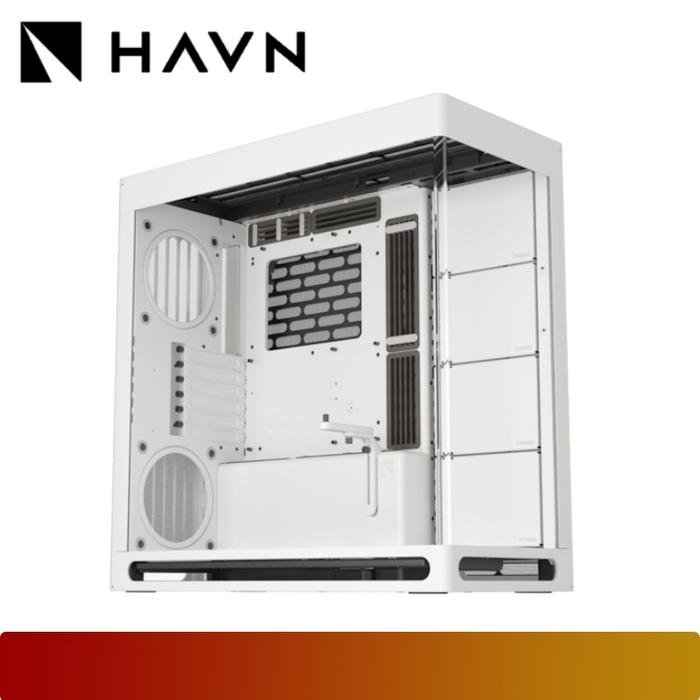

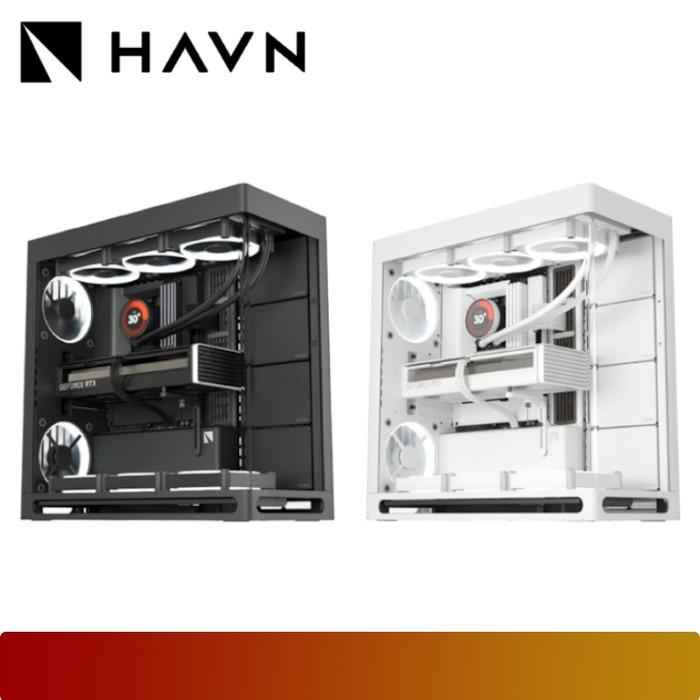

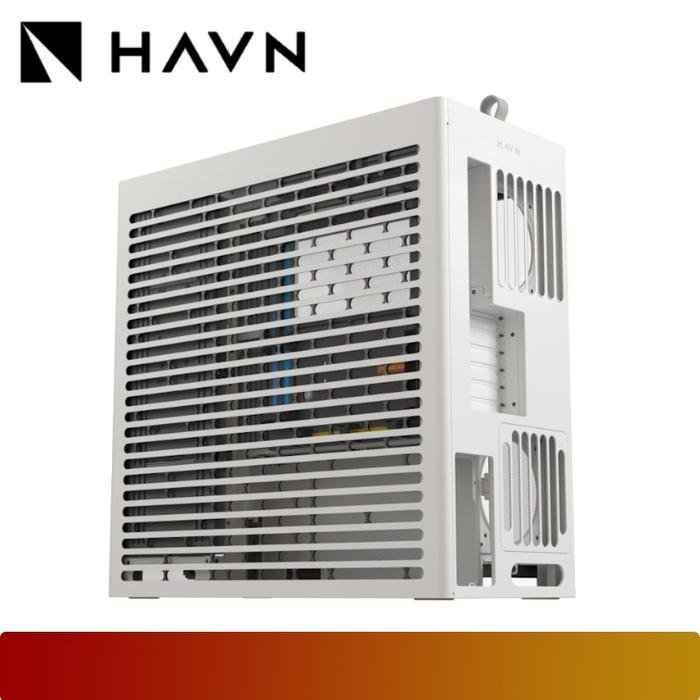

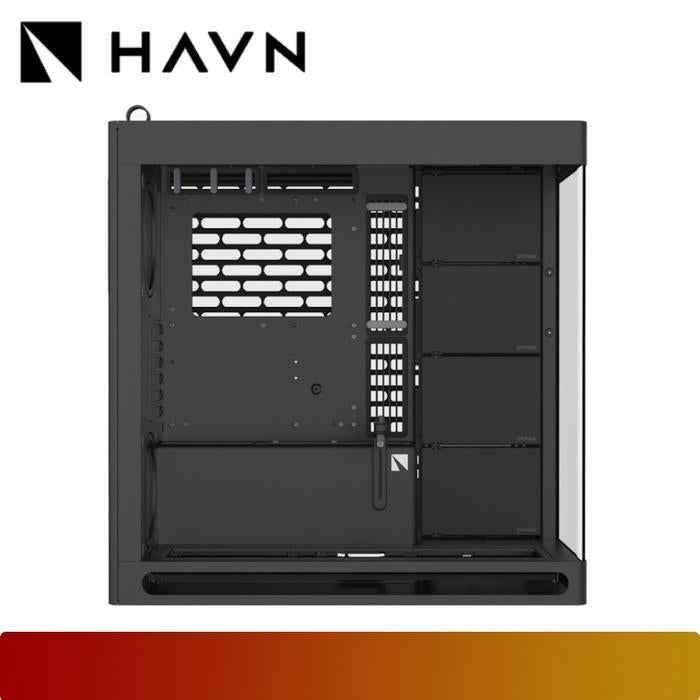

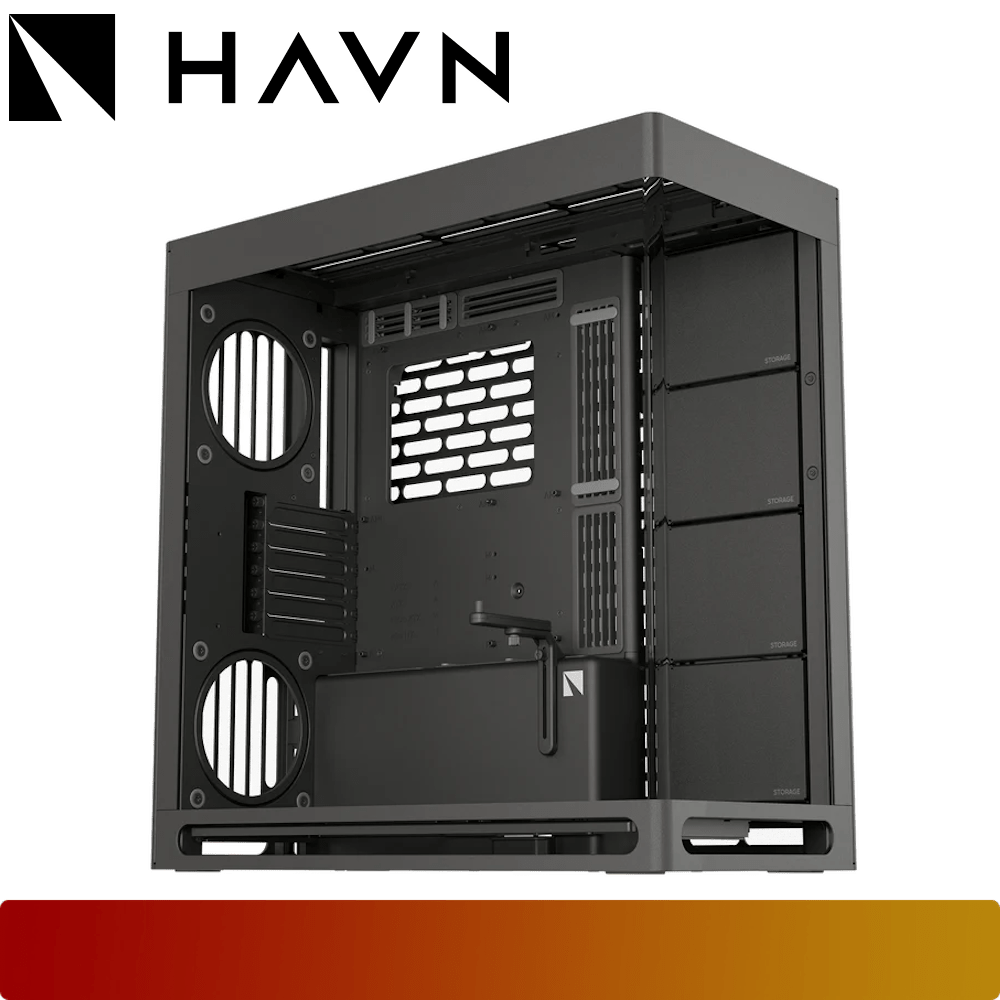

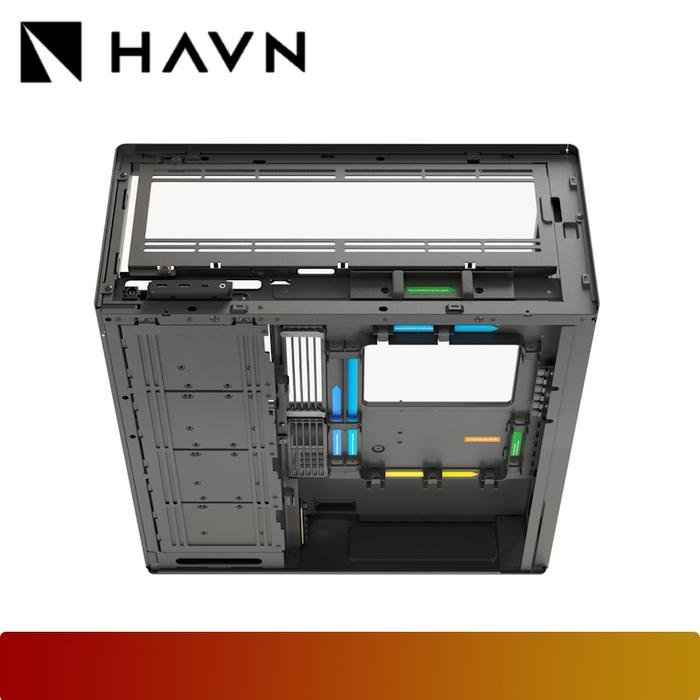

HAVN HS 420 Base Edition
Rp 2.599.000
Also available at:
Product description
| Form Factor | - Mid Tower |
| PC Case Dimensions (L x W x H) | - 541 x 259.5 x 547 mm |
| Warranty | - 1 year |
| Motherboard Support | - E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Fan Support |
- Maximum Amount: 11 - Top: 3 x 120 / 3 x 140 mm - Right: 3 x 120 / 3 x 140 mm - Bottom: 3 x 120 / 3 x 140 mm - Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm) |
| CPU Tower Cooler Clearance | - Height: Up to 185 mm. Liquid cooling recommended. |
| Graphics Card Clearance | - Length: Up to 480 mm ( Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended. ) |
| RAM Clearance | - If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm |
| Storage |
- Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5'' - Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' - Storage Bay Included: 4x |
| Dust Filter |
- Bottom: 1 (Removable) - Top: 1 (Built-in) - Right: 1 (Built-in) - Rear Bottom: 1 (Removable) |
| Material | - SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| Front I/O |
- USB 3.2 Gen 2 Type-C x1 - USB 3.2 Gen 1 Type-A x2 - Audio Jack x1 - Power & Reset Button x1 |
| Expansion Slots | - 6 |
| Fan PWM Repeater |
- Fan Ports: 2 x PWM repeaters, 12 ports total - Location: 1 x Cable Management Tray - 1 x PSU Shroud - Fan Connectors: 6 ports per repeater x 4-pin PWM (Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.) - Fan Rated Voltage: 12V - Fan Safety Current: Up to 2.6A across 6 ports - Power Connector: 1 x SATA Power - Power Safety Current: 1 x SATA connector power input, 12V 2.6A (max) |
| Liquid Cooling Support |
- Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM) - Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO) - Bottom: 280 / 360 / 420 mm (Thickness: 120 mm) - Width: Up to 145 mm |
| GPU Support | - 2 - 5 Slots |
| Power Supply Support |
- ATX - Length: Up to 220mm (Clearance - 290mm) |
| Internal Display Support |
- VESA Mounting: 75 x 75 mm / 100 x 100 mm - Display Size: 14 in. (Max) - Location: Front Right Pillar |
