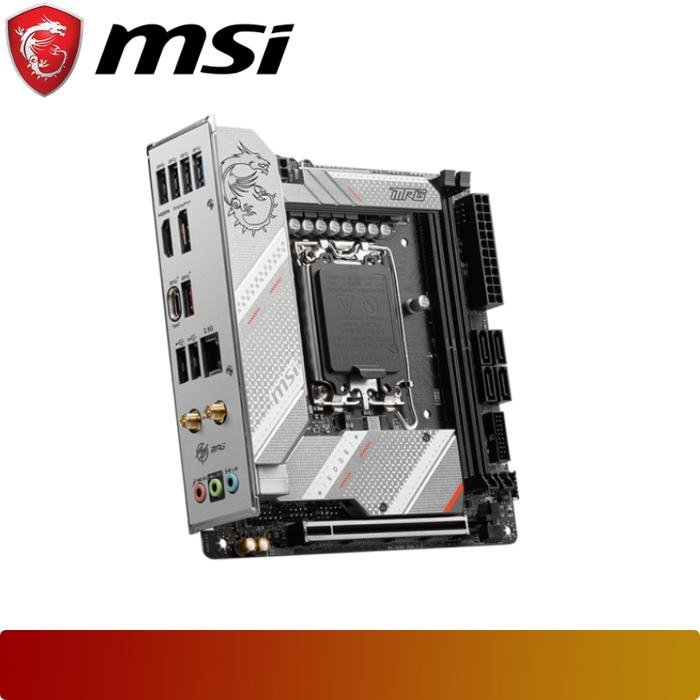

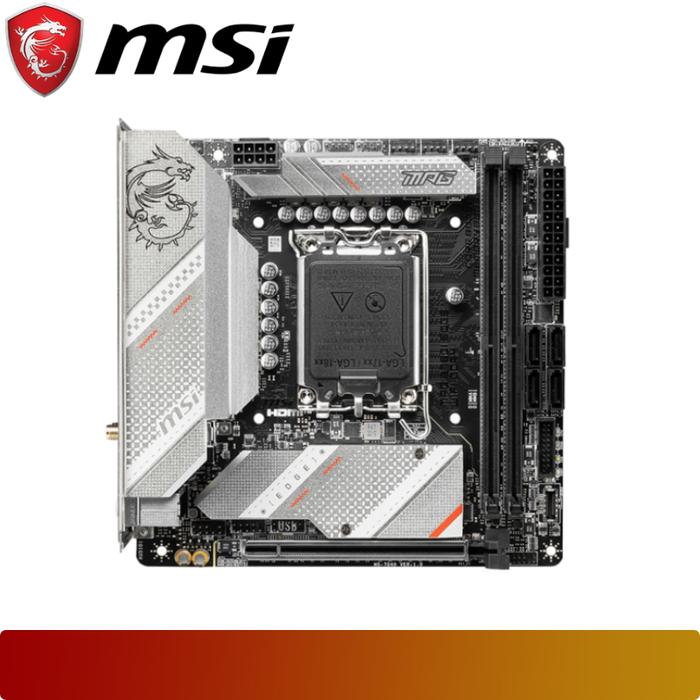

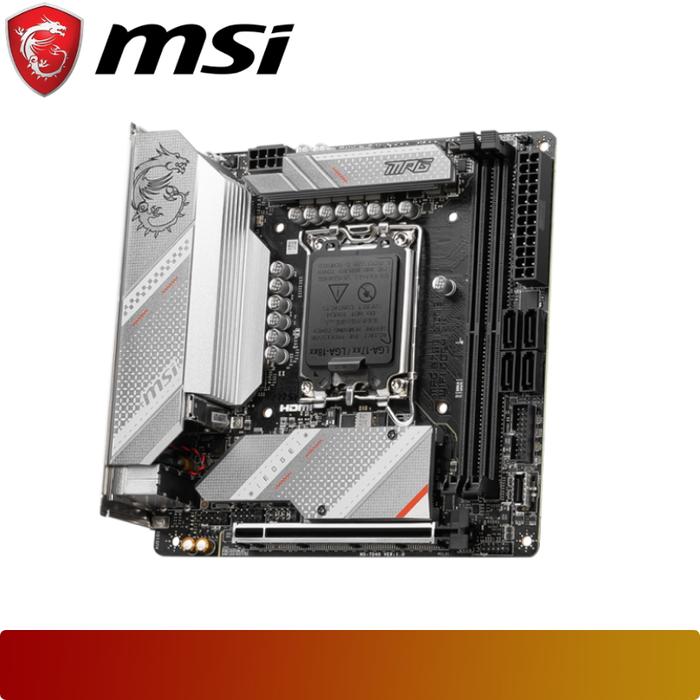

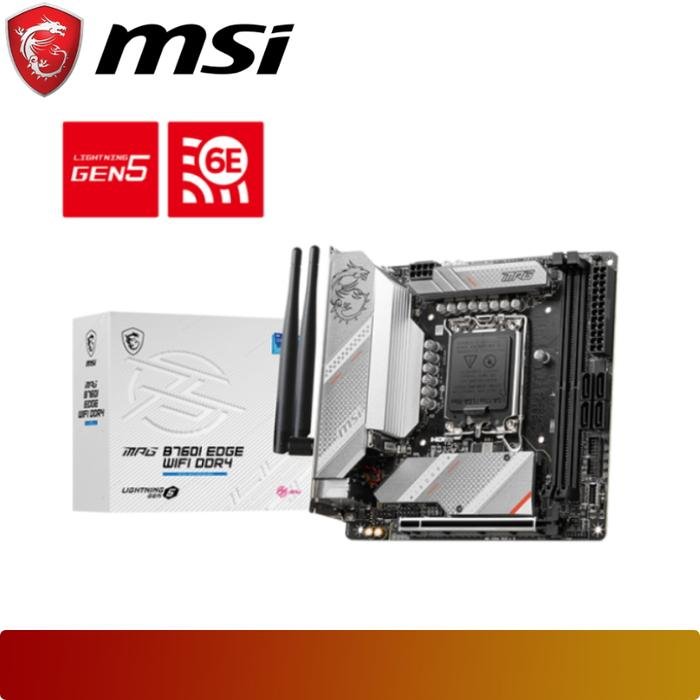

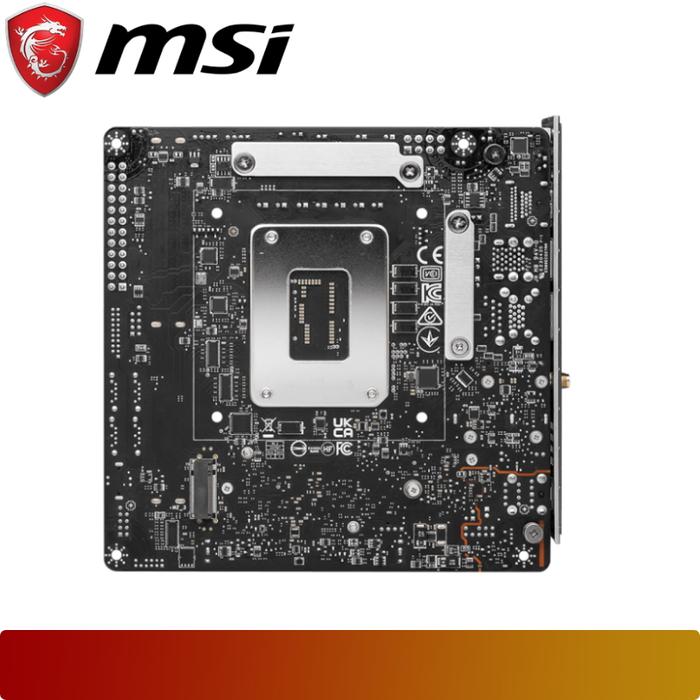

MSI MPG B760I EDGE WIFI DDR4 | Intel B760 LGA 1700 Mini ITX

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

CHIPSET
- INTEL B760

CPU SUPPORT
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700

MEMORY
- 2x DDR4, Maximum Memory Capacity 64GB
- Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ - 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)
- Max. overclocking frequency:
- • 1DPC 1R Max speed up to 5333+ MHz
- • 1DPC 2R Max speed up to 4800+ MHz

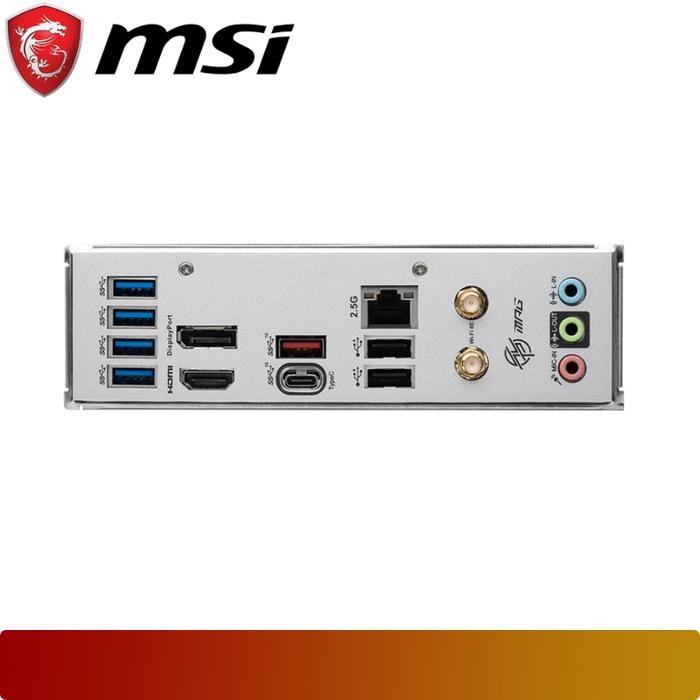

ONBOARD GRAPHICS
- 1x HDMI™
- Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
- 1x DisplayPort
- Support DP 1.4, maximum resolution of 8K 60Hz*

EXPANSION SLOT
- 1x PCI-E x16 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

STORAGE
- 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
- 4x SATA 6G

LAN
- Realtek® RTL8125BG 2.5Gbps LAN

WIRELESS / BLUETOOTH
- Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3, FIPS, FISMA

AUDIO
- Realtek® ALC897 Codec
- 7.1-Channel USB High Performance Audio

OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION
- Mini-ITX
- 170mmx170mm
