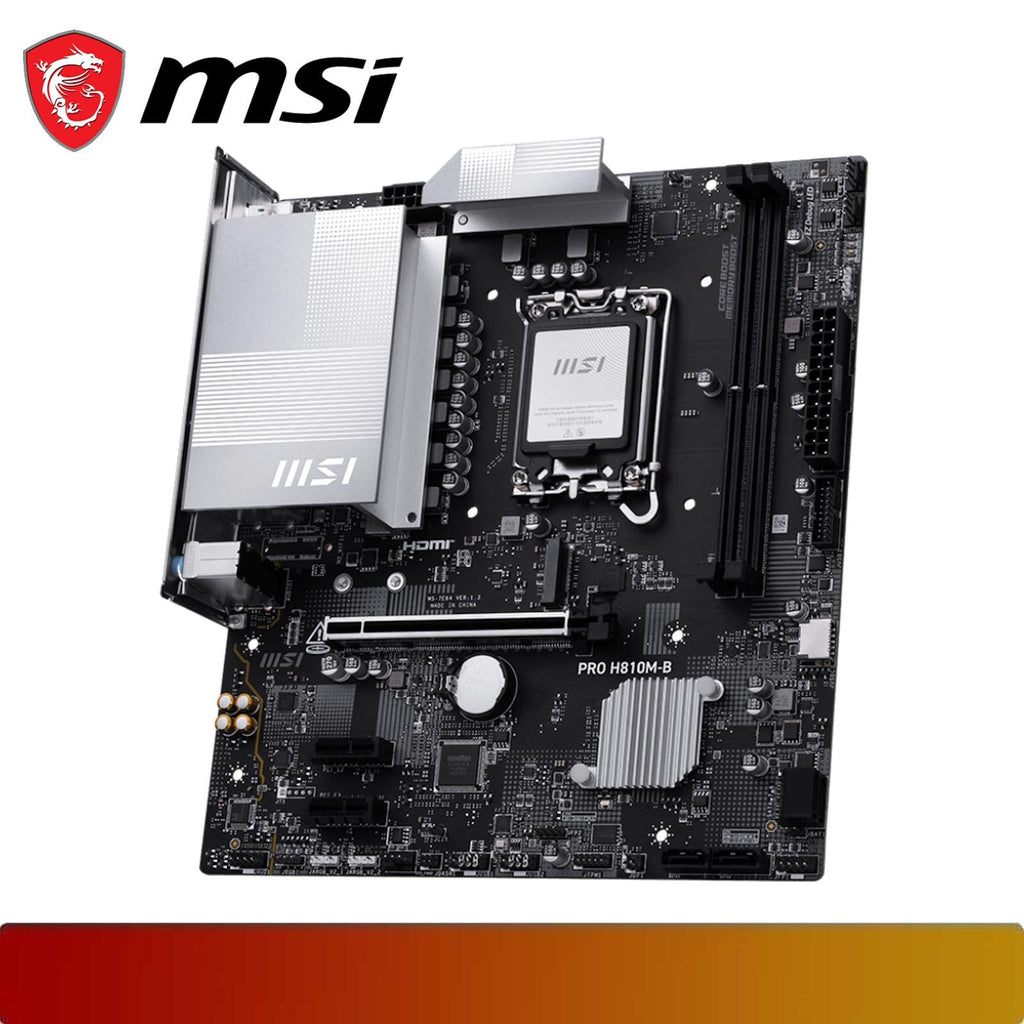

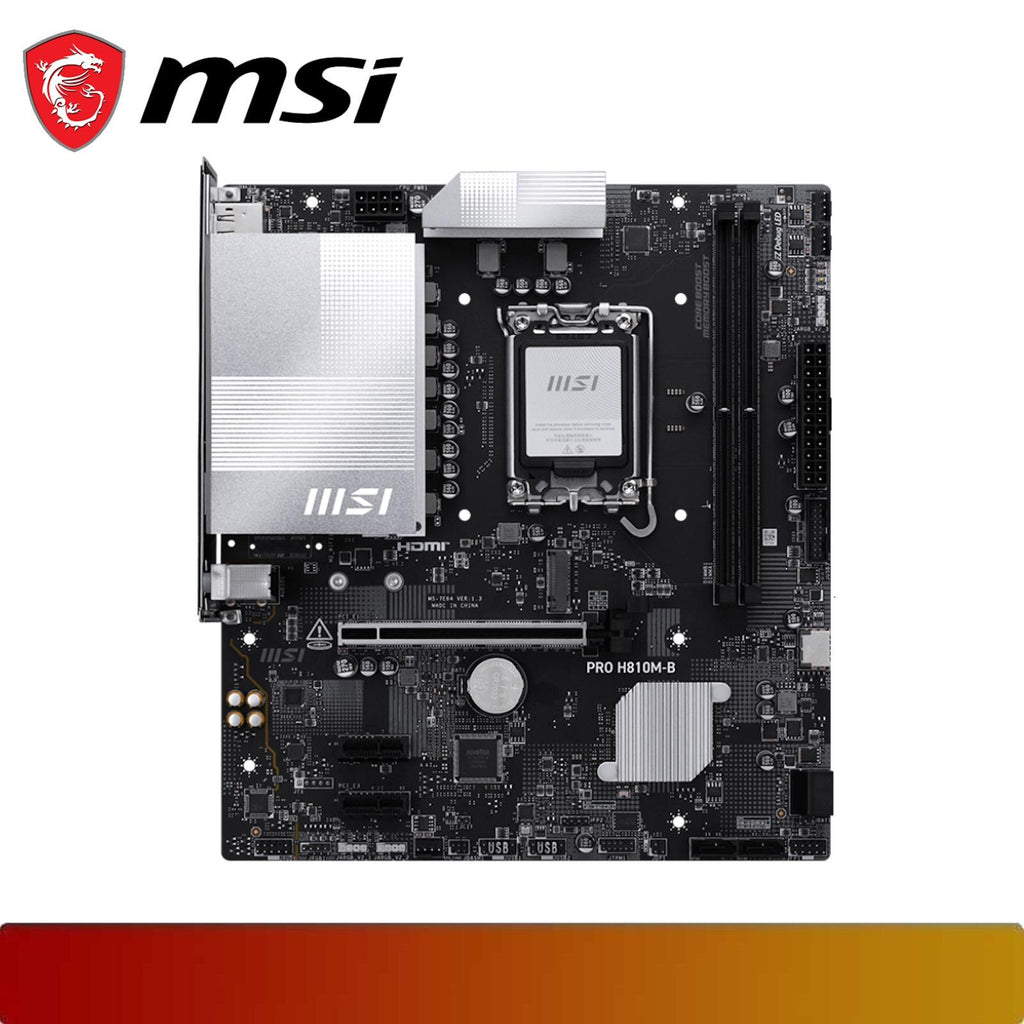

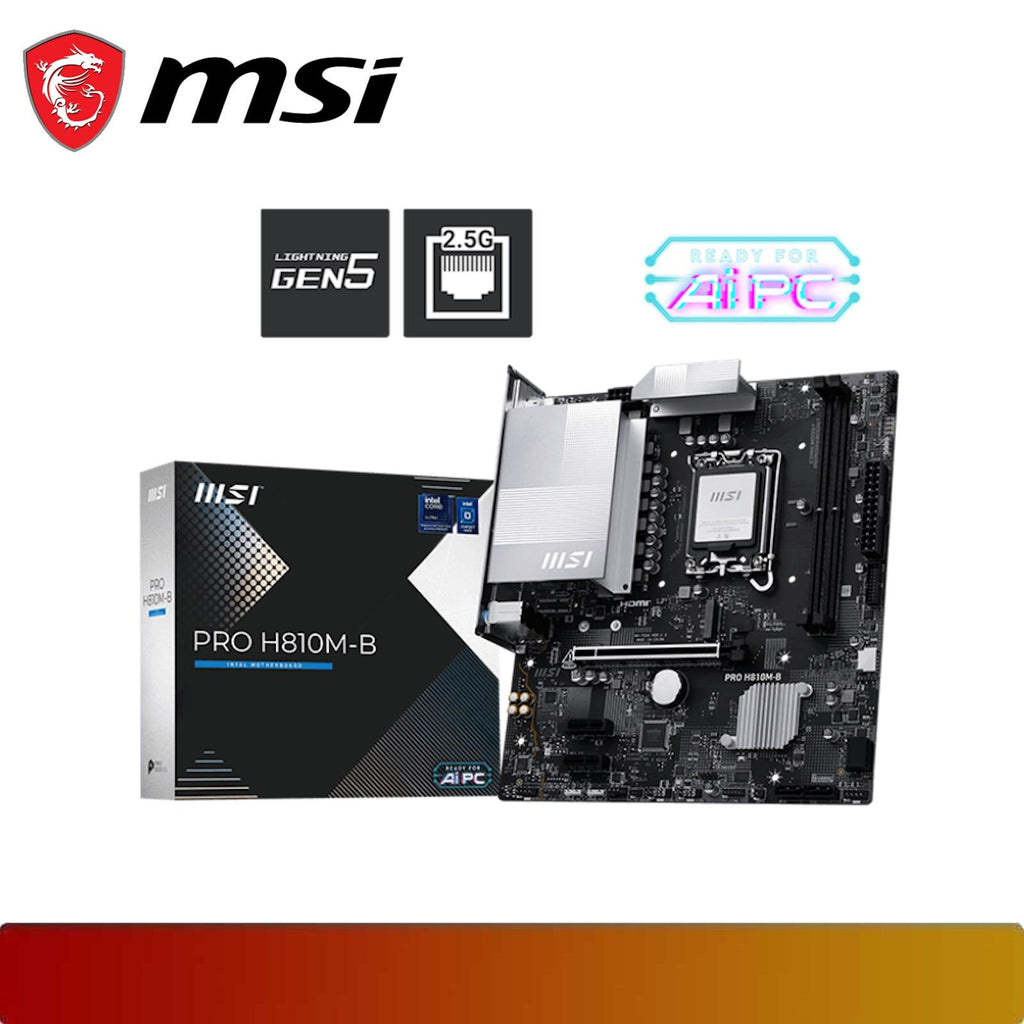

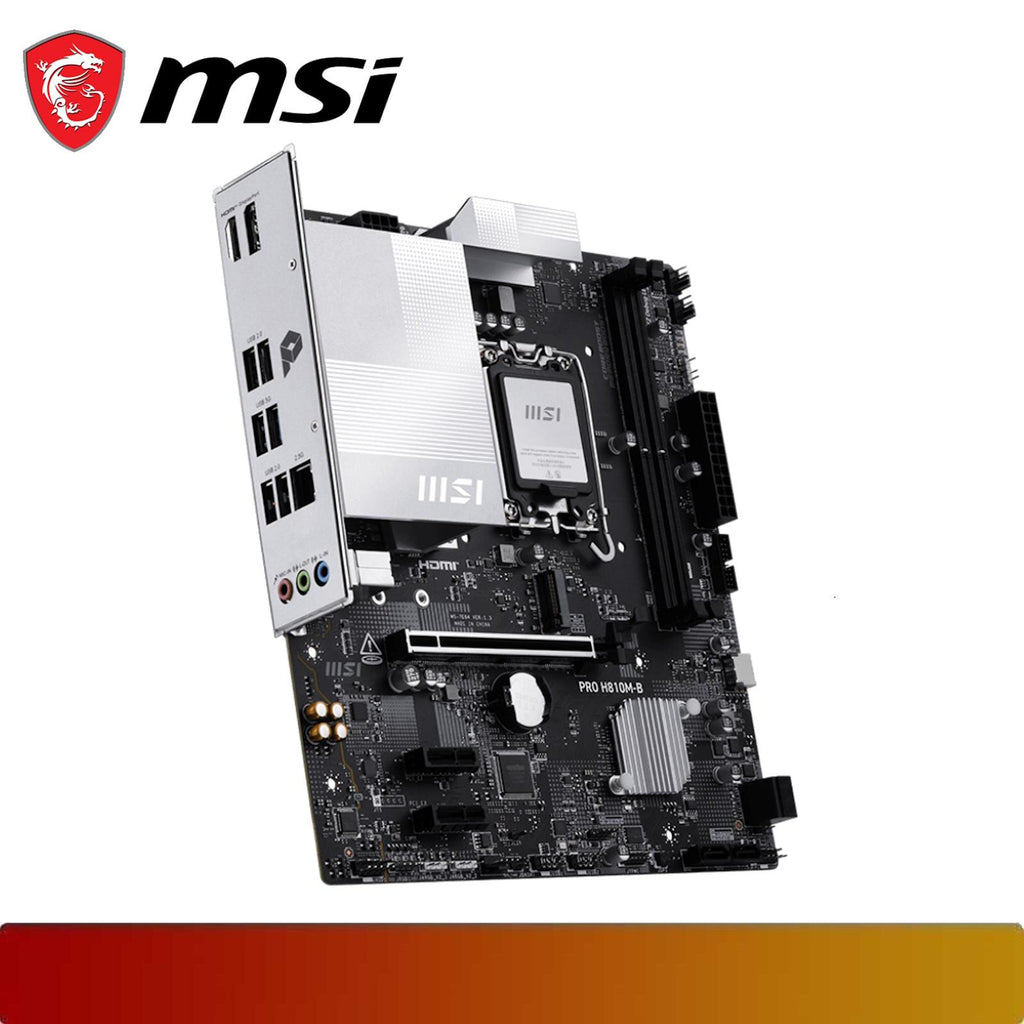

MSI PRO H810M-B | Motherboard Intel H810 LGA 1851 DDR5 mATX

Specification :

Chipset
- INTEL H810

CPU
- Supports Intel Core Ultra Processors (Series 2)
- LGA 1851

Memory
- 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
- Memory Support DDR5 6400 - 4800 (JEDEC) MT/s

Onboard Graphics
- 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
- 1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

Slot
- 1x PCI-E x16 slot
- 2x PCI-E x1 slot

Audio
- Realtek ALC897 Codec
- 7.1-Channel High Definition Audio

Storage
- 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 4x SATA 6G

USB
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)
- 1x USB 10Gbps Type C (Front)

LAN
- Realtek 8125 2.5Gbps LAN

Internal IO
- 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x CPU Fan
- 2x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Tuning Controller connector(JDASH)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 5Gbps Type A ports
- 1x USB 10Gbps Type C ports

LED FEATURE
- 4x EZ Debug LED
- 1x EZ Memory Detection LED

OPERATING SYSTEM
- Support for Windows 11 64-bit

PCB Info
- mATX
- 220mmx243.84mm
